0
AP34078

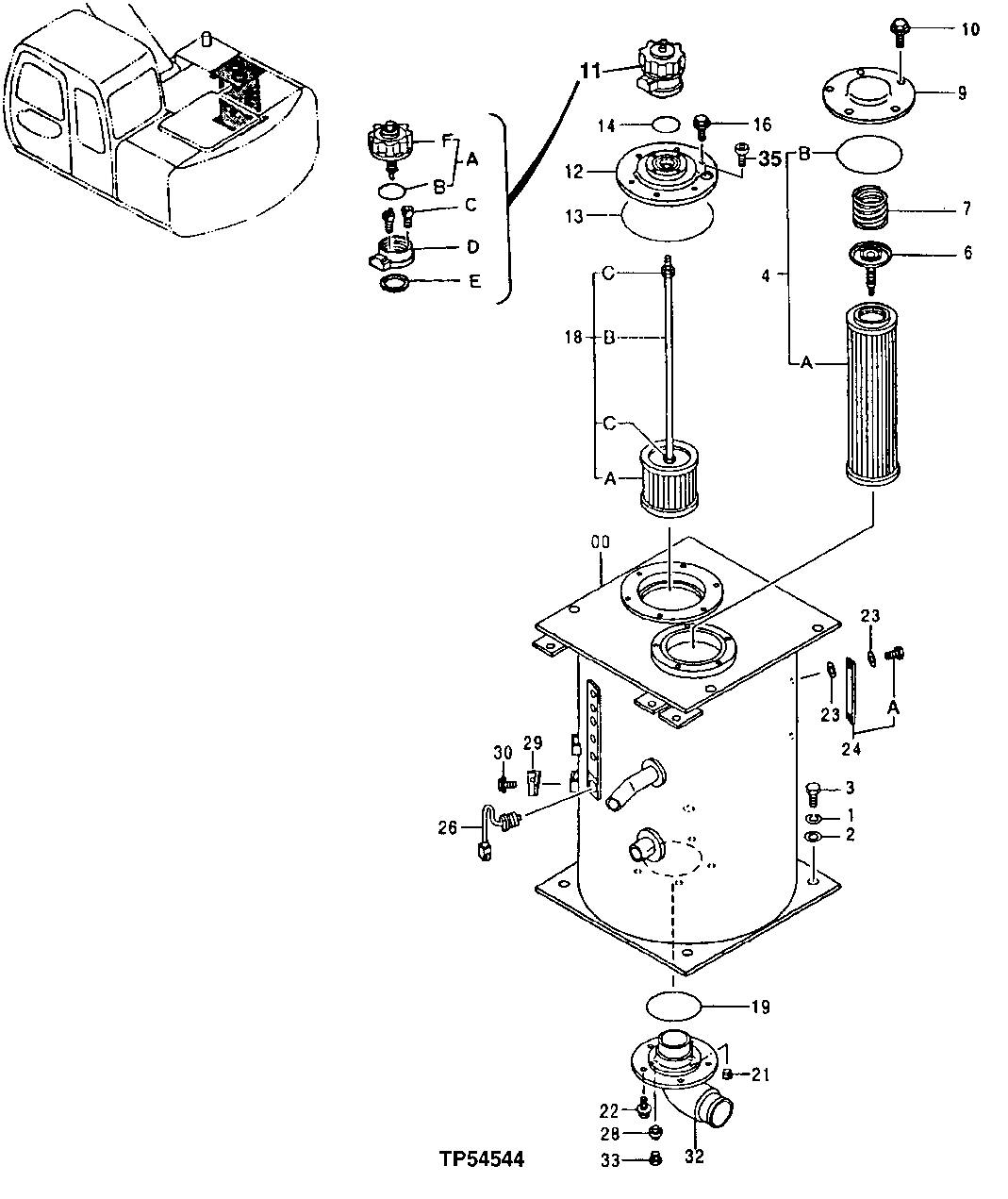

Hydraulic Reservoir
1шт.
1
12H294
Lock Washer
5/8"
4шт.
2
24M7338
Washer
17 X 30 X 3 mm
4шт.
3
19M7488
Cap Screw
M16 X 40
4шт.
4
AT308569
Filter Element
(ALSO ORDER AT194547) (SUB FO R TH111010 ) (SUB FOR 4227353)
1шт.
4A
Filter Element
1шт.
AT171693
Filter
Not Illustrated Clean -Up Filter Idle Speed (LIMITED USE - APPROXIM ATELY 3 HOURS) (ALSO ORDER CH17213 )
1шт.
4B
CH17213
Packing
1шт.
6
4065280
Flow Control Hyd. Valve
(SUB FOR TH101887)
1шт.
7
4109393
Spring
(SUB FOR TH101883)
1шт.
9
4264508
Cover
(SUB FOR AT154296)
1шт.
10
19M3142
Cap Screw
M10 X 18
5шт.
12M7066
Lock Washer
10 mm
5шт.
11
Breather
1шт.
11A
4326285
Cap
(SUB FOR AT167080)
1шт.
11B
T162516
O-Ring
1шт.
11C
19M8146
Screw
M5 X 16
1шт.
11D
4222875
Base
(SUB FOR TH111021)
1шт.
11E
4222876
Packing
(SUB FOR TH111022)
1шт.
11F
4251384
Filter Element
(SUB FOR AT122928)
1шт.
12
8066670
Cover
(SUB FOR AT215118)
1шт.
13
TH100679
O-Ring
159.300 X 5.700 mm (6.272" X 0.224")
1шт.
14
CH11571
Packing
1шт.
16
19M7938
Cap Screw
M10 X 20 (SUB FOR 19M8761, APPL)
6шт.
12M7066
Lock Washer
10 mm
6шт.
18
Filter
( AT154233 NLA)
1шт.
18A
4285577
Strainer
(SUB FOR AT154383)
1шт.
18B
4285578
Rod
(SUB FOR AT154384)
1шт.
18C
14M7274
Nut
M10
3шт.
19
TH102793
O-Ring
129.600 X 5.700 mm (5.102" X 0.224")
1шт.
21
942011
Fitting Plug
(SUB FOR 94-2011 AND TH100434)
1шт.
22
19M7402
Cap Screw
M10 X 25 (SUB FOR 19M7662, APPL)
5шт.
12M7066
Lock Washer
10 mm
5шт.
23
449558
Washer
(SUB FOR TH100675)
4шт.
24
8053499
Level Gauge
(SUB FOR TH108293)
1шт.
24A
4100967
Bolt
(SUB FOR TH101894)
2шт.
26
4259787
Switch
(SUB FOR AT154937)
1шт.
28
4250261
Gasket
(SUB FOR AT154922)
1шт.
29
4257159
Bracket
(SUB FOR AT154243)
1шт.
30
19M7938
Cap Screw
M10 X 20 (SUB FOR 19M8324, APPL)
1шт.
12M7066
Lock Washer
10 mm (SUB FOR 12M7067, APPL)
1шт.
32
2038156
Line
(SUB FOR AT176388)
1шт.
33
4364696
Fitting Plug
(SUB FOR P61607)
1шт.
35
4209653
Fitting Plug
(SUB FOR TH109514)
1шт.
36
AT194547
O-Ring
1шт.
