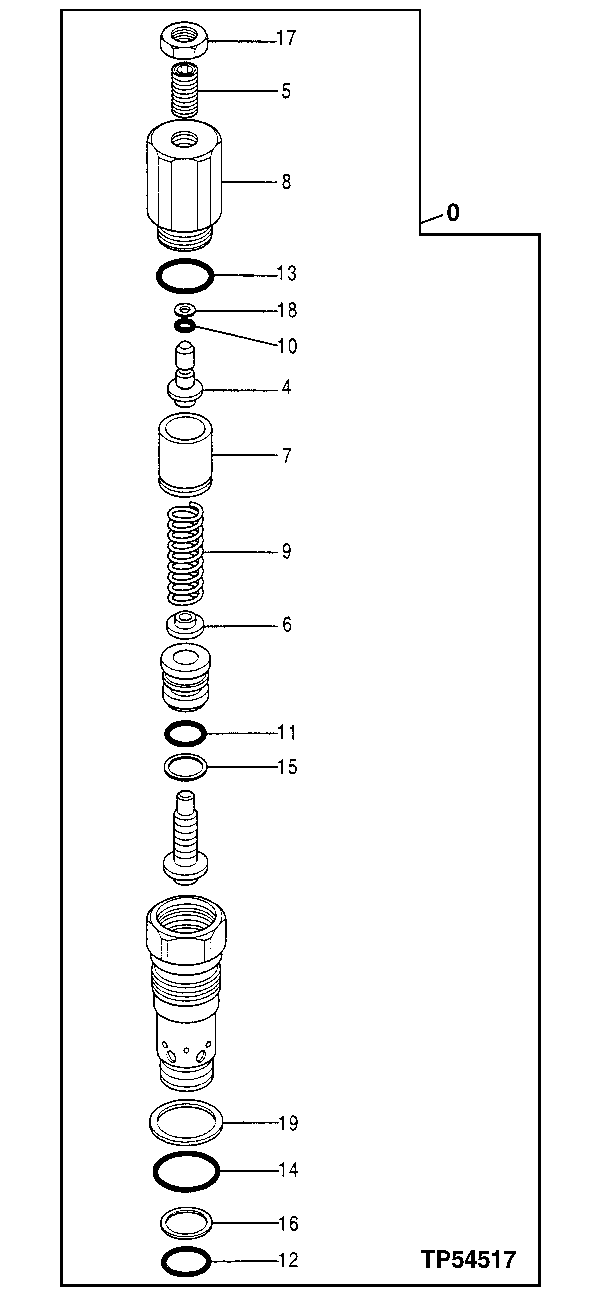

Запчасти John Deere 10 335 - RELIEF VALVE 4360 Hydraulics

0

4373201

Pressure Relief Valve

(SUB FOR AT215983)

1шт.

4

0669002

Valve Seat

(SUB FOR AT215722)

1шт.

5

0669003

Screw

(SUB FOR AT215723)

1шт.

6

0669004

Valve Seat

(SUB FOR AT215724)

1шт.

7

0669005

Spacer

(SUB FOR AT215725)

1шт.

8

0669006

Fitting Plug

(SUB FOR AT215726)

1шт.

9

0669007

Spring

(SUB FOR AT215727)

1шт.

10

4050481

O-Ring

3.800 X 1.900 mm (0.150" X 0.075") (SUB FOR TH100786)

1шт.

11

CH10569

Packing

1шт.

12

R375R

O-Ring

15.545 X 2.616 mm (0.612" X 0.103")

1шт.

13

CH12329

Packing

1шт.

14

H35237

O-Ring

23.470 X 2.616 mm (0.924" X 0.103")

1шт.

15

0669008

Back-Up Ring

(SUB FOR AT215728)

1шт.

16

0230908

Back-Up Ring

(SUB FOR TH104755)

1шт.

17

14M7444

Nut

M10

1шт.

18

0669009

Back-Up Ring

(SUB FOR AT215729)

1шт.

19

0605401

Back-Up Ring

(SUB FOR AT165707)

1шт.
