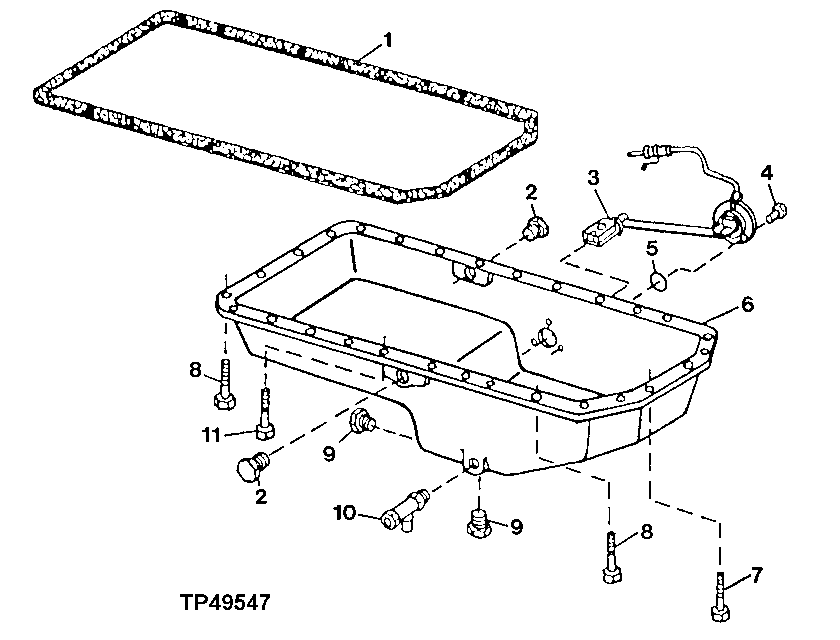

Запчасти John Deere 10 36 - Oil Pan (026650 - ) 0407A Engine Oiling System 4045TP052 4045TP052

1

R123353

Gasket

1шт.

2

RE46687

Drain Plug

2шт.

3

RE16223

Sensor

Engine Oil Level

1шт.

4

19M8425

Cap Screw

M6 X 16

3шт.

5

R47154

O-Ring

1шт.

6

R121622

Oil Pan

1шт.

7

19M7868

Screw

M8 X 30

4шт.

8

19M7867

Cap Screw

24шт.

9

RE46685

Fitting Plug

2шт.

10

RE507952

Drain Valve

(SUB FOR RE59579, APPL)

1шт.

11

19M7799

Plug

4шт.
