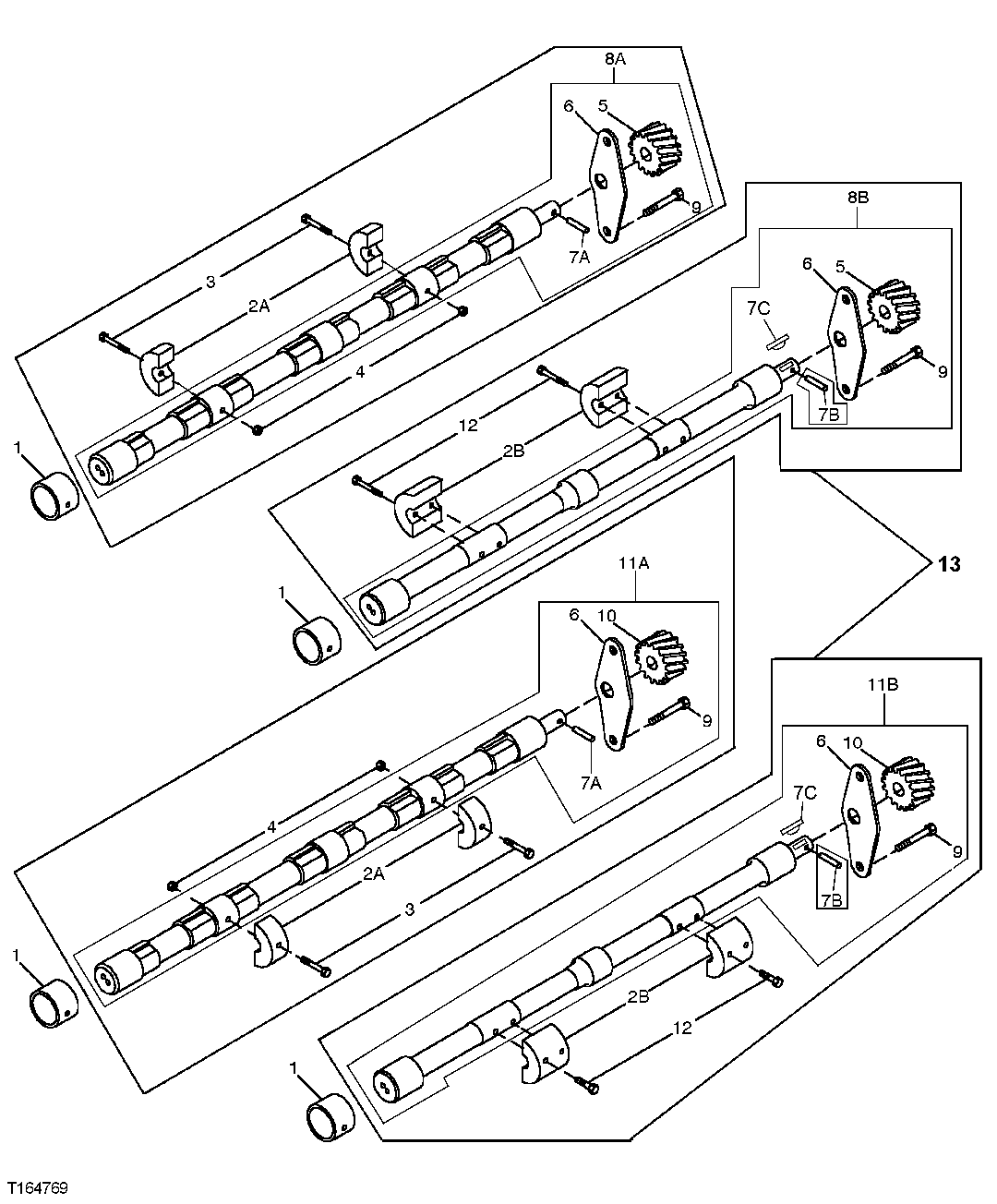

Запчасти John Deere 20 100 - BALANCER SHAFT (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

1

R115299

Bushing

6шт.

2A

R134358

Weight

(SUB R500650)

4шт.

2B

R500650

Weight

4шт.

3

T28745

Bolt

4шт.

4

T15634

Nut

4шт.

5

Gear

(15 TEETH)

1шт.

6

Plate

2шт.

7A

26M4224

Shaft Key

4 X 16 mm

2шт.

7B

34M7089

Dowel Pin

4 X 12 mm

1шт.

8A

RE69365

Balancer Shaft

(MARKED R115301 ) (SUB RE504742) L.H. SHAFT

1шт.

8B

RE500449

Balancer Shaft

1шт.

9

19M8998

Screw

M8 X 12

4шт.

10

Gear

1шт.

11A

RE69364

Balancer Shaft

(MARKED R116078 ) (SUB RE504742) R.H. SHAFT

1шт.

11B

RE500448

Balancer Shaft

1шт.

12

19M8882

Screw

M8 X 40

8шт.

13

RE504742

Balancer Kit

1шт.
