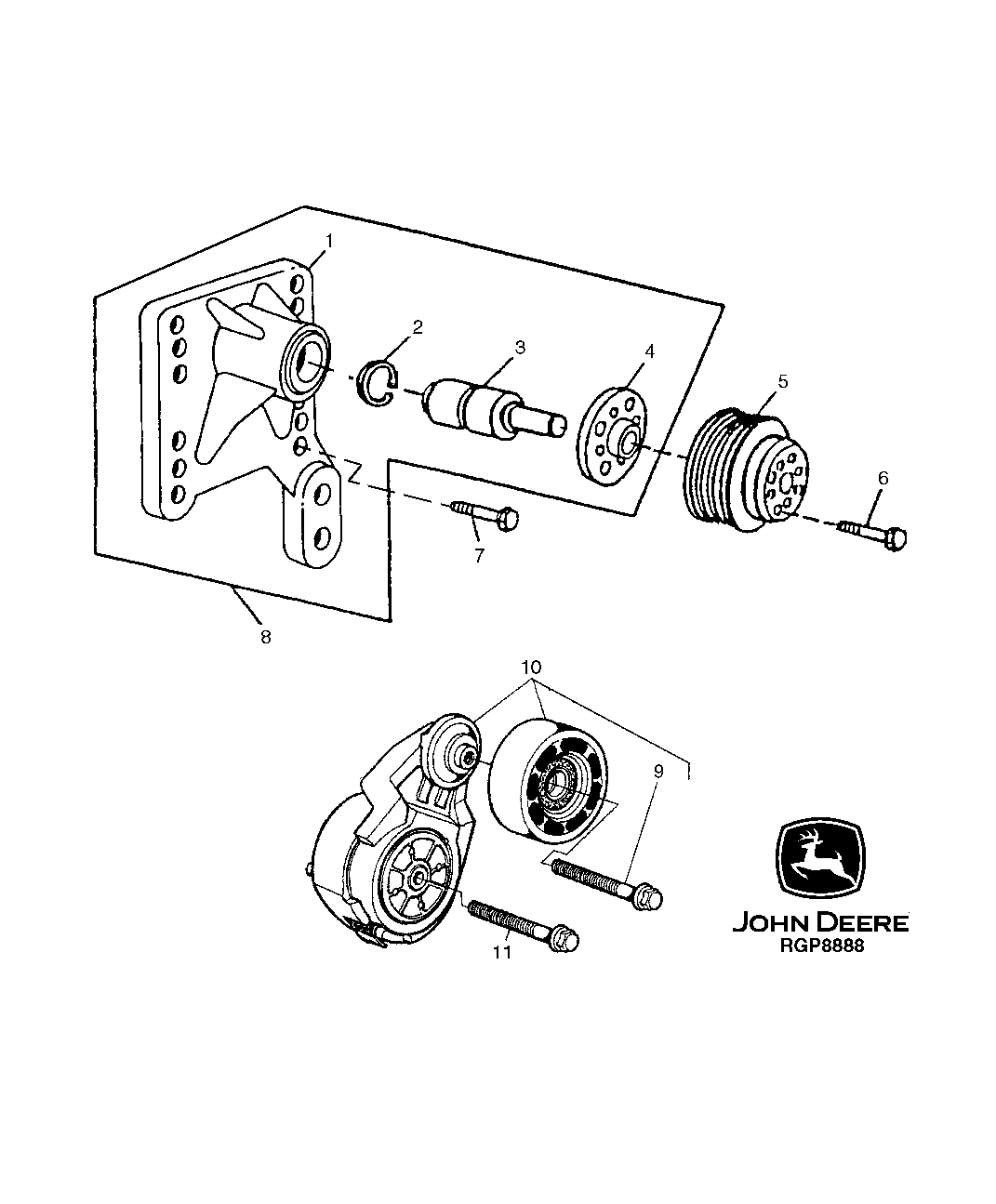

Запчасти John Deere 20 66 - FAN DRIVE SUPPORTS, BELT TENSIONER 0400A Engine 4045HP051-RE508144 4045HP051

1

Bearing Housing W/ Bearing

(MARKED R500598 ) (ORDER RE500539)

1шт.

2

E1343FN

Snap Ring

(USE WITH RE503664)

1шт.

H80753

Snap Ring

(USE WITH RE500539)

1шт.

3

Shaft

1шт.

4

Hub

1шт.

Hub

1шт.

5

R128662

Pulley

1шт.

6

19M7784

Screw

M10 X 20

4шт.

7

19M7835

Screw

M10 X 35

4шт.

8

RE503664

Support

(MARKED R502014)

1шт.

RE500539

Fan Drive

(MARKED R500304)

1шт.

9

R503813

Bolt

1шт.

10

RE70536

Belt Tensioner

(SUB THIS APPLICATION RE518097 , 24M7106 , 19M818 ,AND R518210)

1шт.

11

19M8131

Screw

M10 X 70 (USE WITH RE70536)

1шт.
