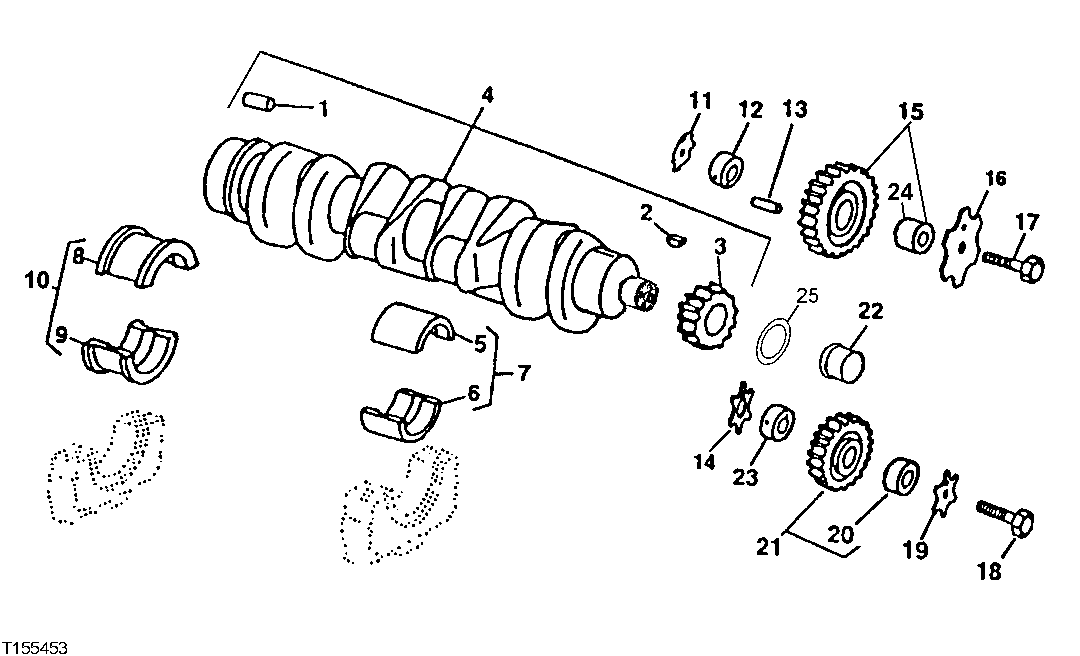

Запчасти John Deere 20 74 - CRANKSHAFT, GEAR AND MAIN BEARINGS (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

1

R48685

Dowel Pin

1шт.

2

26M4224

Shaft Key

4 X 16 mm (USE WITH RE50618)

1шт.

R505609

Shaft Key

(USE WITH RE504638)

1шт.

3

R120631

Gear

(30 TEETH)

1шт.

4

RE50618

Crankshaft

(MARKED R113596 ) (SUB RE504638 A ND RE516340 ) (ALSO ORDER RE59811)

1шт.

RE504638

Crankshaft

(MARKED R113596 ) (ALSO ORDER RE516340)

1шт.

SE501654

Crankshaft Reman

(A) REMAN FOR RE504638

1шт.

5

Bearing

254 MM, (MARKED R130575)

4шт.

6

Bearing

4шт.

7

RE65165

Bearing Kit

STANDARD

4шт.

RE65911

Bearing

254 MM

4шт.

8

Bearing

1шт.

Bearing

1шт.

9

Bearing

1шт.

Bearing

1шт.

10

RE65168

Bearing Kit

STANDARD

1шт.

RE65912

Thrust Bearing

254 MM

1шт.

11

R123174

Lock Washer

1шт.

12

R120641

Shaft

UPPER

1шт.

13

34H288

Spring Pin

3/16" X 1-3/4"

1шт.

14

R101225

Thrust Washer

1шт.

15

RE56313

Gear

1шт.

16

R131206

Thrust Washer

1шт.

17

19M8997

Screw

M10 X 65

1шт.

18

19M8966

Screw

M10 X 50

1шт.

19

R131283

Thrust Washer

1шт.

20

R114193

Bushing

1шт.

21

RE56369

Gear

1шт.

22

RE59811

Sleeve

1шт.

23

R114194

Shaft

1шт.

24

Bushing

1шт.

25

RE516340

Seal

(USE WITH RE504638)

1шт.
