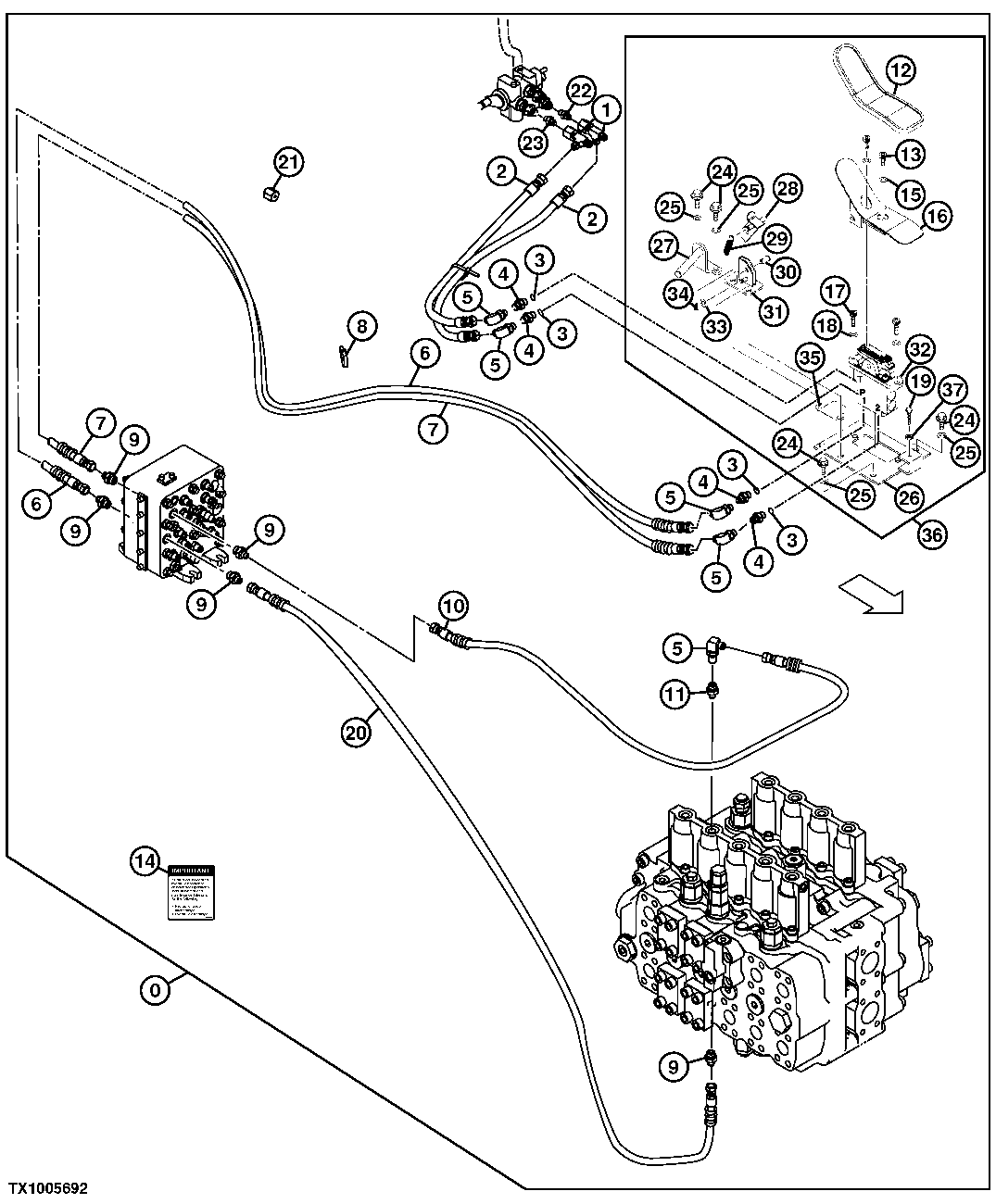

Запчасти John Deere 20C 184 - TWO-WAY HYDRAULIC FOOT PEDAL CONTROL REPLACEMENT 3315 CONTROLS LINKAGE

0

Field Installation Kit

WHOLEGOODS ( AT312422 NLA)

1шт.

1

AT36921

Tee Fitting

2шт.

2

AH108250

Hose

2шт.

3

R26448

O-Ring

4шт.

4

A852123

Adapter Fitting

4шт.

5

AE24616

Elbow Fitting

5шт.

6

AE42067

Hydraulic Hose

1шт.

7

AE42067

Hydraulic Hose

1шт.

8

H77698

Tie Band

5шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

CH11570

O-Ring

1шт.

10

AT68901

Hydraulic Hose

1шт.

11

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

CH11570

O-Ring

1шт.

12

4283758

Cover

1шт.

13

J781020

Bolt

2шт.

14

T149434

Label

BREAKER/CRUSHER MAINTEN ANCE INTERVALS (ENGLISH)

1шт.

T222992

Label

BREAKER/CRUSHER MAINTEN ANCE INTERVALS (FRENCH)

1шт.

T222993

Label

BREAKER/CRUSHER MAINTEN ANCE INTERVALS (SPANISH)

1шт.

15

12M7066

Lock Washer

10 mm

2шт.

16

8084644

Pedal

1шт.

17

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

18

12M7066

Lock Washer

10 mm

2шт.

19

4317640

Bolt

1шт.

20

AR90081

Hydraulic Hose

1шт.

21

R31147

Fitting

(TANK PORT DRAIN LINE)

1шт.

22

4261938

Fitting

(NA)

1шт.

23

4200466

Adapter Fitting

(NA)

1шт.

24

19M7784

Screw

M10 X 20

4шт.

25

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

26

8087747

Plate

1шт.

27

8083128

Bracket

1шт.

28

8084658

Stop

1шт.

29

4279604

Spring

1шт.

30

4287795

Pin

1шт.

31

8080596

Bracket

1шт.

32

9197490

Hyd Actuated Control Valve

1шт.

33

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

34

11M7080

Cotter Pin

2.500 X 16 mm

1шт.

35

4461388

Shim

1шт.

36

9198415

Hydr./Pilot Control Valve

(NLA) (ORDER COMPONENTS)

1шт.

37

14M7273

Nut

M8

1шт.
