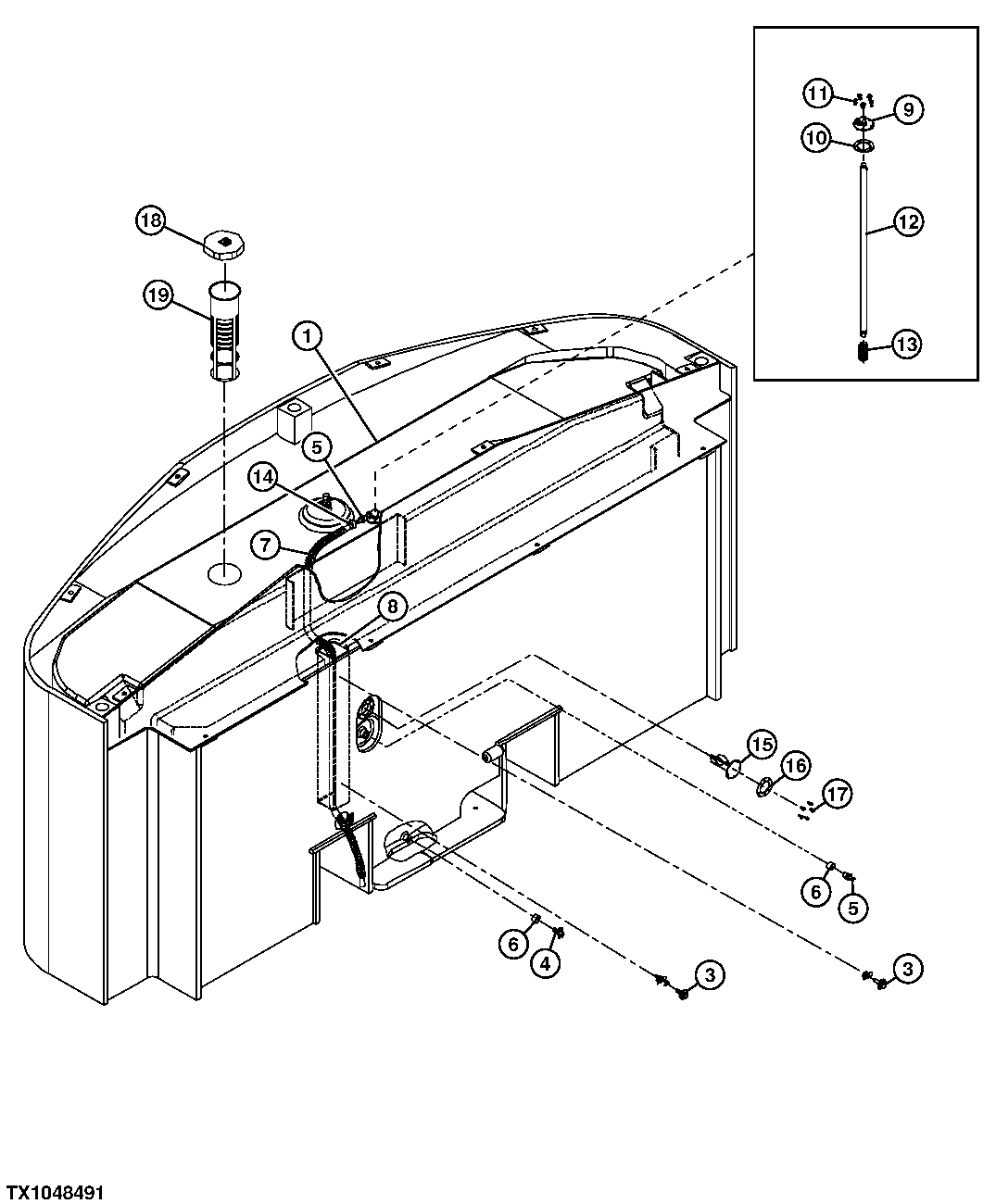

Запчасти John Deere 35C RTS 182 - FUEL TANK AND FUEL LEVEL SENDER (SN. 350023- ) 0564 FUEL TANK

1

FFSB114179

Fuel Tank

1шт.

3

19M7662

Cap Screw

M10 X 30 SUB FOR FFSB109178 OR AT153806

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

4

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

5

T103301

Hose Fitting

SUB FOR FFSB113349

2шт.

6

FFSB102829

Clamp

2шт.

7

Hose

( FFSB114194 OR FFSB114236 NLA) (FURNISH T Y22330 BULK MATERIAL CUT TO 1550 MM LENGTH)

1шт.

FFSB113622

Sleeve

(SUB FOR FFSB114194 OR FF SB114237)(1450 MM LENGTH)

1шт.

8

FFSB112354

Bracket

1шт.

9

FFSB114132

Adapter Fitting

1шт.

10

T155195

Gasket

SUB FOR FFSB113250

1шт.

11

21M7265

Screw

M5 X 12 SUB FOR FFSB107789

5шт.

12

FFSB114159

Hydraulic Hose

1шт.

13

FFSB114157

Filter Element

1шт.

14

TY22464

Clamp

SUB FOR FFSB103981

1шт.

15

4660782

Float

SUB FOR FFSB109174, FFSB10 9396 OR AT154239 OR 4257128

1шт.

16

T155195

Gasket

1шт.

17

21M7265

Screw

M5 X 12

5шт.

18

AT179586

Filler Cap

1шт.

19

AH162914

Strainer

1шт.
