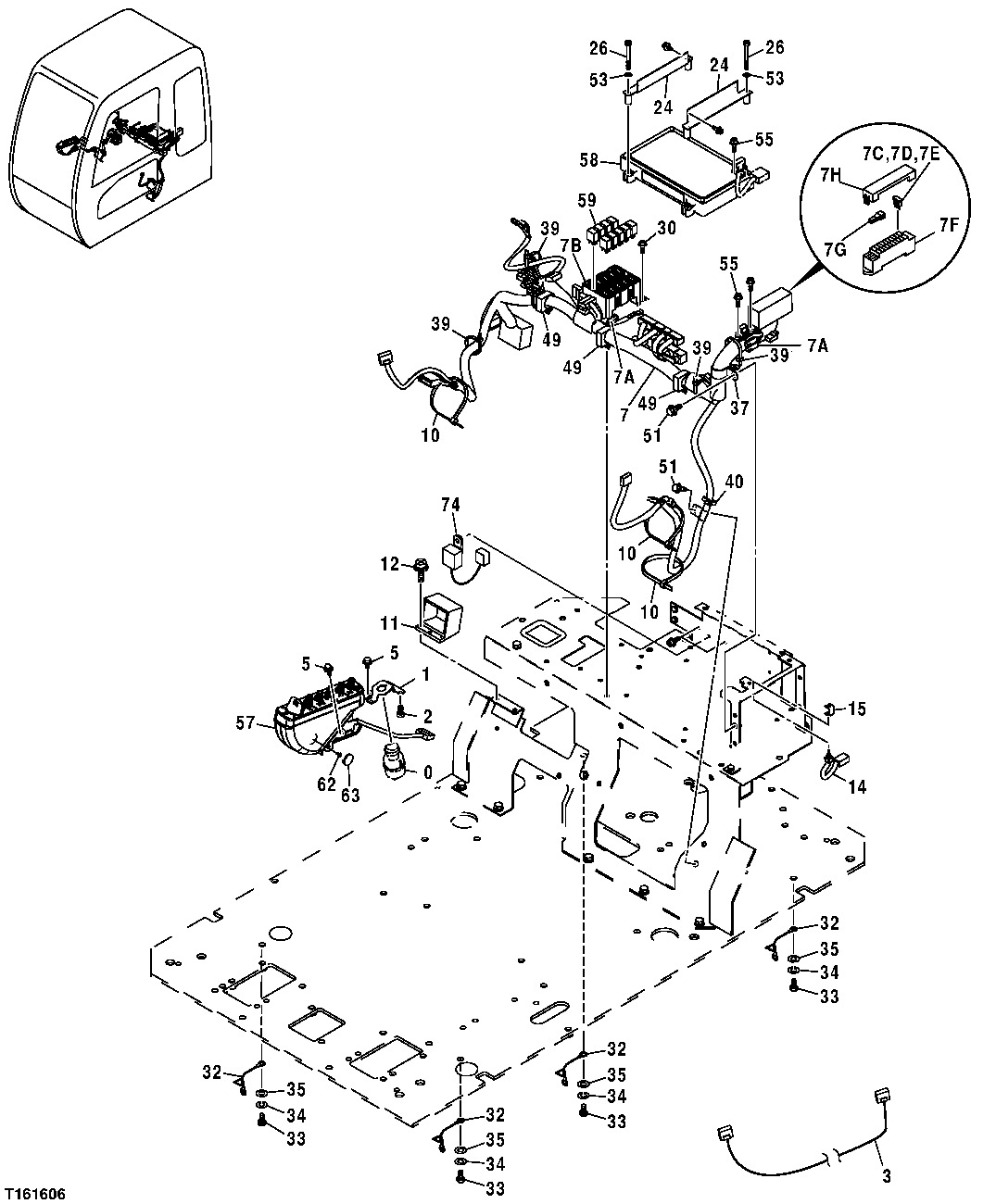

Запчасти John Deere 35C RTS 217 - CAB SWITCHES,RELAYS,FUSES AND CONTROLLERS 1674 WIRING HARNESS AND SWITCHES

0

4477373

Switch

(IGNITION)

1шт.

AT194969

Key

1шт.

1

3087882

Bracket

1шт.

2

4361800

Screw

3шт.

3

2048203

Wiring Harness

(2.75M EXTENSION)

1шт.

2048184

Wiring Harness

(4.5M EXTENSION)

1шт.

5

J010814

Screw With Washer

3шт.

7

0004069

Wiring Harness

1шт.

7A

4456778

Diode

5шт.

7B

4427429

Circuit Box

1шт.

7C

57M7688

Fuse

10шт.

7D

57M7689

Fuse

7шт.

7E

57M7691

Fuse

2шт.

7F

4460037

Fuse Box

1шт.

7G

4436737

Puller

1шт.

7H

4443490

Cover

1шт.

10

H77698

Tie Band

3шт.

11

4431090

Electrical Connector Assy

1шт.

12

Screw With Washer

( J460620 NLA)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

14

4359384

Switch

1шт.

15

4367375

Bracket

(ALSO ORDER (2) 14M7165)

1шт.

20

4191772

Resistor

Not Illustrated

1шт.

21

4379070

Strap

(GROUND STRAP) (NOT ILLU STRATED) Not Illustrated

1шт.

22

19M8425

Cap Screw

M6 X 16 Not Illustrated

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

23

4204811

Screw

Not Illustrated

1шт.

24

8082329

Bracket

2шт.

26

M430660

Screw

4шт.
