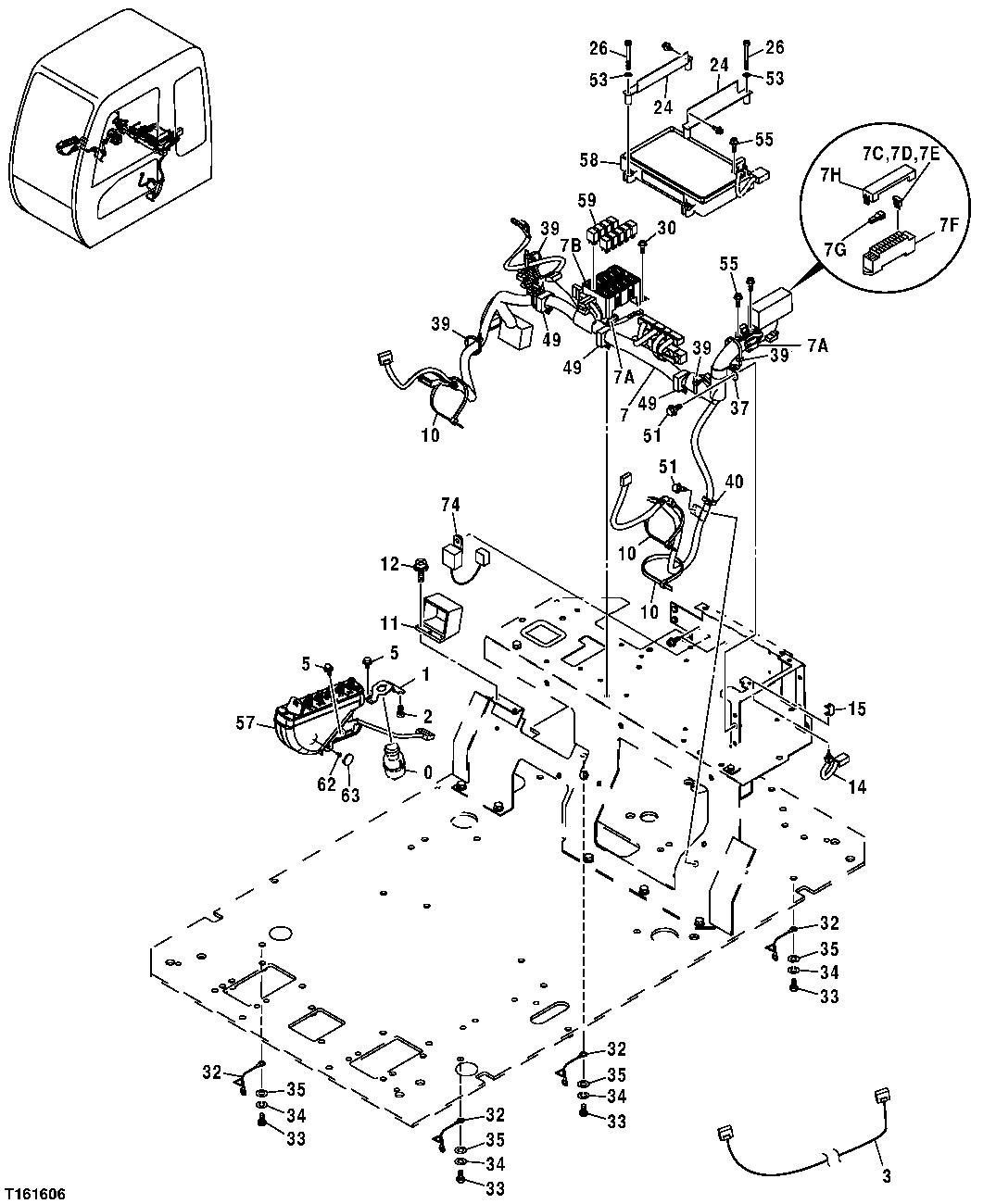

Запчасти John Deere 35C RTS 218 - CAB SWITCHES,RELAYS,FUSES AND CONTROLLERS 1674 WIRING HARNESS AND SWITCHES

30

Screw With Washer

( J460620 NLA) Starter

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

32

4281293

Ground Cable

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

37

XCL-29

Hose Clamp

(SUB FOR 4193848)

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

1шт.

47

19M7932

Cap Screw

M8 X 16 Not Illustrated

2шт.

12M7056

Lock Washer

8 mm

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

49

4449019

Clip

3шт.

51

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

53

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

55

Screw

4шт.

21M7394

Screw

M3 X 10

4шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

4шт.

12H233

Lock Washer

1/8"

4шт.

56

4384758

Switch

Travel Alarm Not Illustrated

1шт.

57

4454518

Control Console

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

58

9226764

Vehicle Controller

(SUB FOR 4452337)

1шт.

59

4436534

Relay

11шт.

61

Screw With Washer

( J460620 NLA) Not Illustrated

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

62

4381572

Screw

1шт.

63

4426354

Cap

1шт.

67

4190275

Clamp

(NOT ILLUSTRATED)

1шт.

68

AT121321

Hose Clamp

Not Illustrated

1шт.

74

AT195741

Relay

(WITH RELAY, ALTERNATOR)

1шт.
