236 - VALVE IN HEAD WIRING HARNESS BRACKET (UPPER BOOM)

Запчасти John Deere 35C RTS 236 - VALVE IN HEAD WIRING HARNESS BRACKET (UPPER BOOM) 1674 WIRING HARNESS AND SWITCHES

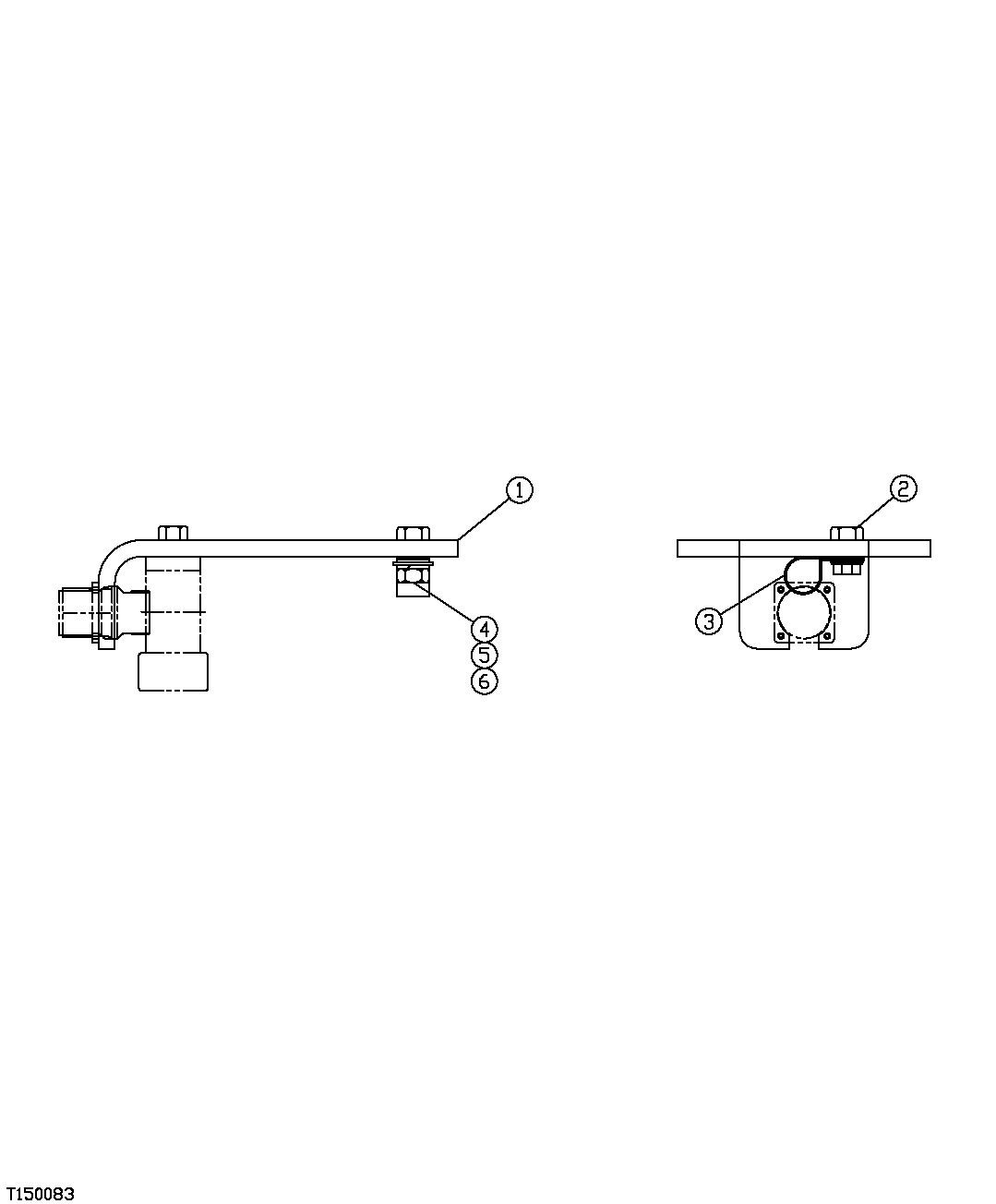

Схема запчастей John Deere 35C RTS - 236 - VALVE IN HEAD WIRING HARNESS BRACKET (UPPER BOOM) 1674 WIRING HARNESS AND SWITCHES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB108724

Bracket

1шт.

2

14M7274

Nut

M10 (SUB FOR FFSB106074 ) (SUB FOR 14M7294)

1шт.

3

F053301

Holder

(SUB FOR FFSB102835)

1шт.

4

19M7167

Cap Screw

M10 X 25 (SUB FOR FFSB108726)

1шт.

5

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

1шт.

6

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

8шт.
