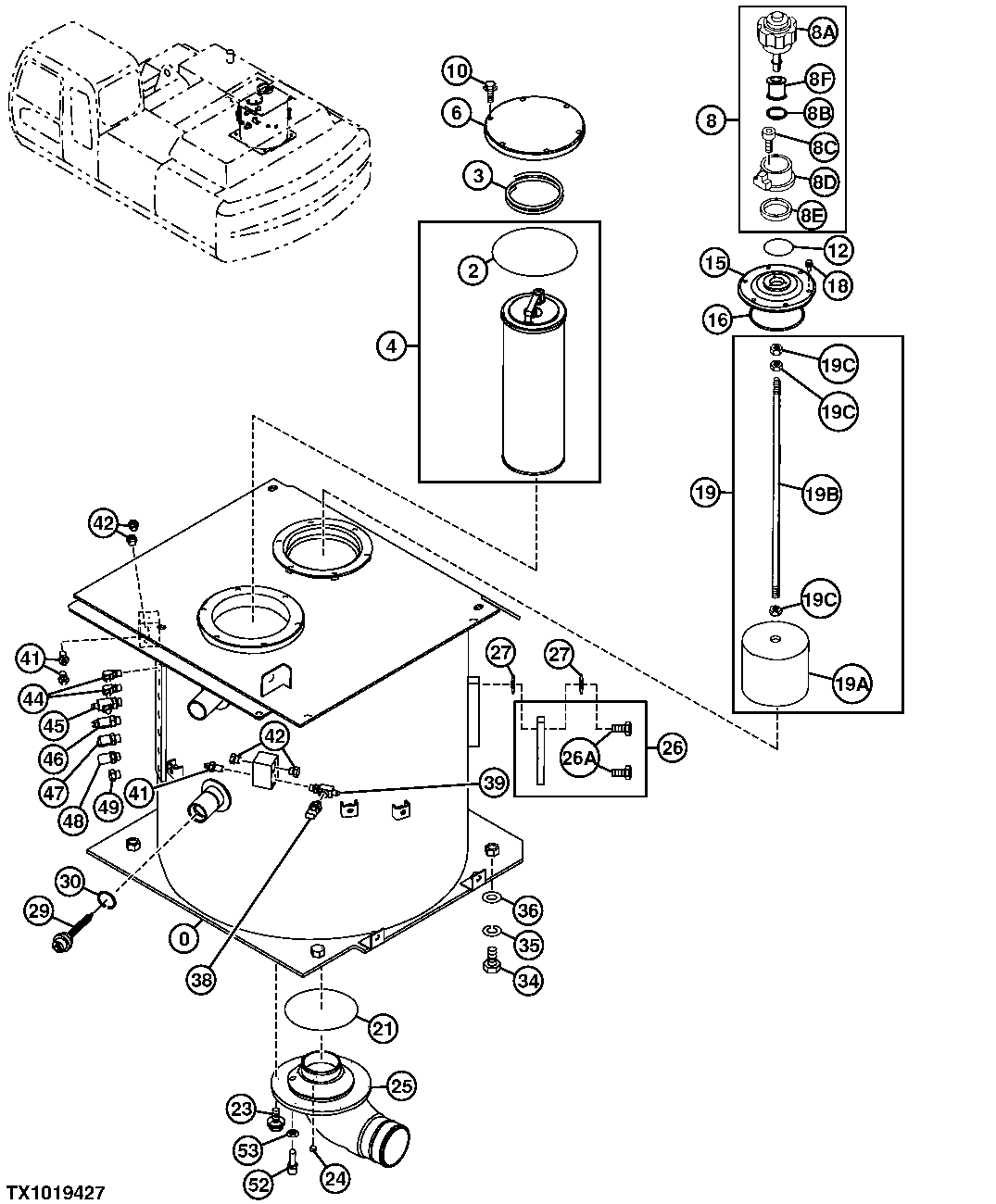

Запчасти John Deere 35C RTS 445 - HYDRAULIC OIL RESERVOIR 2160 VEHICLE HYDRAULICS

0

5007082

Tank

1шт.

2

T110444

O-Ring

1шт.

3

4472673

Spring

1шт.

4

FYA00033065

Filter

SUB FOR 4448402 OR FYA00016055

1шт.

Filter Element

Short Term Use - Approximately Thr ee Hours Cleanup Filter Idle Speed

1шт.

6

4440802

Cover

SUB FOR TH4440802

1шт.

8

Breather

AT167079 NLA Air

1шт.

8A

4326285

Cap

SUB FOR AT167080

1шт.

8B

953612

O-Ring

SUB FOR TH111019

1шт.

8C

19M8146

Screw

M5 X 16

3шт.

8D

4222875

Base

SUB FOR TH111021

1шт.

8E

4222876

Packing

SUB FOR TH111022

1шт.

8F

4251384

Filter Element

1шт.

10

19M7550

Cap Screw

M10 X 35

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

12

CH11571

Packing

1шт.

15

8084816

Cover

1шт.

16

TH100679

O-Ring

1шт.

18

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

19

Filter Element

4385915 NLA; SUB FOR TH4385915

1шт.

19A

4210224

Strainer

1шт.

19B

4404517

Stud

1шт.

19C

14M7274

Nut

M10

3шт.

21

TH100679

O-Ring

1шт.

23

19M7662

Cap Screw

M10 X 30

6шт.

24

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

25

2045864

Line

1шт.

26

8053499

Level Gauge

1шт.

26A

4100967

Bolt

2шт.

27

449558

Washer

SUB FOR TH100675

4шт.

29

4387143

Flow Control Hyd. Valve

SUB FOR AT250440

1шт.

30

40M7225

Snap Ring

1шт.

34

J921850

Bolt

SUB FOR THJ921850

4шт.

35

J257218

Lock Washer

SUB FOR AT250277

4шт.

36

24M7353

Washer

20 X 34 X 3 mm

4шт.

38

4436535

Sensor

1шт.

39

AT318023

Tee Fitting

SUB FOR 4364784

1шт.

39A

M800650

Packing

Not Illustrated

1шт.

41

AT318019

Adapter Fitting

SUB FOR 4255792 OR AT213811

3шт.

41A

M800650

Packing

Not Illustrated

1шт.

42

A885002

Plug

2шт.

42A

M800650

Packing

Not Illustrated

1шт.

44

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

2шт.

44A

M800650

Packing

Not Illustrated

1шт.

45

4239713

Tee Fitting

SUB FOR AT127700

1шт.

45A

CH11570

O-Ring

Not Illustrated

1шт.

46

A852433

Tee Fitting

1шт.

46A

CH11570

O-Ring

Not Illustrated

1шт.

47

A852334

Elbow Fitting

SUB FOR THA852334

1шт.

47A

CH11570

O-Ring

Not Illustrated

1шт.

48

A852332

Elbow Fitting

1шт.

48A

CH11570

O-Ring

Not Illustrated

1шт.

49

A885003

Pipe Plug

1шт.

49A

CH11570

O-Ring

Not Illustrated

1шт.

52

4250260

Sensor

SUB FOR AT154921

1шт.

53

4250261

Gasket

SUB FOR AT154922

1шт.
