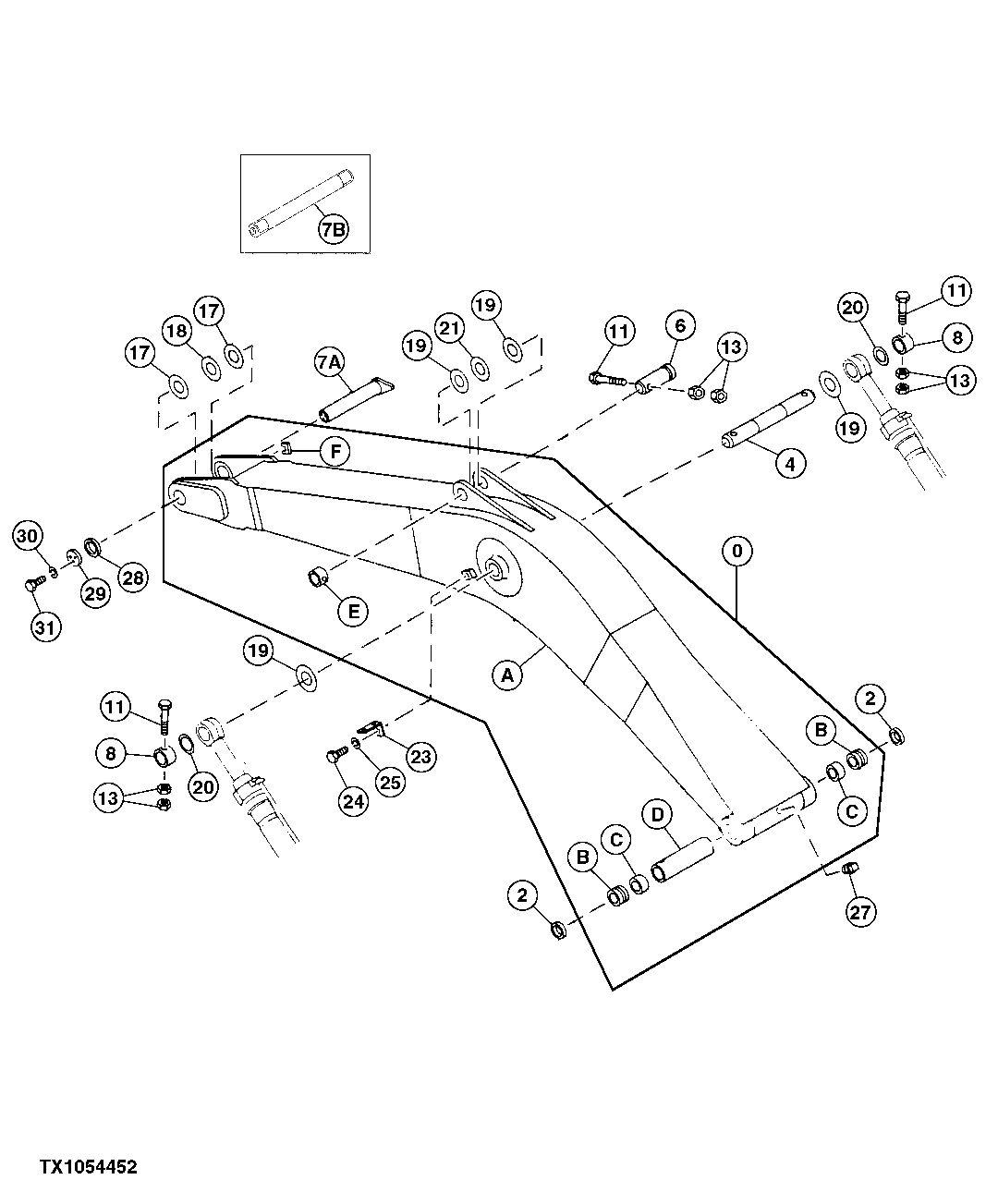

Запчасти John Deere 35C RTS 481 - EXCAVATOR BOOM ASSEMBLY, BUSHINGS AND PINS 3344 BOOMS

0

7030770

Excavator Boom

(MUST ALSO ORDER BUSHINGS AND SEALS)

1шт.

0A

Excavator Boom

1шт.

0B

4443884

Bushing

(SUB FOR 4381854)

2шт.

0C

4381855

Bushing

2шт.

0D

4382145

Spacer

1шт.

0E

4662435

Stop

(SUB FOR 4205110)

1шт.

0F

4299048

Stop

1шт.

2

TH103200

Seal

2шт.

4

AT219636

Pin

1шт.

6

AT219637

Pin

(CROSSBOLT PIN)

1шт.

8080908

Pin Fastener

(FLAG PIN)

1шт.

7A

AT250452

Pin Fastener

1шт.

7B

AT361203

Pin

(EXPANDER PIN OPTION)

1шт.

T248629

Sleeve

2шт.

8

4662435

Stop

(SUB FOR 4205110)

2шт.

11

19M8100

Cap Screw

M20 X 180

3шт.

13

14M7277

Nut

M20

6шт.

17

4373798

Wear Plate

2шт.

18

4373799

Wear Plate

1шт.

19

4387440

Washer

4шт.

20

4387444

Washer

2шт.

21

4387443

Washer

1шт.

23

Bracket

(SUB FFSB114220)( FFSB113297 NLA)

2шт.

FFSB114220

Bracket

2шт.

24

19M8313

Cap Screw

M12 X 55

4шт.

J901425

Cap Screw

4шт.

25

12H317

Lock Washer

9/16"

4шт.

24M7085

Washer

15 X 28 X 2.500 mm

4шт.

27

94-2023

Fitting Plug

1шт.

28

4387307

Bushing

1шт.

29

4387309

Spacer

1шт.

30

12M7070

Lock Washer

20 mm

3шт.

31

19M7597

Cap Screw

M20 X 50 (SUB FOR J912050)

3шт.
