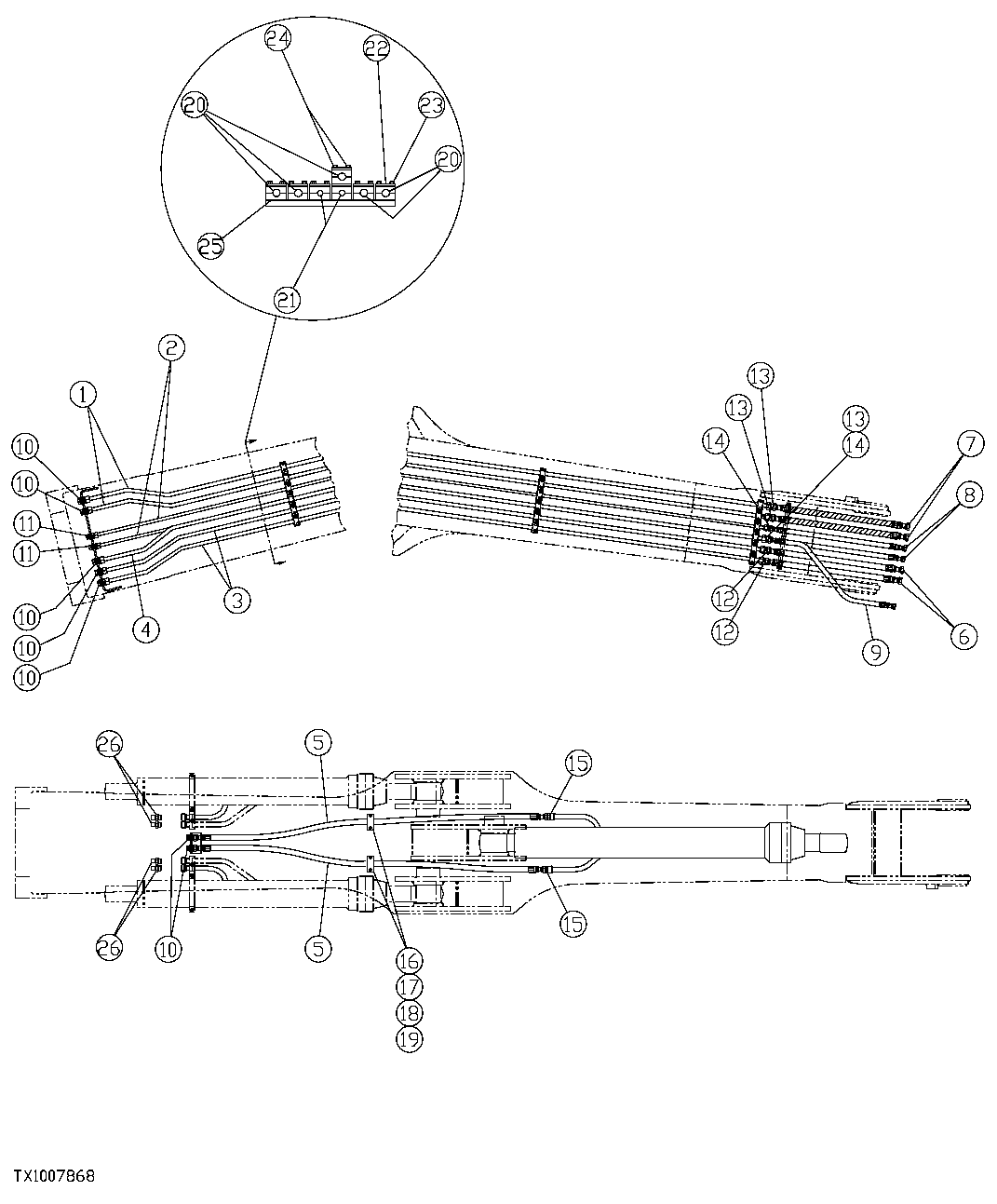

Запчасти John Deere 35C RTS 529 - BOOM PLUMBING FOR HEELER FRONT 3360 HYDRAULIC SYSTEM

1

FFSB100109

Oil Line

2шт.

2

FFSB100110

Oil Line

2шт.

3

FFSB100111

Oil Line

2шт.

4

FFSB108890

Oil Line

1шт.

5

FFSB100123

Hydraulic Hose

(CTL) 2540MM (100")

2шт.

6

FFSB100120

Hydraulic Hose

(CTL) 1346MM (53")

2шт.

7

FFSB100122

Hydraulic Hose

(CTL) 1035MM (40.75")

2шт.

Cover

(MAKE FROM XHG-150)( FFSB111 784 NLA) (CTL) 2050MM (80.7")

2шт.

8

FFSB100121

Hydraulic Hose

(CTL) 1346MM (53")

2шт.

9

FFSB103765

Hydraulic Hose

(CTL) 1435MM (56.5")

1шт.

10

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

7шт.

T76938

O-Ring

(SUB FOR FFSB102144)

14шт.

T78715

Nut

(SUB FOR FFSB102144)

7шт.

11

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

2шт.

T77858

O-Ring

(SUB FOR FFSB102145)

4шт.

T78707

Nut

(SUB FOR FFSB102145)

2шт.

12

38H1281

Union Fitting

(SUB FOR FFSB102147)

2шт.

T76938

O-Ring

(SUB FOR FFSB102147)

4шт.

13

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

3шт.

14

38H1272

Union Fitting

(SUB FOR FFSB102148)

2шт.

T77858

O-Ring

(SUB FOR FFSB102148)

4шт.

15

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

16

FFSB100118

Half Clamp

4шт.

17

FFSB100116

Reinforcement

2шт.

18

FFSB110867

Insert

2шт.

19

19M7216

Cap Screw

M12 X 100 (SUB FOR FFSB109192)

4шт.

20

FFSB100112

Half Clamp

40шт.

21

FFSB100112

Half Clamp

16шт.

22

FFSB100114

Reinforcement

28шт.

23

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

40шт.

24

19M7346

Cap Screw

M10 X 110 (SUB FOR FFSB109896)

8шт.

25

F120999

Nut

( FFSB109897 NLA)

48шт.

26

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.
