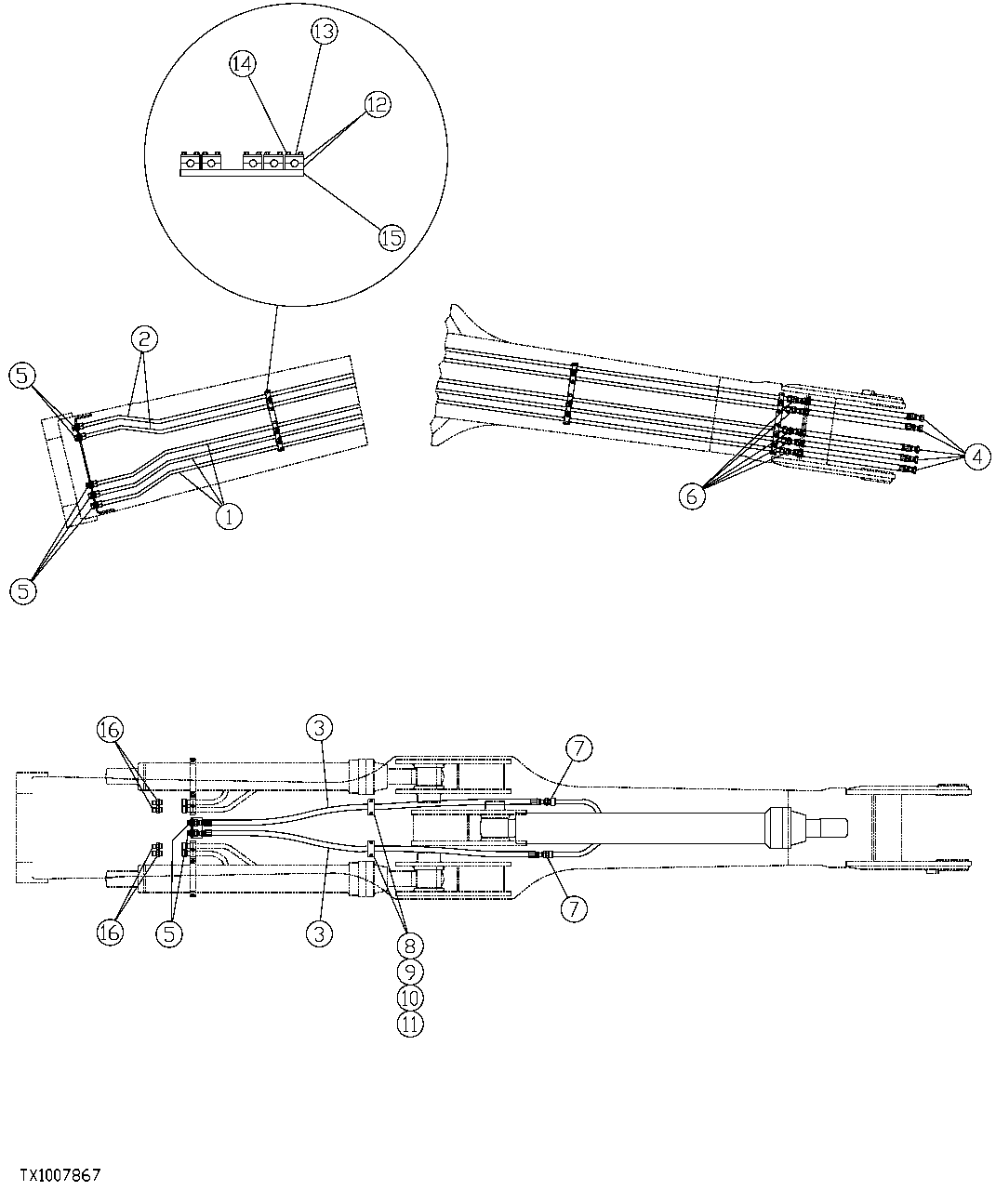

Запчасти John Deere 35C RTS 530 - BOOM PLUMBING FOR VALVE IN HEAD FRONT 3360 HYDRAULIC SYSTEM

1

FFSB100111

Oil Line

3шт.

2

FFSB100109

Oil Line

2шт.

3

FFSB100123

Hydraulic Hose

(CTL) 2540MM (100")

2шт.

4

FFSB100120

Hydraulic Hose

(CTL) 1346MM (53")

5шт.

5

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

7шт.

T76938

O-Ring

(SUB FOR FFSB102144)

14шт.

T78715

Nut

(SUB FOR FFSB102144)

7шт.

6

38H1281

Union Fitting

(SUB FOR FFSB102147)

5шт.

T76938

O-Ring

(SUB FOR FFSB102147)

10шт.

7

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

1шт.

8

FFSB100118

Half Clamp

4шт.

9

FFSB100116

Reinforcement

2шт.

10

FFSB110867

Insert

2шт.

11

19M7216

Cap Screw

M12 X 100 (SUB FOR FFSB109192)

4шт.

12

FFSB100112

Half Clamp

40шт.

13

FFSB100114

Reinforcement

20шт.

14

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

40шт.

15

F120999

Nut

( FFSB109897 NLA)

40шт.

16

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.
