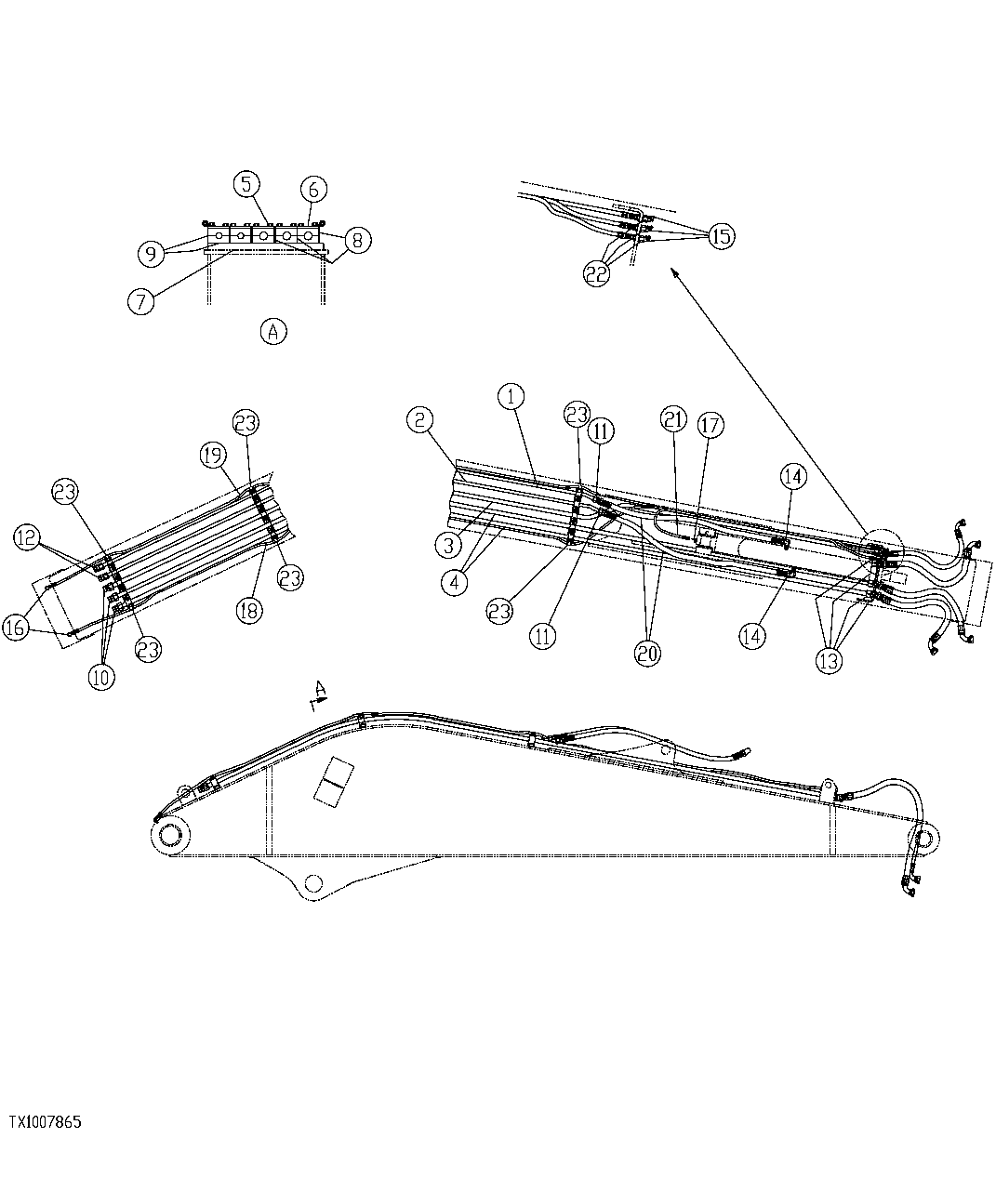

Запчасти John Deere 35C RTS 532 - VALVE IN HEAD ARM PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB112791

Structural Tube

1шт.

2

FFSB112792

Structural Tube

1шт.

3

FFSB112793

Structural Tube

1шт.

4

FFSB100132

Oil Line

2шт.

5

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

30шт.

6

FFSB100114

Reinforcement

15шт.

7

F120999

Nut

( FFSB109897 NLA)

30шт.

8

FFSB100112

Half Clamp

18шт.

9

FFSB100113

Half Clamp

12шт.

10

38H1281

Union Fitting

(SUB FOR FFSB102147)

3шт.

T76938

O-Ring

(SUB FOR FFSB102147)

6шт.

11

38H1272

Union Fitting

(SUB FOR FFSB102148)

2шт.

T77858

O-Ring

(SUB FOR FFSB102148)

4шт.

12

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

2шт.

13

PMH180

Elbow Fitting

(SUB FOR FFSB102538)

4шт.

14

38H1461

Elbow Fitting

(SUB FOR FFSB102540)

2шт.

T77858

O-Ring

(SUB FOR FFSB102540)

2шт.

15

JD7763

Lubrication Fitting

(SUB FOR FFSB110785)

3шт.

16

T107303

Elbow Fitting

(SUB FOR FFSB109442)

2шт.

17

T28850

Elbow Fitting

(SUB FOR FFSB104587)

1шт.

18

FFSB102460

Hydraulic Hose

(CTL) 4928MM (194")

1шт.

19

FFSB102459

Hydraulic Hose

(CTL) 4623MM (182")

1шт.

20

FFSB106164

Hydraulic Hose

(CTL) 1250MM (49.2")

2шт.

21

FFSB106165

Hydraulic Hose

(CTL) 1650MM (65")

1шт.

22

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

3шт.

23

H75541

Clamp

(SUB FOR FFSB102223)

6шт.
