544 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION) (EXCAVATOR BOOM)

Запчасти John Deere 35C RTS 544 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION) (EXCAVATOR BOOM) 3360 HYDRAULIC SYSTEM

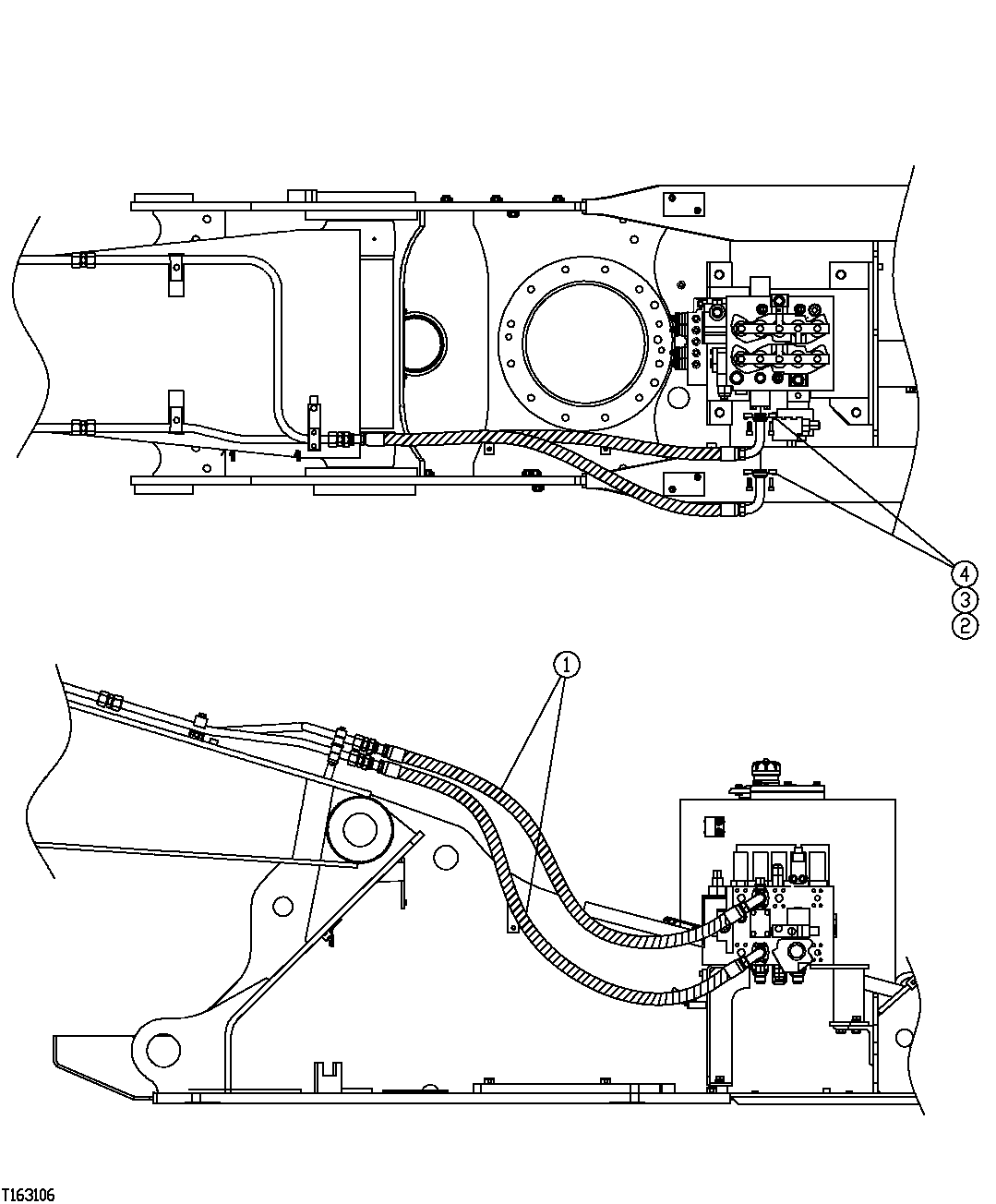

Схема запчастей John Deere 35C RTS - 544 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION) (EXCAVATOR BOOM) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB112953

Hydraulic Hose

(SUB FOR FFSB112952)

2шт.

Cover

( FFSB111784 NLA) (CTL) 2050MM (80.7") (SUB FOR FFSB112952 ) (ORDER XHG-150)

2шт.

2

H61354

Flange Fitting

(SUB FOR FFSB110184)

4шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

4

T78313

O-Ring

(SUB FOR FFSB106430)

2шт.
