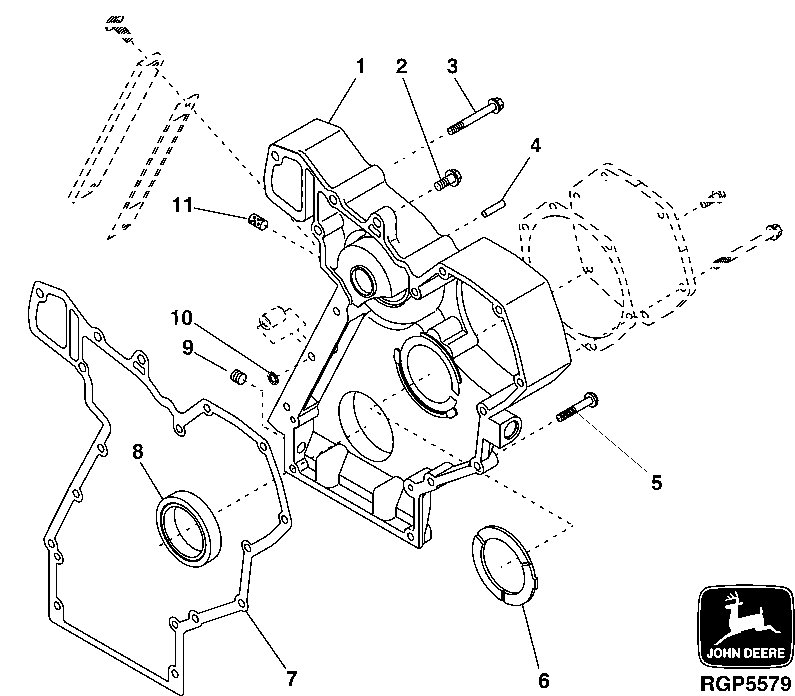

Запчасти John Deere 35C RTS 42 - 7701 TIMING GEAR COVER 0400A 6081HT002 6081HT002 6081HT002

1

R502082

Cover

1шт.

2

R504586

Screw

9.525 X 31.750 mm (3/8" X 1-1/4")

1шт.

3

R104859

Screw

7.925 X 35 mm (5/16" X 1.378") (RH)

3шт.

4

R11086

Dowel Pin

2шт.

5

R115129

Cap Screw

7.925 X 48.500 mm (5/16" X 1.909") (LH)

3шт.

6

R104656

Thrust Washer

1шт.

7

R119384

Gasket

1шт.

8

RE534261

Seal

(USE WITH RE530437)

1шт.

RE529775

Seal

(USE WITH RE534314)

1шт.

9

15H666

Pipe Plug

3/8"

1шт.

10

R116022

Seal

1шт.

11

R98527

Filter

1шт.
