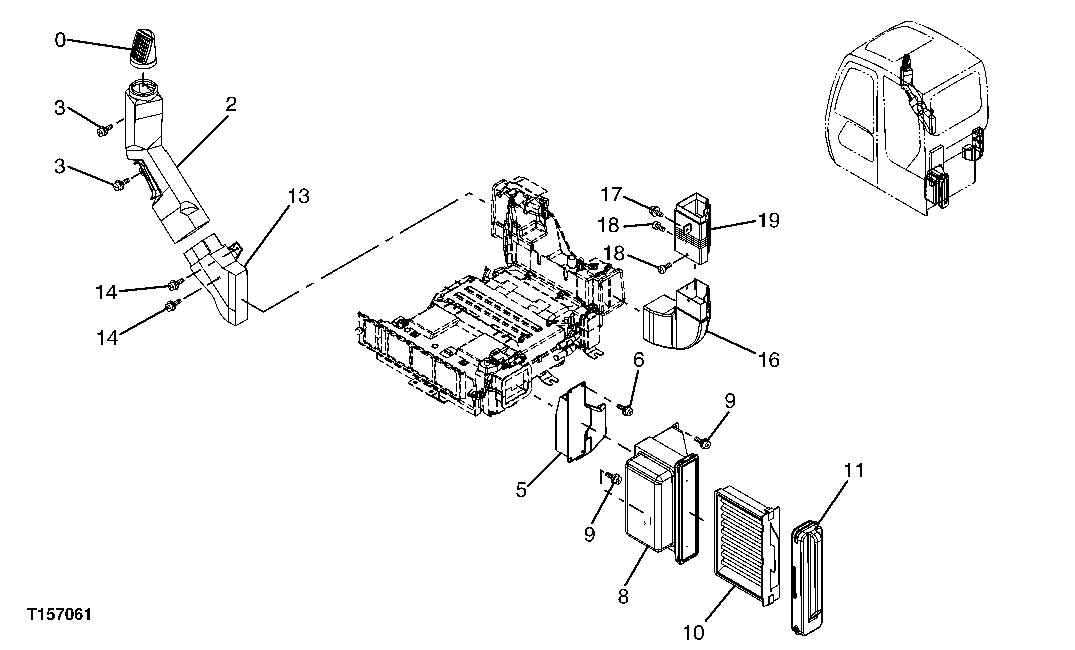

Запчасти John Deere 60C LC 117 - HVAC DUCTS AND FILTER 1830 HEATING AND AIR CONDITIONING

0

4449068

Air Duct

1шт.

2

4426159

Air Duct

1шт.

4653923

Grille

(NOT ILLUSTRATED)

1шт.

3

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

5

4445708

Air Duct

1шт.

6

Screw With Washer

J460620 NLA

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

8

4445709

Air Duct

1шт.

9

Screw With Washer

J460620 NLA

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

10

4S00640R

Air Filter

SUB FOR 4S00640 OR 4350249

1шт.

11

4445710

Air Duct

1шт.

13

4445707

Air Duct

1шт.

14

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

16

4445711

Air Duct

1шт.

17

Screw With Washer

1шт.

21M7267

Screw

M6 X 20

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

12M7006

Lock Washer

6 mm

1шт.

18

4457412

Screw

2шт.

19

4455512

Air Duct

1шт.
