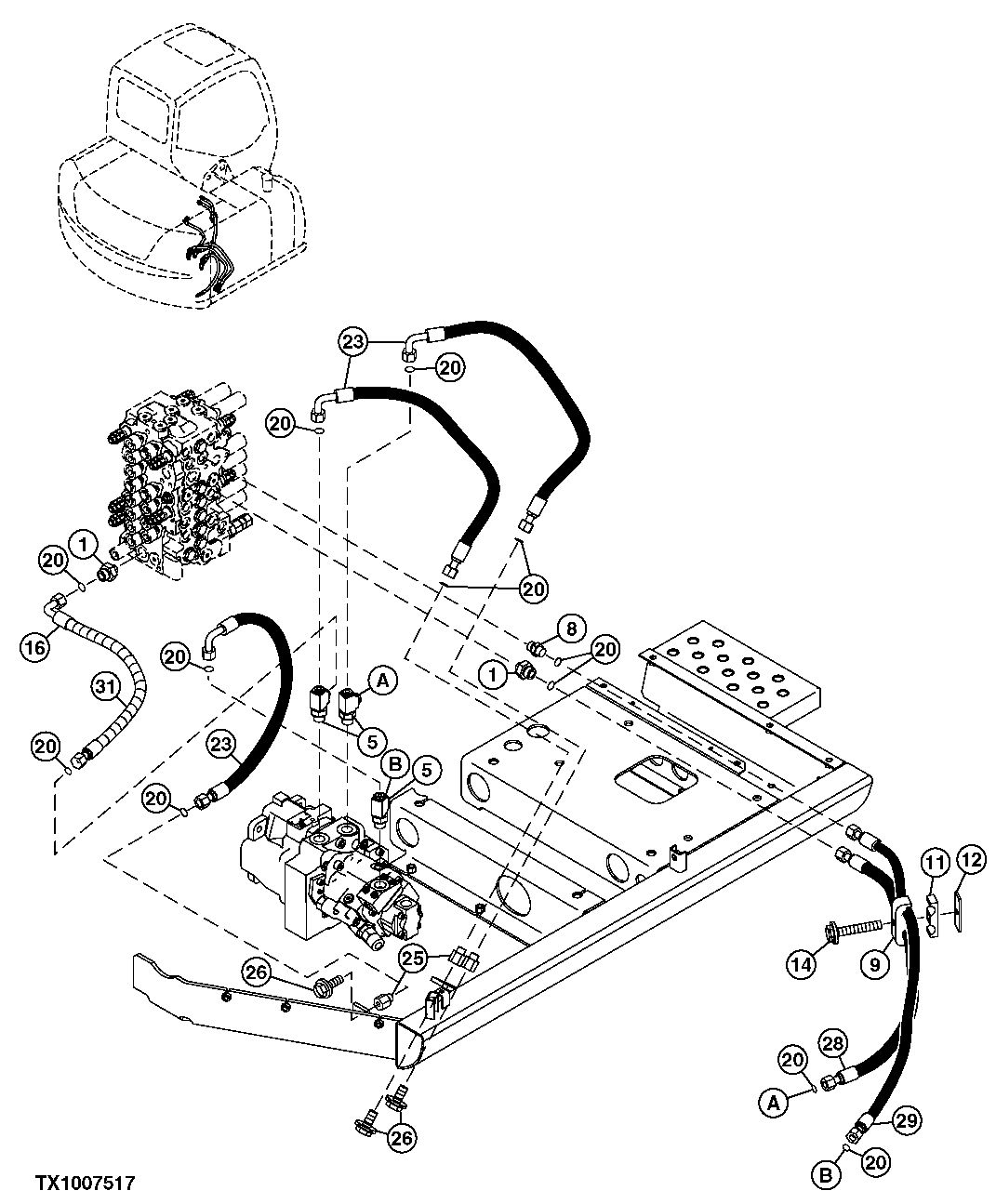

Запчасти John Deere 60C LC 214 - DELIVERY PIPING 3363 LINES, HOSES AND FITTINGS

1

A853164

Adapter Fitting

2шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

5

A853464

Fitting

3шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

8

A853144

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

9

FYD00008760

Clamp

SUB FOR 8082431

1шт.

11

AT318021

Clamp

(SUB FOR 4285722)

1шт.

12

4303989

Adjusting Strap

1шт.

14

19M7328

Cap Screw

M10 X 70 (SUB FOR J021070 ) (A LSO ORDER 24M7096 AND 12M7066)

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

16

4455708

Hydraulic Hose

1шт.

20

T77857

O-Ring

12шт.

23

4457818

Hydraulic Hose

3шт.

25

4446638

Pipe Plug

3шт.

26

19M7662

Cap Screw

M10 X 30

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

28

4455527

Hydraulic Hose

1шт.

29

4455528

Hydraulic Hose

1шт.

31

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.
