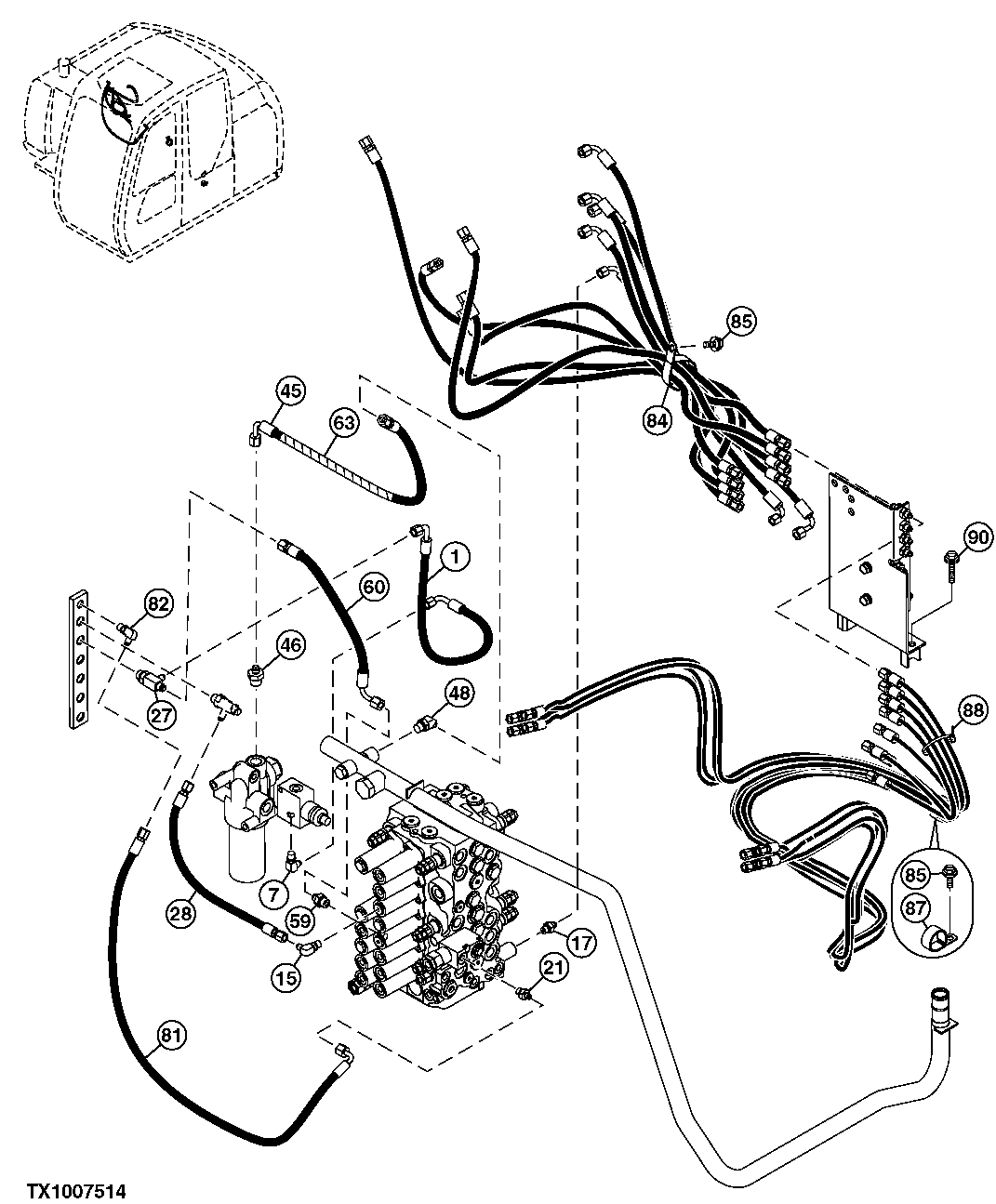

Запчасти John Deere 60C LC 217 - HYDRAULIC DRAIN HOSES (CONTROL VALVE TO HYDRAULIC OIL TANK) 3363 LINES, HOSES AND FITTINGS

1

4463068

Hydraulic Hose

1шт.

7

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

1шт.

15

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

1шт.

17

A852122

Adapter Fitting

1шт.

M800650

Packing

1шт.

21

A852122

Adapter Fitting

1шт.

M800650

Packing

1шт.

27

4246385

Tee Fitting

1шт.

CH11570

O-Ring

1шт.

28

4459662

Hydraulic Hose

1шт.

45

4441745

Hydraulic Hose

1шт.

46

A852143

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

48

T106152

Pin Fastener

1шт.

CH11570

O-Ring

1шт.

59

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

60

4466142

Hydraulic Hose

1шт.

63

4327315

Hose Guard

4327293 NLA

1шт.

81

4465533

Hydraulic Hose

1шт.

82

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

M800650

Packing

1шт.

84

R134002

Clamp

SUB FOR 4193816

1шт.

85

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

87

XCL-29

Hose Clamp

SUB FOR AT131725 OR 4193848

1шт.

88

H77698

Tie Band

1шт.

90

19M7328

Cap Screw

M10 X 70 SUB FOR J0210 70, 24M7096 AND 12M7066

2шт.
