222 - HYDRAULIC HOSES (CONTROL VALVE TO SWING MOTOR)

Запчасти John Deere 60C LC 222 - HYDRAULIC HOSES (CONTROL VALVE TO SWING MOTOR) 3363 LINES, HOSES AND FITTINGS

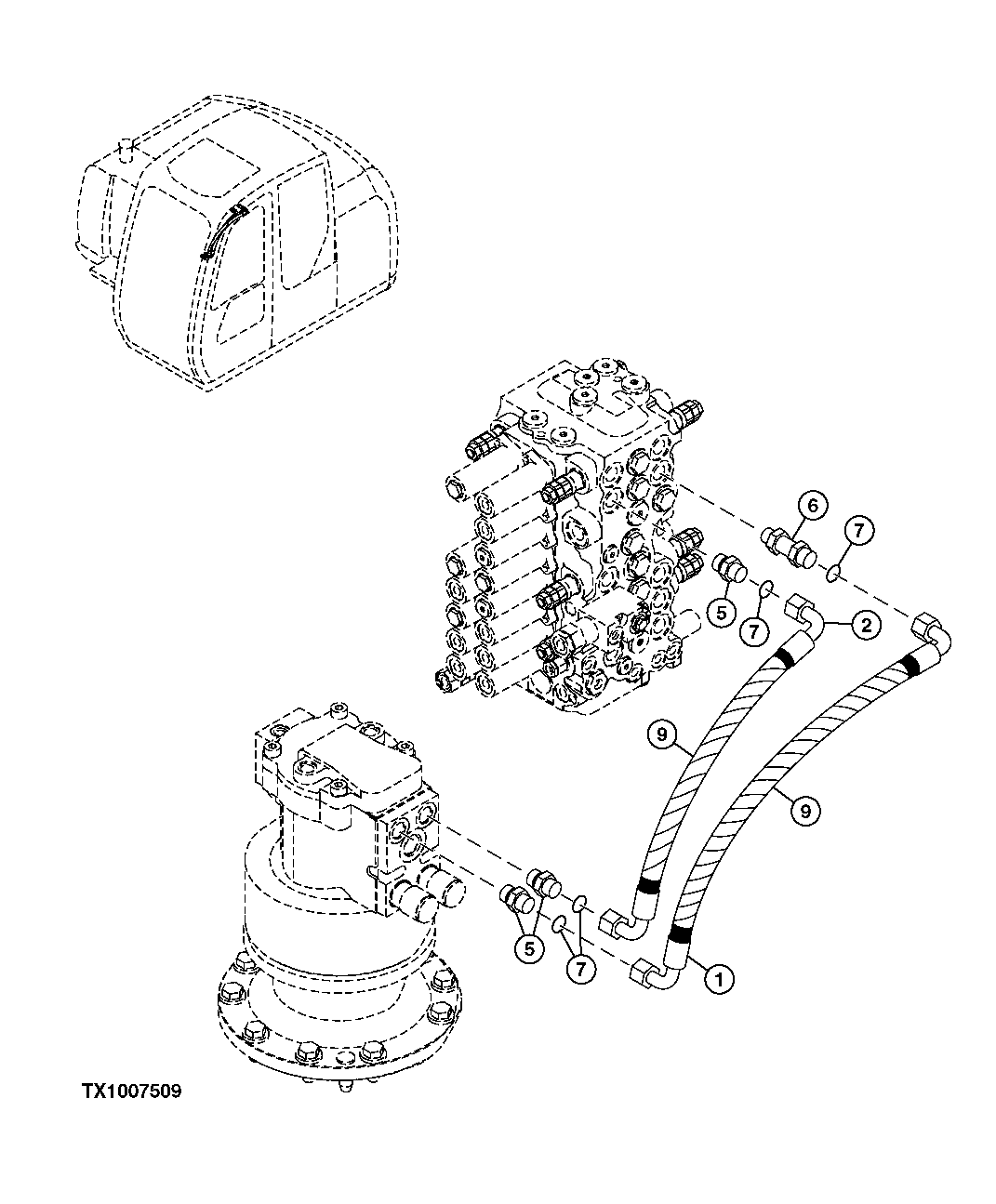

Схема запчастей John Deere 60C LC - 222 - HYDRAULIC HOSES (CONTROL VALVE TO SWING MOTOR) 3363 LINES, HOSES AND FITTINGS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4449924

Hydraulic Hose

1шт.

1

4449925

Hydraulic Hose

1шт.

5

A853144

Adapter Fitting

3шт.

4506418

O-Ring

1шт.

6

4199247

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

7

T77857

O-Ring

4шт.

9

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.
