227 - Hydraulic Oil Tank And Filter

Запчасти John Deere 60LC 227 - Hydraulic Oil Tank And Filter 2160 Vehicle Hydraulics

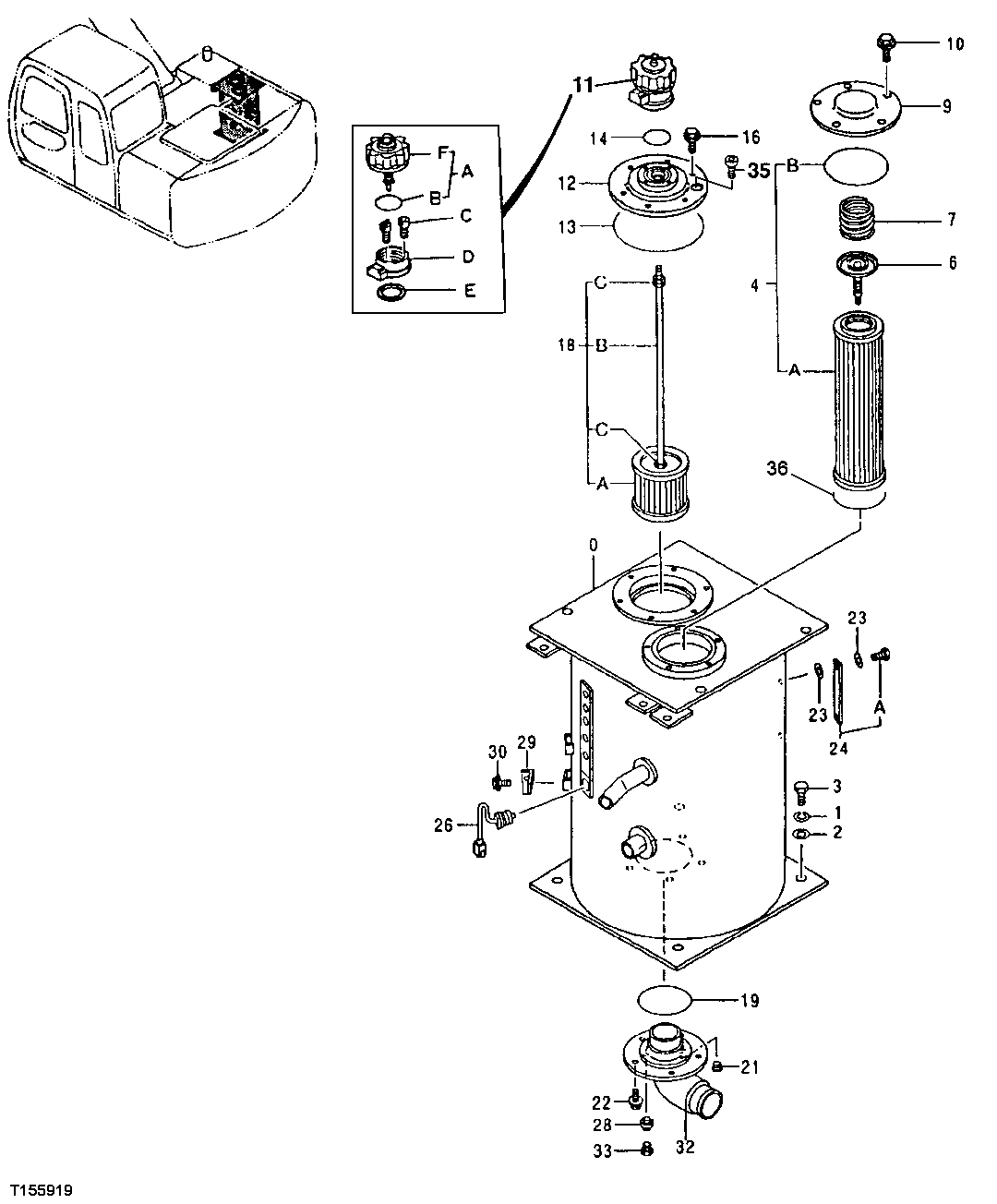

Схема запчастей John Deere 60LC - 227 - Hydraulic Oil Tank And Filter 2160 Vehicle Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

AP35178

Hydraulic Reservoir

1шт.

1

12H294

Lock Washer

5/8"

4шт.

2

24M7241

Washer

17 X 34 X 4 mm

4шт.

3

19M7488

Cap Screw

M16 X 40

4шт.

4

AT308569

Filter Element

(SUB FOR TH111010 ) (SUB FOR 4227353)(ALS O ORDER AT194547 IF SERIAL NUMBER -040589)

1шт.

4A

Filter Element

1шт.

AT171693

Filter

Not Illustrated Cleanup Filter Idle Sp eed Short Term Use - Approximately Thre e Hours (ALSO REQUIRES CH17213 PACKING)

1шт.

4B

CH17213

Packing

1шт.

6

4065280

Flow Control Hyd. Valve

(SUB FOR TH101887)

1шт.

7

4109393

Spring

(SUB FOR TH101883)

1шт.

9

4264508

Cover

(SUB FOR AT154296)

1шт.

10

19M7938

Cap Screw

M10 X 20

5шт.

12M7066

Lock Washer

10 mm

5шт.

11

Breather

1шт.

11A

4326285

Cap

(SUB FOR AT167080)

1шт.

11B

T162516

O-Ring

1шт.

11C

19M8146

Screw

M5 X 16

1шт.

11D

4222875

Base

(SUB FOR TH111021)

1шт.

11E

4222876

Packing

(SUB FOR TH111022)

1шт.

11F

4251384

Filter Element

(SUB FOR AT122928)

1шт.

12

8066670

Cover

(SUB FOR AT215118)

1шт.

13

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

14

CH11571

Packing

1шт.

16

19M8761

Screw

M10 X 22

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

18

Filter

( AT154233 NLA)

1шт.

18A

4285577

Strainer

(SUB FOR AT154383)

1шт.

18B

4285578

Rod

(SUB FOR AT154384)

1шт.

18C

14M7274

Nut

M10

3шт.

19

TH102793

O-Ring

129.600 X 5.700 mm (5.102" X 0.224")

1шт.

21

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

22

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

23

449558

Washer

(SUB FOR TH100675)

4шт.

24

8053499

Level Gauge

(SUB FOR TH108293)

1шт.

24A

4100967

Bolt

(SUB FOR TH101894)

2шт.

26

4259787

Switch

(SUB FOR AT154937) Hydraulic Oil Level

1шт.

28

4250261

Gasket

(SUB FOR AT154922)

1шт.

29

4257159

Bracket

(SUB FOR AT154243)

1шт.

30

19M8324

Cap Screw

M10 X 16

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

32

2038156

Line

(SUB FOR AT176388)

1шт.

33

4364696

Fitting Plug

(SUB FOR P61607)

1шт.

35

4209653

Fitting Plug

(SUB FOR TH109514)

1шт.

36

AT194547

O-Ring

1шт.
