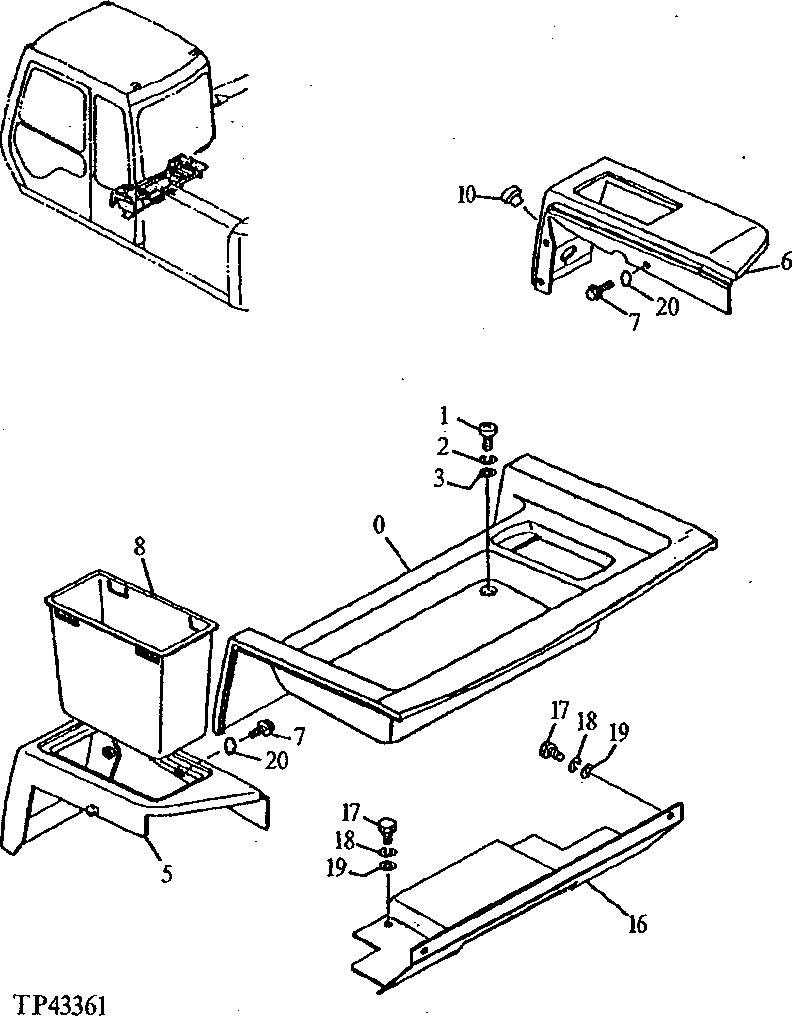

Запчасти John Deere 90E 104 - Cab Rear Cover 1810 Operator Enclosure

0

6011272

Cover

(SUB FOR AT154453)

1шт.

1

21M7397

Screw

M8 X 25

4шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

3

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

5

6011274

Cover

(SUB FOR AT154454)

1шт.

6

6011275

Cover

(SUB FOR AT154455)

1шт.

7

19M7881

Screw

M8 X 20

6шт.

8

3052412

Tray

(SUB FOR AT154124)

1шт.

10

Rubber Mount

( AT200402 NOT AVAILABLE FOR SERVICE)

1шт.

16

7027991

Cover

(SUB FOR AT154471 ) (SUB FOR AT167004)

1шт.

17

19M7881

Screw

M8 X 20

4шт.

18

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

19

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

20

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.
