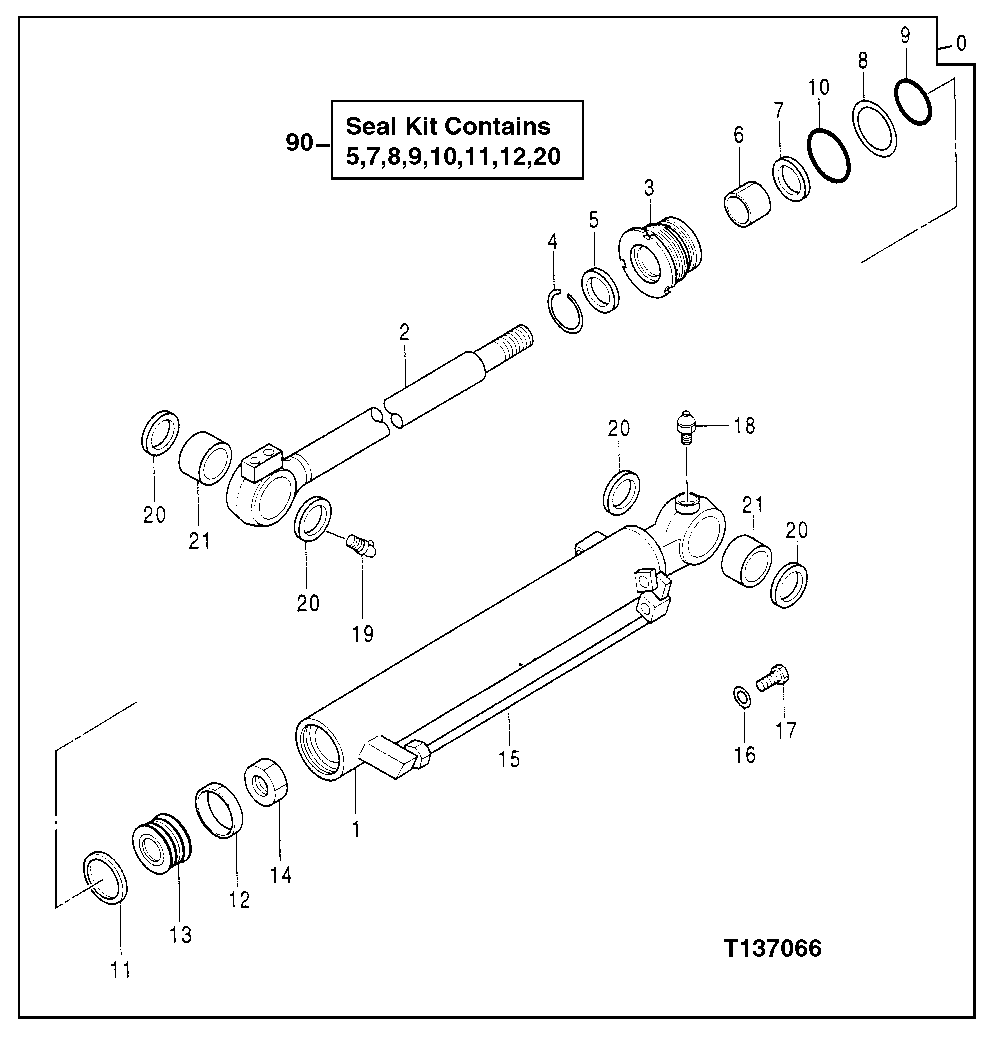

Запчасти John Deere 90E 214 - CYLINDER BLADE PARTS (010333 - ) 3360 HYDRAULIC SYSTEM

0

4350438

Blade

CYLINDER (SUB FOR AT171949)

1шт.

1

Cylinder

1шт.

2

Rod

1шт.

3

4355821

Hydr. Cylinder Rod Guide

(SUB FOR AT250613)

1шт.

4

4355836

Snap Ring

(SUB FOR AT250614)

1шт.

5

4355839

Seal

(A) (SUB FOR AT184026)

1шт.

6

4355840

Bushing

(SUB FOR AT250616)

1шт.

7

4355841

Seal

(A) (SUB FOR AT184027)

1шт.

8

4355842

Back-Up Ring

(A) (SUB FOR AT184028)

1шт.

9

4355843

O-Ring

(A) (SUB FOR AT184029)

1шт.

10

4355844

O-Ring

(A) (SUB FOR AT184030)

1шт.

11

4355845

Piston Ring

(A) (SUB FOR AT184031)

1шт.

12

4355846

Ring

(A) (SUB FOR AT184032)

1шт.

13

4355847

Piston

(SUB FOR AT250623)

1шт.

14

4355848

Nut

(SUB FOR AT250624)

1шт.

15

Line

1шт.

16

4355850

Washer

(SUB FOR AT250625)

1шт.

17

4355854

Screw

(SUB FOR AT250626)

1шт.

18

4355855

Lubrication Fitting

(SUB FOR AT250627)

1шт.

19

4355856

Lubrication Fitting

(SUB FOR AT250628)

1шт.

20

4355857

Seal

(A) (SUB FOR AT184033)

1шт.

21

Bushing

1шт.

90

4355825

Seal Kit

(INCLUDES PARTS MARKED (A)) (SUB FOR AT184025)

1шт.
