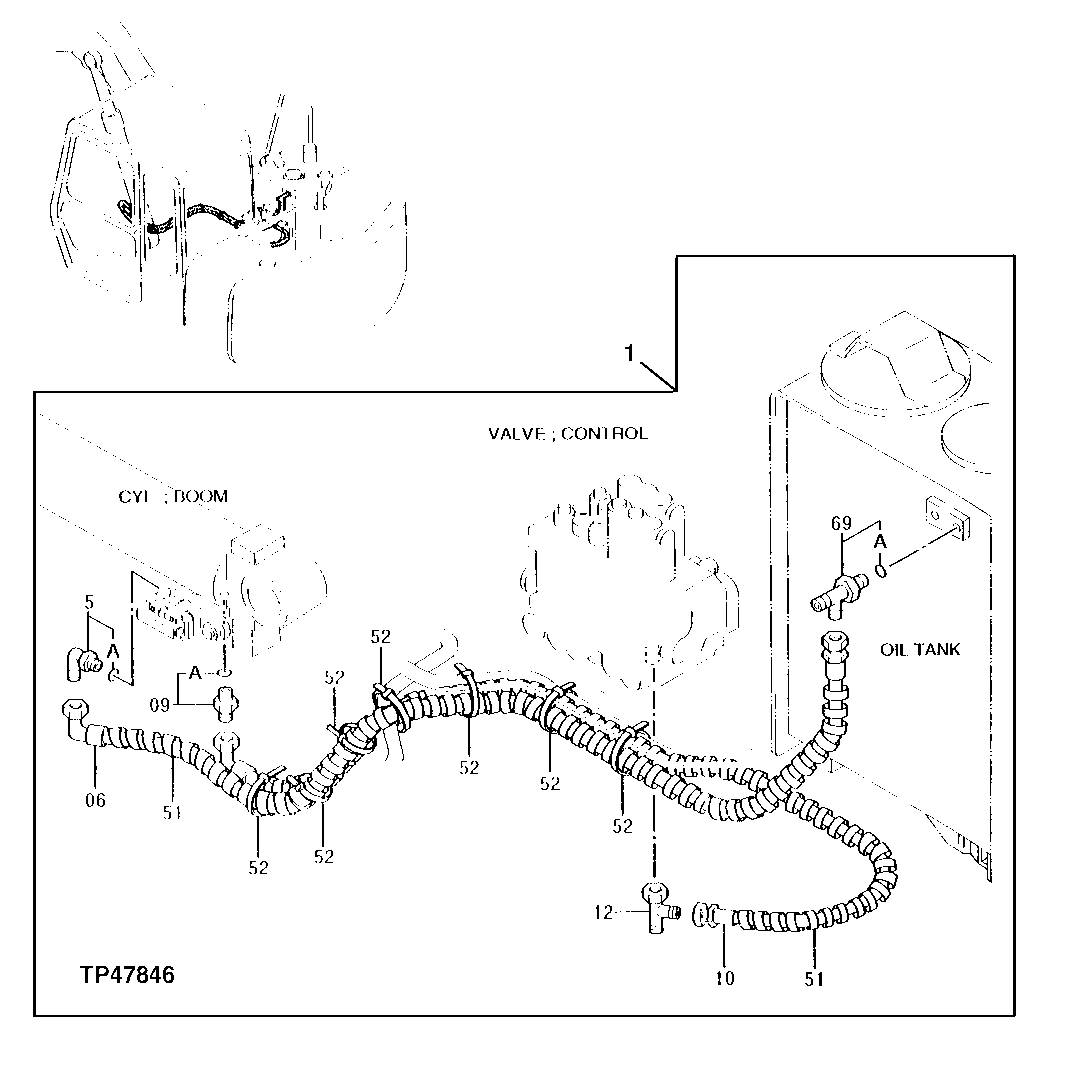

Запчасти John Deere 90E 216 - BOOM CYLINDER LOAD LOWERING VALVE 3360 HYDRAULIC SYSTEM

1

Kit

AT171137 NO LONGER AVAILABLE BOOM CYLI NDER LOAD LOWERING VALVE, CONTAINS ALL I TEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

5

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

Hose

4313348 NLA SUB FOR AT175093

1шт.

9

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

Hose

4239755 NLA SUB FOR AT175095

1шт.

12

4246672

Tee Fitting

SUB FOR AT200991

1шт.

51

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

ARшт.

52

H77698

Tie Band

7шт.

69

4205363

Tee Fitting

SUB FOR AT126362

1шт.

69A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
