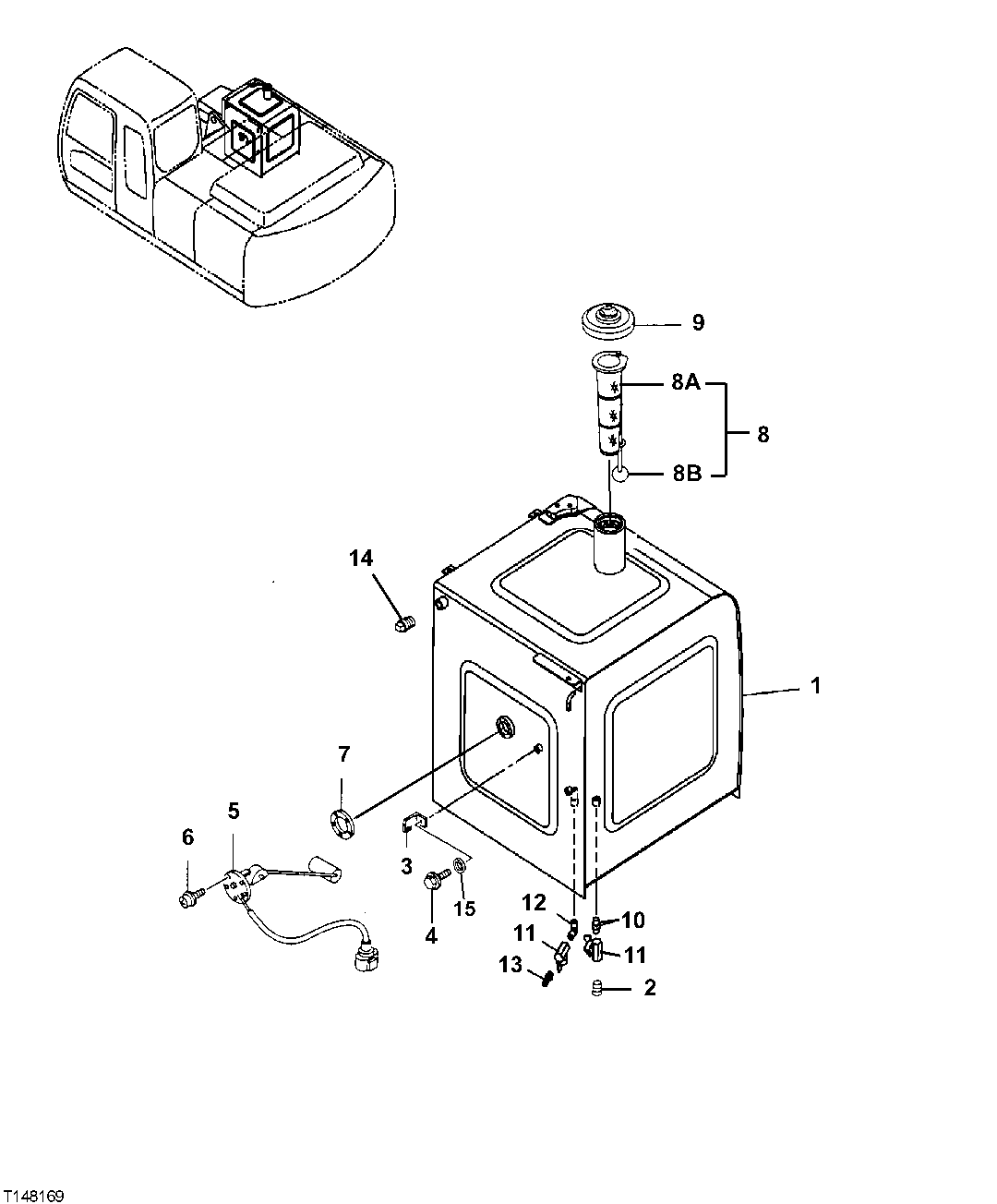

Запчасти John Deere 00CLC 139 - Fuel Tank 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

FYA40002726J

Fuel Tank

SUB FOR 5006215J

1шт.

2

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

3

4257159

Bracket

SUB FOR AT154243

1шт.

4

19M8324

Cap Screw

M10 X 16 AT153802 NLA

1шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

5

4660782

Float

SUB FOR AT154239, 4257128

1шт.

6

21M7278

Screw

M5 X 10

5шт.

7

T211051

Gasket

SUB FOR U42323

1шт.

8

4353560

Strainer

SUB FOR AT213970

1шт.

8A

4121496

Fuel Filter

SUB FOR TH100509

1шт.

8B

Float

1шт.

9

FYA00010024

Filler Cap

Key Lockable Order Key S eparately SUB FOR 4361638

1шт.

AT194969

Key

SUB FOR (1) AT147803 Not Illustrated

1шт.

AT323462

Filler Cap

SUB FOR (1) AT175989 Can Be Locked With Padlock Padlock Not Included

1шт.

9A

4168820

Packing

Not Illustrated

1шт.

10

T116057

Fitting

1шт.

11

4374265

Drain Valve

SUB FOR AT177419

2шт.

12

4449361

Elbow Fitting

SUB FOR TH4449361

1шт.

13

4449362

Adapter Fitting

SUB FOR TH4449362

1шт.

14

94-2013

Fitting Plug

SUB FOR TH100648

1шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

1шт.
