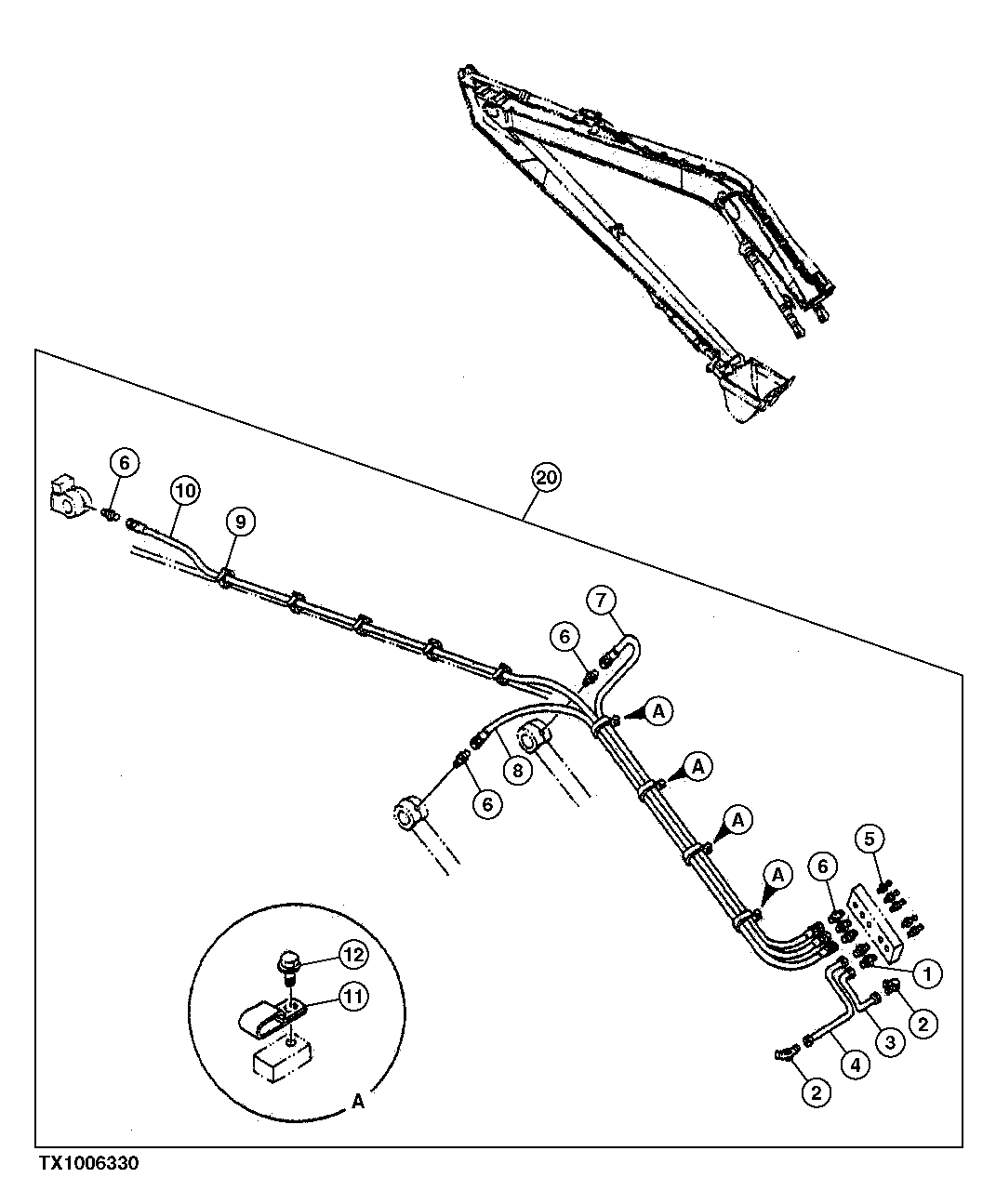

Запчасти John Deere 00CLC 149 - SUPER LONG FRONT BOOM CENTRAL LUBRICATION LINES ( -31OCT04) 1370 LUBRICATION SYSTEMS

1

4360981

Adapter Fitting

(SUB FOR AT176256)

2шт.

2

4130174

Fitting

(SUB FOR TH103262)

2шт.

3

4361000

Oil Line

(SUB FOR AT213994)

1шт.

4

4370555

Line

(SUB FOR AT186467)

1шт.

5

JD7769

Lubrication Fitting

(SUB FOR TH100364)

5шт.

6

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

6шт.

7

AT160890

Hydraulic Hose

1шт.

8

AT160892

Hydraulic Hose

1шт.

9

H77698

Tie Band

(SUB FOR M88199)

5шт.

10

4287958

Hose

(SUB FOR AT160891)

1шт.

11

T152608

Clamp

(SUB FOR AT154207)

4шт.

12

19M8324

Cap Screw

M10 X 16

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

20

Kit

Installed On Units Prior To November 200 4 (ALSO ORDER T190565, T153672 AND T15367 3 ) (ALSO ORDER AH165671 AND AH165673 ( A T186457 NLA) (LONG FRONT ASSEMBLY KIT) (C ONTAINS ALL ITEMS ON THIS PAGE - ADDITION AL COMPONENTS LISTED ON SEPARATE PAGES))

1шт.
