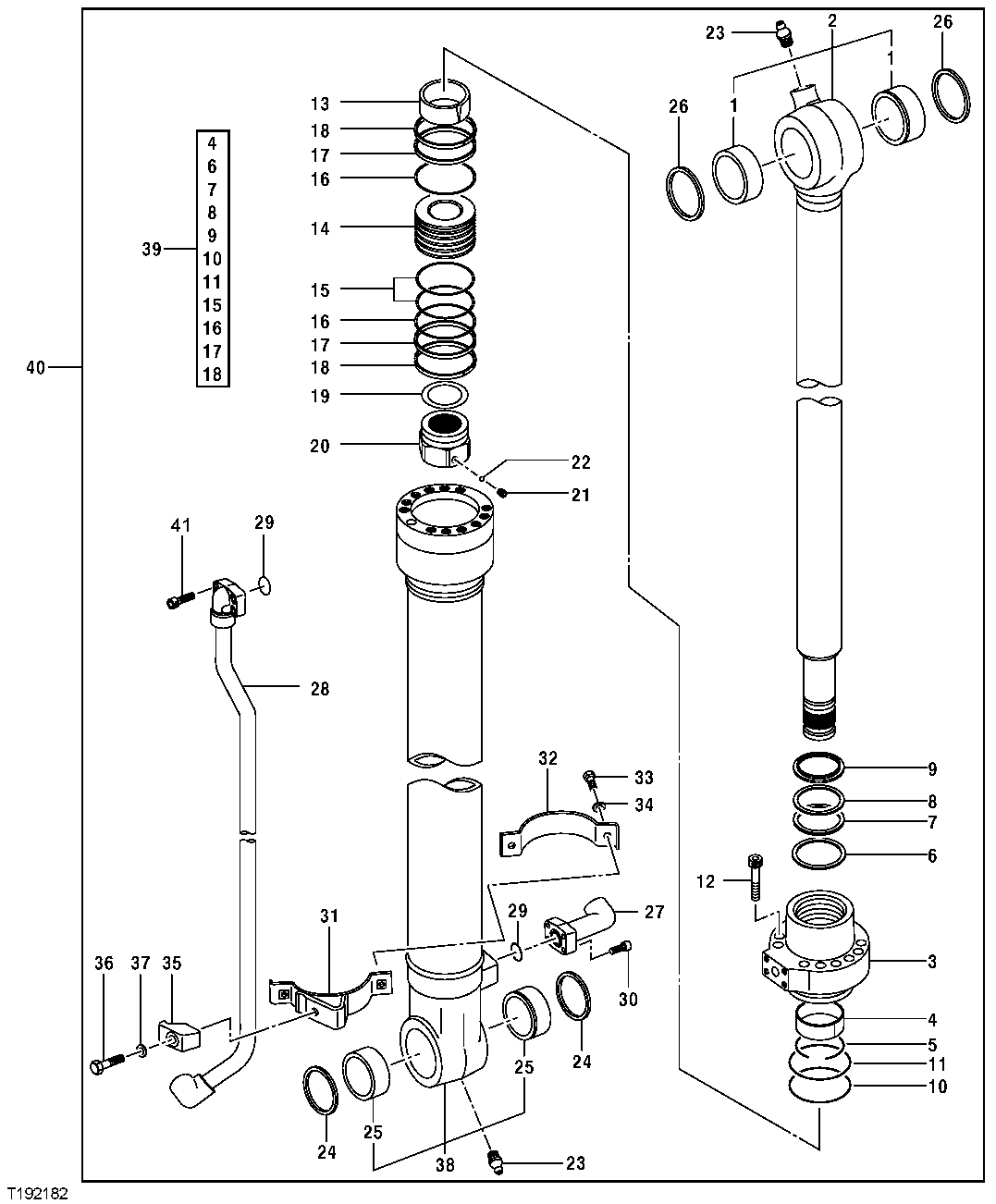

Запчасти John Deere 00CLC 378 - BUCKET CYLINDER (SN. 503595- ) 3365 Hydraulic Cylinders

1

4352398

Bushing

(SUB FOR AT213964)

2шт.

2

AH173450

Rod

1шт.

3

H178708

Hydr. Cylinder Rod Guide

1шт.

4

AT264314

Wear Ring

(K) (SUB FOR T108041)

1шт.

5

AT132690

Snap Ring

(SUB FOR 4004663)

1шт.

6

H179700

Seal

(K)

1шт.

7

AT264357

Seal

(K) (SUB FOR TH104925)

1шт.

8

AT264358

Back-Up Ring

(K) (SUB FOR TH104926)

1шт.

9

H157235

Seal

(K)

1шт.

10

AT264320

O-Ring

(K) (SUB FOR T110448)

1шт.

11

TH109353

Back-Up Ring

(K)

1шт.

12

19M8931

Screw

M16 X 75

10шт.

13

H206880

Bushing

1шт.

14

H161605

Piston

1шт.

15

TH105767

Ring

(K)

1шт.

16

H163431

Back-Up Ring

(K)

2шт.

17

H163432

Scraper Ring

(K)

2шт.

18

TH109357

Ring

(K) (SUB FOR AT309610)

2шт.

19

T108030

Shim

(SUB FOR 0309013)

1шт.

20

H178713

Nut

1шт.

21

22M7009

Set Screw

M12 X 12

1шт.

22

T13624

Ball

1шт.

23

TH100074

Lubrication Fitting

2шт.

24

TH104472

Seal

2шт.

25

4352400

Bushing

(SUB FOR AT213966)

2шт.

26

AH140158

Seal

2шт.

27

8086114J

Oil Line

(SUB FOR AT114835 OR 8086114)

2шт.

28

AH233839

Oil Line

(SUB FOR AH173453)

1шт.

29

AT264360

O-Ring

(SUB FOR TH104930, 4506430)

2шт.

30

19M8337

Screw

M10 X 30

4шт.

31

AH233840

Band

(SUB FOR AH173454 OR AH173454J)

1шт.

32

H178717J

Clamp

(SUB FOR H178717)

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

34

12M7066

Lock Washer

10 mm

2шт.

35

H238070

Clamp

(SUB FOR T108036)

1шт.

36

19M7362

Cap Screw

M12 X 55

1шт.

37

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

38

AH173449

Hydraulic Cylinder Barrel

1шт.

39

AH173451

Hydraulic Cylinder Kit

SEAL KIT (CONTAINS ALL PARTS MARKED K)

1шт.

40

DH900365J

Hydraulic Cylinder

(SUB FOR AH173435 OR 91698 06Y)(PAINTED PART - YELLOW)

1шт.

41

19M8339

Screw

M10 X 55

4шт.
