5 - EXTREME DUTY SWIVEL GUARD

Запчасти John Deere 200LC, 330LC, 370 5 - EXTREME DUTY SWIVEL GUARD 0130 Track Systems

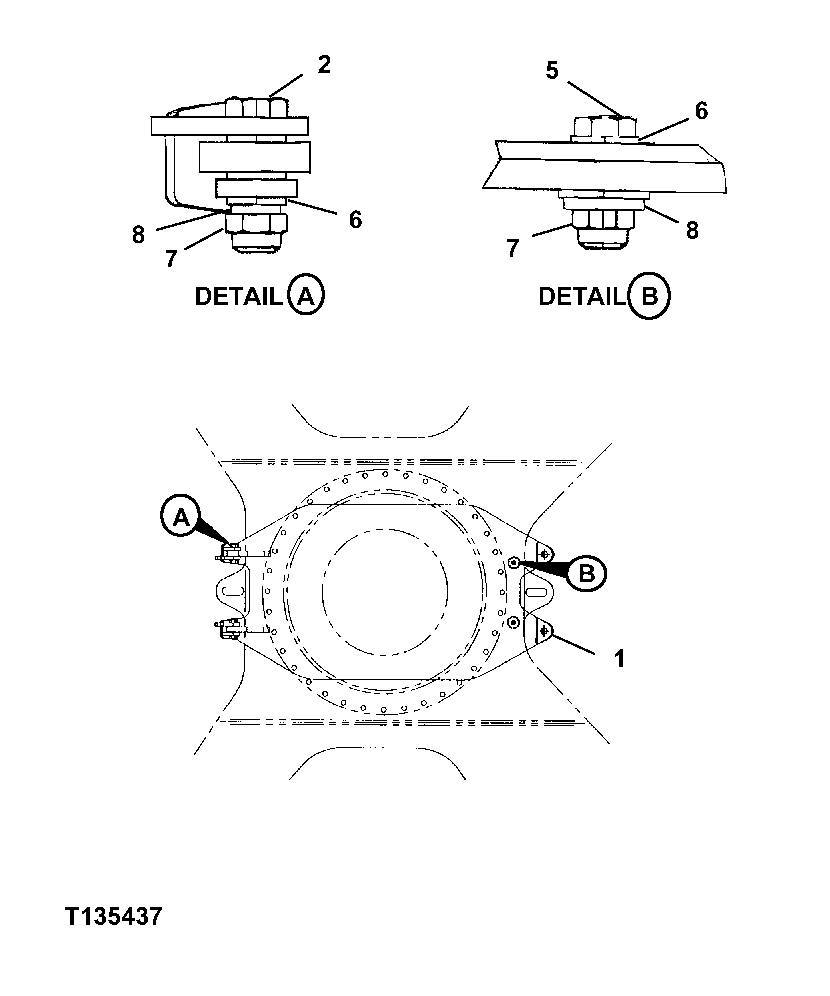

Схема запчастей John Deere 200LC, 330LC, 370 - 5 - EXTREME DUTY SWIVEL GUARD 0130 Track Systems
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB100087

Cover

(LOG LOADER APPLICATION)

1шт.

FFSB100108

Cover

(ROAD BUILDER APPLICATION)

1шт.

FFSB103401

Cover

(ROAD BUILDER APPLICATIONS)

1шт.

2

19H3313

Cap Screw

1" X 4-1/2"

2шт.

5

19H1903

Cap Screw

1" X 3-1/2"

2шт.

6

24H1138

Washer

1-1/16" X 2" X 0.134"

10шт.

7

14H1048

Nut

1"

4шт.

8

12H21

Lock Washer

1"

4шт.
