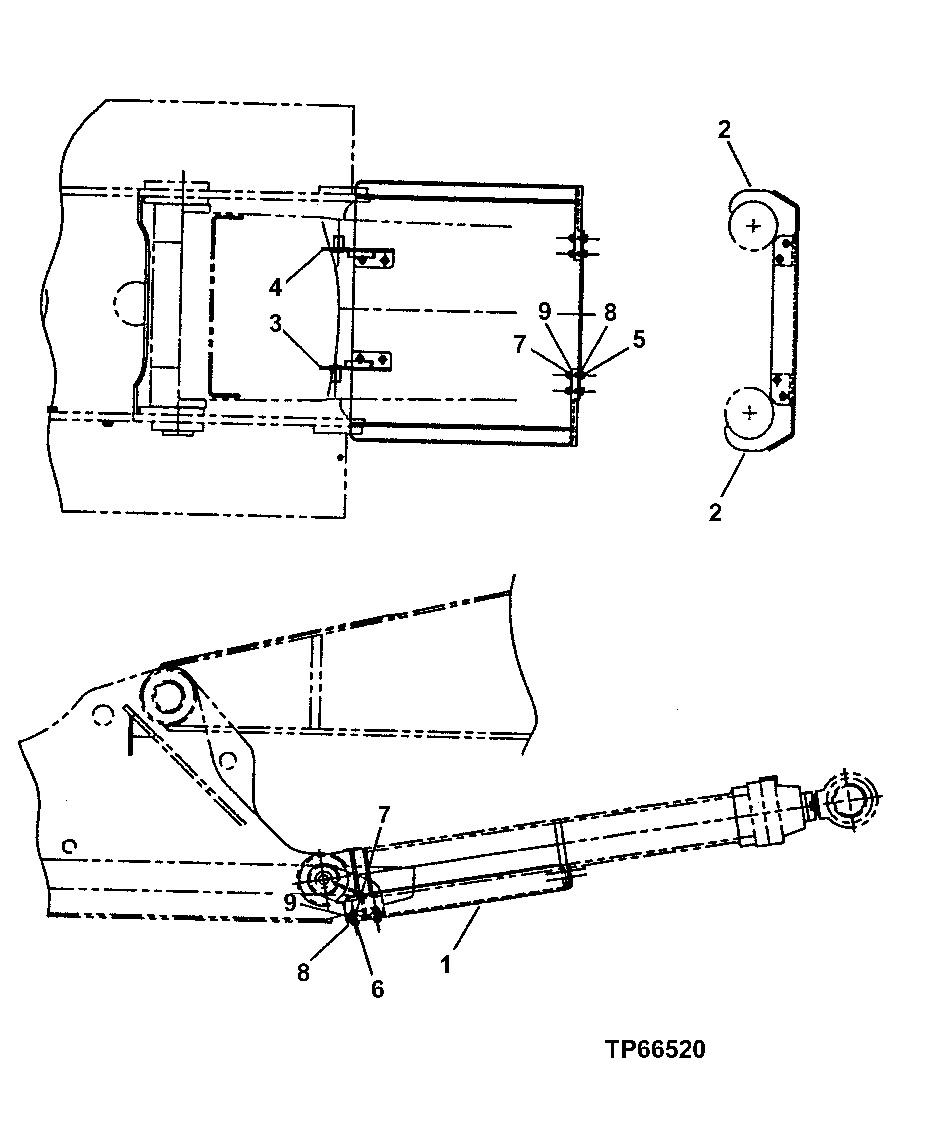

Запчасти John Deere 200LC, 330LC, 370 125 - Boom Cylinder Guard 3344 Boom

1

FFSB103280

Guard

(CONVENIENCE ASSEMBLY) (CONT AINS ALL ITEMS ON THIS PAGE)

1шт.

2

FFSB103281

Bracket

2шт.

3

FFSB103282

Bracket

1шт.

4

FFSB103283

Bracket

1шт.

5

19M7344

Cap Screw

M16 X 65

4шт.

6

19M7397

Cap Screw

M16 X 50

4шт.

7

24M7053

Washer

17 X 30 X 3 mm

8шт.

8

12M7069

Lock Washer

16 mm

8шт.

9

14M7276

Nut

M16

8шт.
