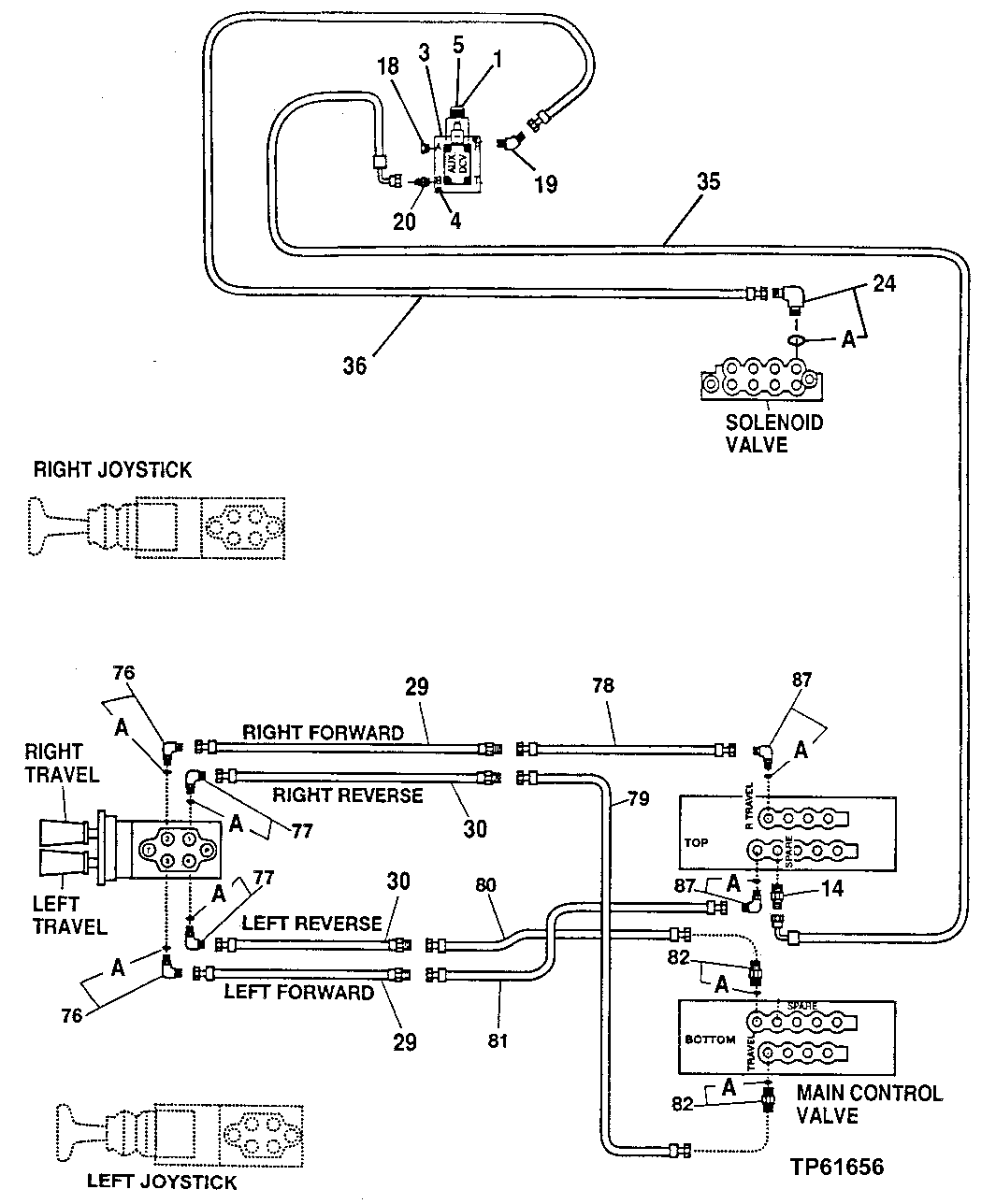

Запчасти John Deere 200LC, 330LC, 370 137 - Pilot Piping (72 Inch Rear Entry Cab - Butt-N-Top) 3360 HYDRAULIC SYSTEM

1

FFSB102545

Solenoid Valve

1шт.

3

FFSB102547

Plate

1шт.

4

19H2928

Screw

5/16" X 1-1/2" ( FFSB102 860 NO LONGER AVAILABLE)

4шт.

5

FFSB102387

Orifice

1шт.

14

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

18

AT63271

Fitting

(SUB FOR M122390, THIS APPLICATION)

1шт.

19

AN113929

Elbow Fitting

1шт.

20

R36426

Fitting

1шт.

24

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

24A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

29

FFSB102551

Hydraulic Hose

2шт.

30

FFSB102552

Hydraulic Hose

2шт.

35

FFSB102554

Hydraulic Hose

1шт.

36

FFSB102555

Hydraulic Hose

1шт.

76

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR AT204940)

2шт.

76A

M800650

Packing

1шт.

77

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

77A

M800650

Packing

1шт.

78

AT250094

Hydraulic Hose

1шт.

79

AT219679

Hydraulic Hose

1шт.

80

AT250064

Hydraulic Hose

1шт.

81

AT250093

Hydraulic Hose

1шт.

82

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

82A

CH11570

O-Ring

13.800 X 2.400 mm

2шт.

87

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

87A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.
