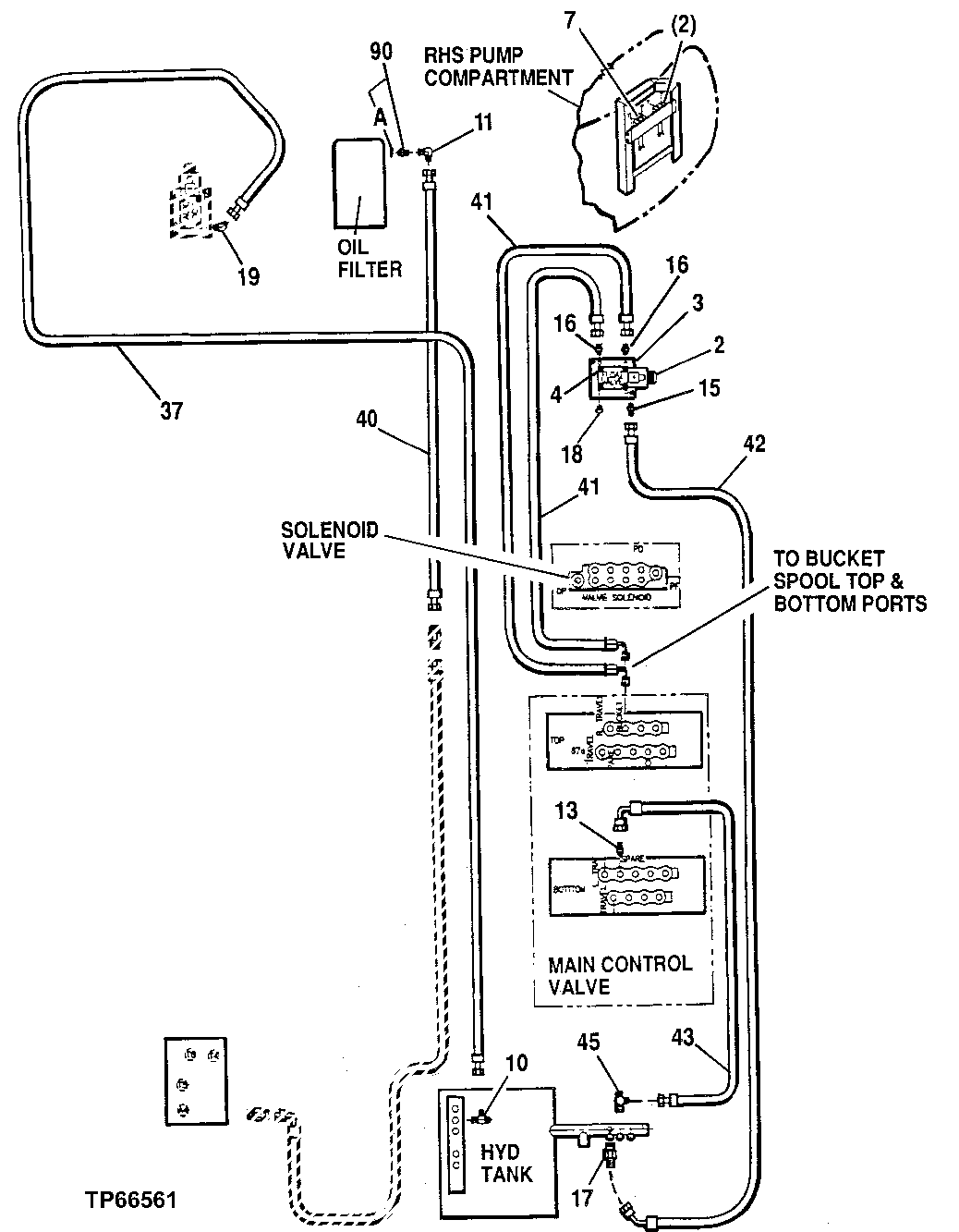

Запчасти John Deere 200LC, 330LC, 370 138 - Pilot Piping (72 Inch Rear Entry Cab - Butt-N-Top) 3360 HYDRAULIC SYSTEM

2

FFSB102546

Check Valve

1шт.

FFSB103786

Check Valve

1шт.

FFSB102546

Check Valve

1шт.

FFSB103786

Check Valve

1шт.

3

FFSB102547

Plate

1шт.

4

19H2928

Screw

5/16" X 1-1/2" ( FFSB102 860 NO LONGER AVAILABLE)

4шт.

7

FFSB102270

Plate

1шт.

10

AT36921

Tee Fitting

1шт.

11

Elbow Fitting

( AE24616 NOT REQUIRED IN THIS APPLICATION)

1шт.

13

FFSB102562

Adapter Fitting

1шт.

15

R27237

Fitting

1шт.

16

38H1171

Adapter Fitting

2шт.

17

4190243

Adapter Fitting

(SUB FOR TH106151)

1шт.

18

AT63271

Fitting

(SUB FOR M122390, THIS APPLICATION)

1шт.

19

AN113929

Elbow Fitting

1шт.

37

FFSB102556

Hydraulic Hose

1шт.

40

FFSB102237

Hydraulic Hose

1шт.

41

FFSB102557

Hydraulic Hose

2шт.

42

FFSB102558

Hydraulic Hose

1шт.

43

FFSB102559

Hydraulic Hose

1шт.

45

AE45056

Tee Fitting

1шт.

90

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

90A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.
