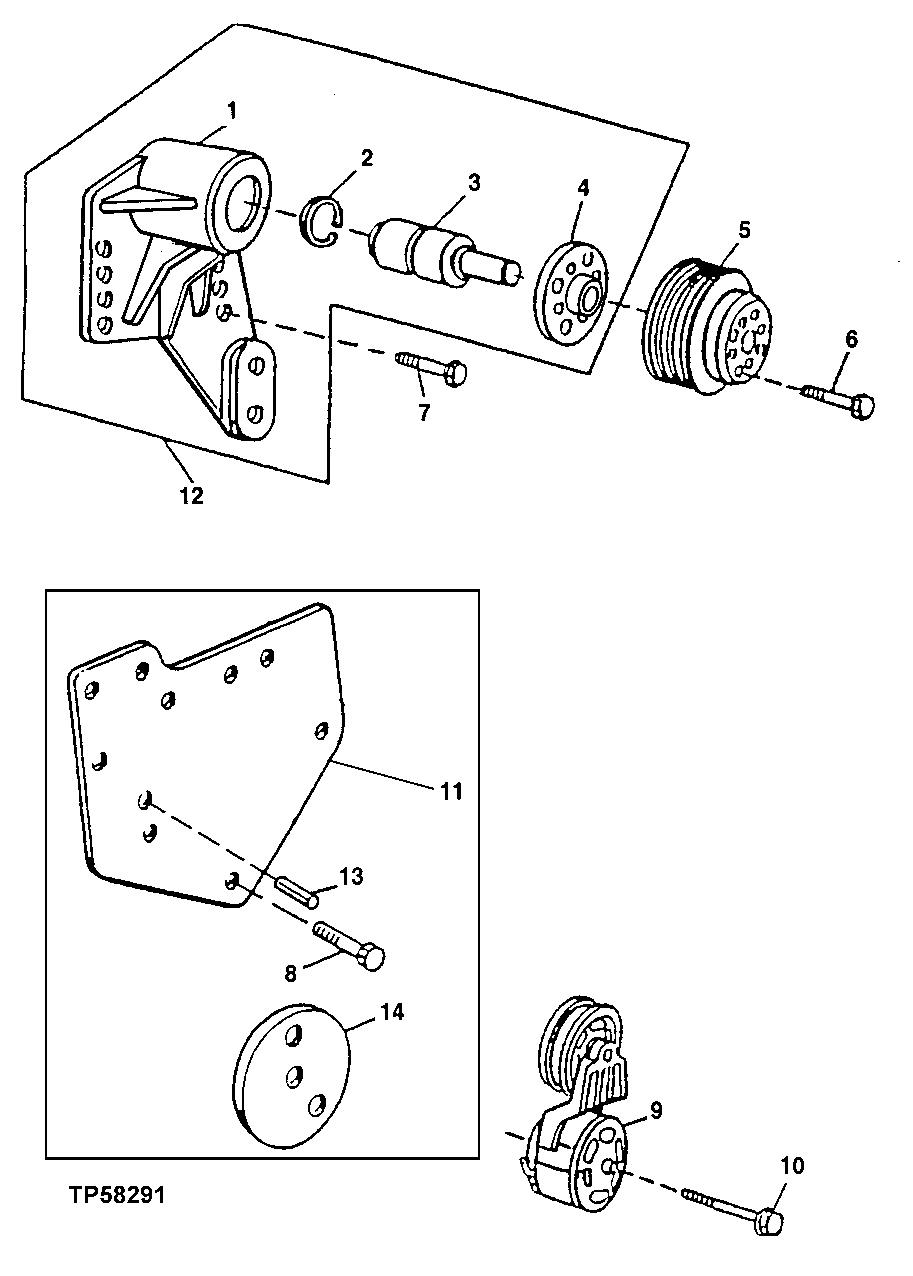

Запчасти John Deere 00LC 116 - FAN DRIVE,PULLEYS AND BELT TENSIONERS ( - 830633) 0429B Fan Drive (Damper, Idler, Pulleys, & Belt) T06068TT051 T06068TT051

1

Bearing Housing W/ Bearing

1шт.

2

E1343FN

Snap Ring

1шт.

3

Shaft

SHAFT/BEARINGS ( RE692 92 NO LONGER AVAILABLE)

1шт.

4

RE500538

Fan

(MARKED R123284)

1шт.

5

R128662

Pulley

1шт.

6

19M7784

Screw

M10 X 20

4шт.

7

19M7835

Screw

M10 X 35

4шт.

8

19M7801

Screw

M8 X 60

1шт.

9

RE70536

Belt Tensioner

1шт.

10

19M8131

Screw

M10 X 70 (SUB FOR 19M7810 AND 19M8340)

1шт.

11

R132168

Support

1шт.

12

RE500539

Bearing Housing W/ Bearing

(MARKED R500304 ) (SUB FOR RE59709)

1шт.

13

34M7061

Spring Pin

8 X 20 mm

1шт.

14

R500321

Spacer

1шт.
