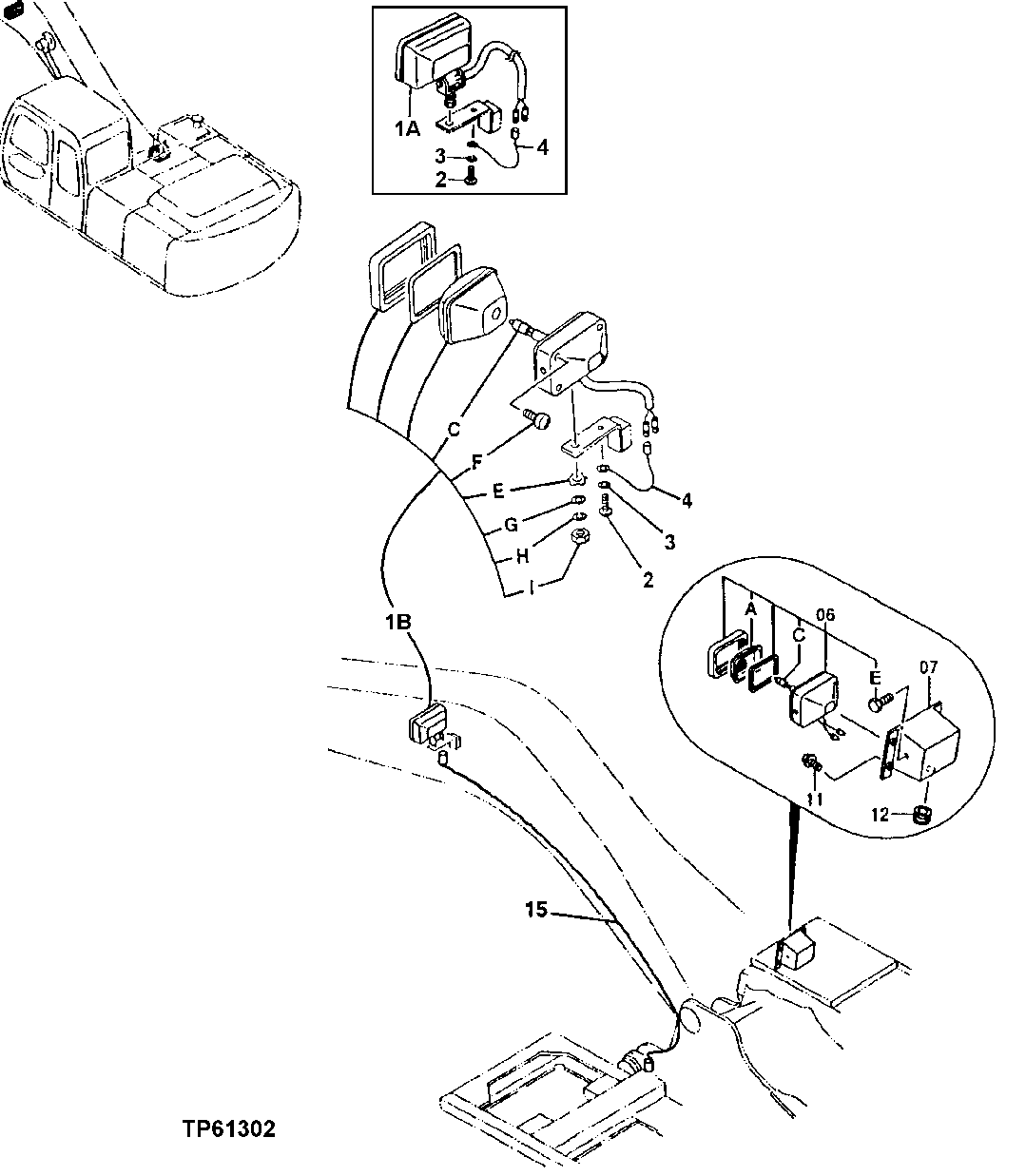

Запчасти John Deere 00LC 156 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

1A

4326800

Lamp

AT176424 NLA

1шт.

1B

4326800

Lamp

1шт.

1C

AT135758

Bulb

1шт.

1E

4307026

Washer

SUB FOR T144361

1шт.

1F

37H19

Screw

SUB FOR T144362 OR 4307027

1шт.

1G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

1H

12H317

Lock Washer

9/16"

1шт.

1I

14M7345

Nut

M14 SUB FOR J952014; SUB FOR TH103791

1шт.

2

21M7285

Screw

M6 X 12

1шт.

3

12M7006

Lock Washer

6 mm

1шт.

4

4254604

Wiring Harness

SUB FOR AT154214

1шт.

6

4274478

Headlight

SUB FOR AT154323

1шт.

6A

4285646

Lens

SUB FOR AT154988

1шт.

6C

AT135758

Bulb

SUB FOR AT154990

1шт.

6E

19M8425

Cap Screw

M6 X 16

2шт.

7

8061757

Housing

SUB FOR AT214365

1шт.

11

Washer

12M7065 NLA

4шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

12

94-2807

Grommet

SUB FOR AT122152

1шт.

15

4261621

Wiring Harness

SUB FOR AT213813

1шт.
