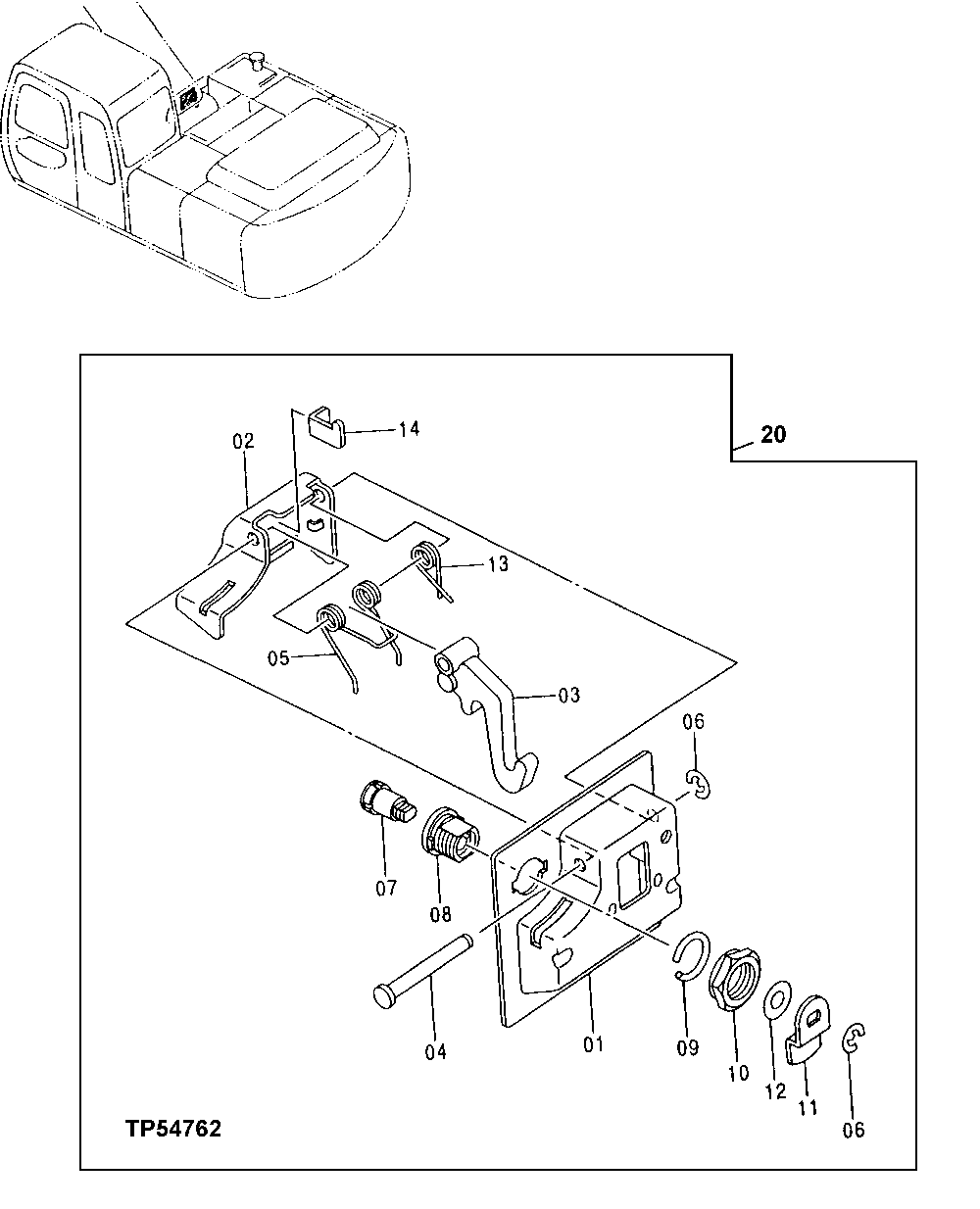

Запчасти John Deere 00LC 235 - TOOL BOX DOOR LOCK LATCH 1910 HOOD OR ENGINE ENCLOSURE

1

4370532

Cover

(SUB FOR AT214264)

1шт.

2

4370533

Latch

(SUB FOR AT214265)

1шт.

3

4370534

Lever

(SUB FOR AT214266)

1шт.

4

4370535

Pin Fastener

(SUB FOR AT214267)

1шт.

5

4370536

Spring

(SUB FOR AT214268)

1шт.

6

CH11490

Ring

2шт.

7

4370537

Cylinder

(SUB FOR AT214269)

1шт.

8

4134325

Lock

(SUB FOR TH102236)

1шт.

9

4355979

Ring

(SUB FOR TH102237, 4134322)

1шт.

10

4355980

Nut

(SUB FOR TH102238, 4134323)

1шт.

11

4370538

Catch

(SUB FOR AT214270)

1шт.

12

4370539

Washer

(SUB FOR AT214271)

1шт.

13

4355974

Torsion Spring

(SUB FOR TH102243)

1шт.

14

4370540

Lever

(SUB FOR AT214272)

1шт.

20

4363915

Latch

(SUB FOR AT215944)

1шт.
