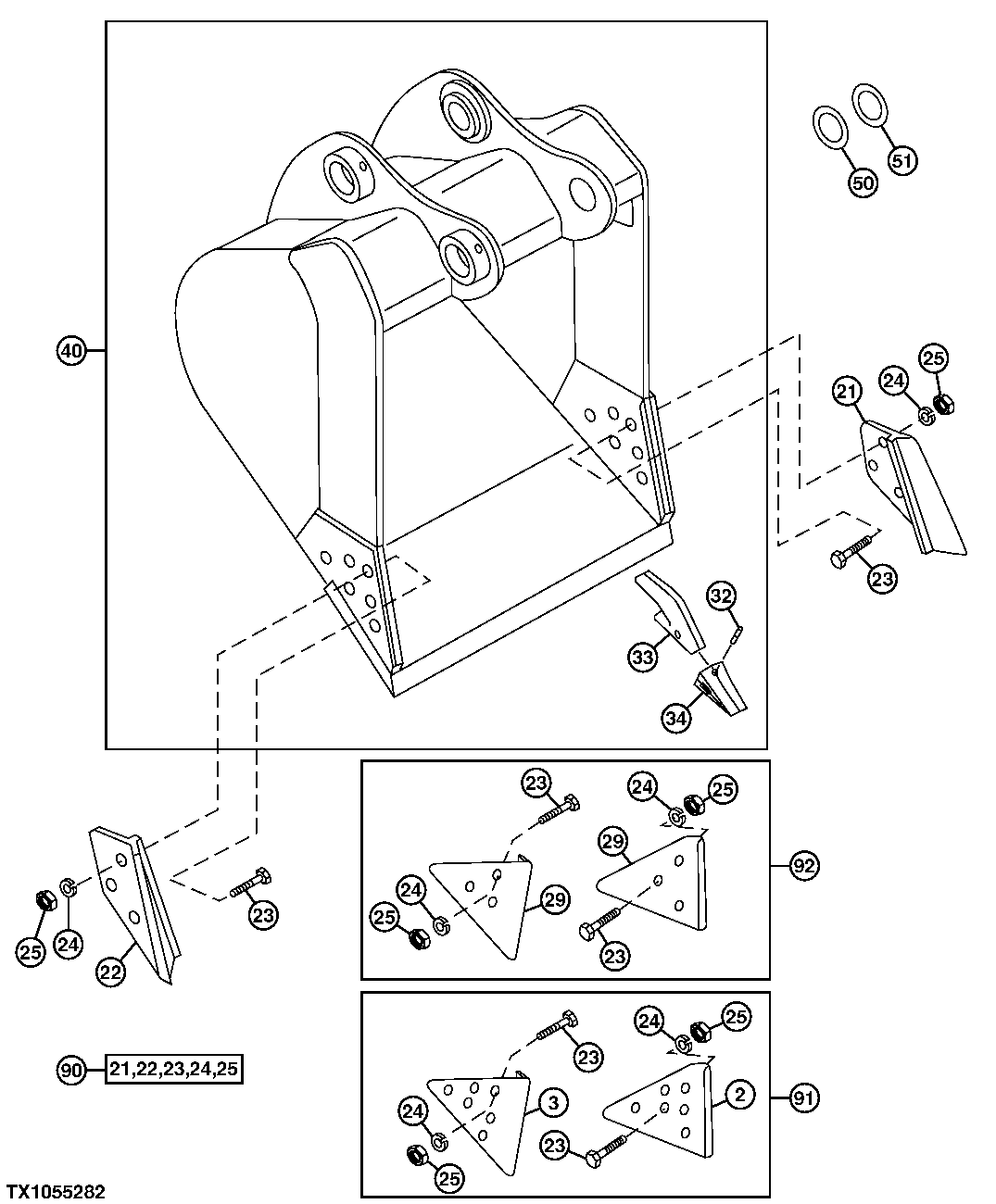

Запчасти John Deere 00LC 259 - HEAVY DUTY BUCKET 3302 BUCKET WITH TEETH

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

(WEAR)

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339128

Excavator Bucket

(WHOLEGOODS) (24 INCH - .52 CUBIC YARD) (4 TEETH) (SUB FOR AT332688)

1шт.

AT339130

Excavator Bucket

(WHOLEGOODS) (30 INCH - .71 CUBIC YARD) (4 TEETH) (SUB FOR AT332689)

1шт.

AT339132

Excavator Bucket

(WHOLEGOODS) (36 INCH - .90 CUBIC YARD) (5 TEETH) (SUB FOR AT332690)

1шт.

AT339134

Excavator Bucket

(WHOLEGOODS) (42 INCH - 1.09 CUBIC YARD) (5 TEETH) (SUB FOR AT332691)

1шт.

AT339136

Excavator Bucket

(WHOLEGOODS) (48 INCH - 1.29 CUBIC YARD) (6 TEETH) (SUB FOR AT332692)

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039") (1 MM)

ARшт.

51

T241937

Shim

(.5 MM)

ARшт.

90

AT342511

Kit

(WHOLEGOODS) (SIDE CUTTER KIT)

1шт.

91

AT342513

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (6 INCH)

1шт.

92

AT342512

Kit

(WHOLEGOODS) (EDGE PROTECTOR) (3 INCH)

1шт.
