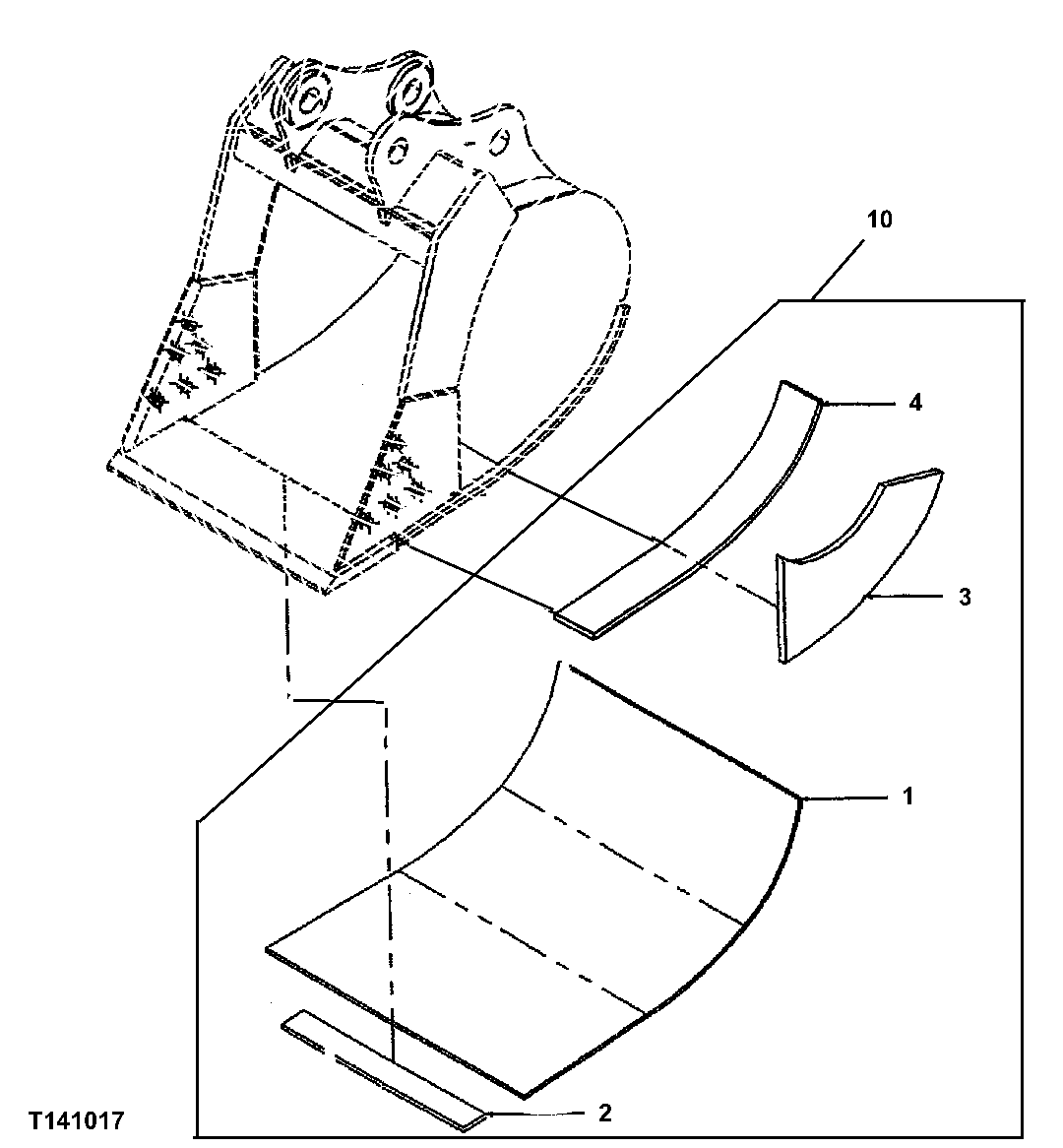

Запчасти John Deere 00LC 270 - Roadbuilder Bucket Kit (Order Heavy Duty Bucket Tooth Assemblies) 3302 BUCKET WITH TEETH

1

623269

Moldboard

(F) (USE WITH 24 INCH BUCKET)

1шт.

623270

Moldboard

(F) (USE WITH 30 INCH BUCKET)

1шт.

623271

Moldboard

(F) (USE WITH 36 INCH BUCKET)

1шт.

623272

Moldboard

(F) (USE WITH 42 INCH BUCKET)

1шт.

2

28025

Bar

(F) (HORIZONTAL WEAR BAR) (USE WITH 24 INCH BUCKET)

5шт.

28031

Bar

(F) (HORIZONTAL WEAR BAR) (USE WITH 30 INCH BUCKET)

5шт.

28037

Bar

(F) (HORIZONTAL WEAR BAR) (USE WITH 36 INCH BUCKET)

5шт.

28043

Bar

(F) (HORIZONTAL WEAR BAR) (USE WITH 42 INCH BUCKET)

5шт.

3

313114

Plate

(F)

2шт.

4

304564

Plate

(F) (OUTER WEAR BAR)

2шт.

10

Kit

( AT187249 NLA) (ALSO ORDER AT163616 24 INCH HEAVY DUTY BUCKET AND APPROPRIATE TOOTH KIT)

1шт.

Kit

( AT187250 NLA) (ALSO ORDER AT163617 30 INCH HEAVY DUTY BUCKET AND APPROPRIATE TOOTH KIT)

1шт.

Kit

( AT187251 NLA) (ALSO ORDER AT163618 36 INCH HEAVY DUTY BUCKET AND APPROPRIATE TOOTH KIT)

1шт.

Kit

( AT187252 NLA) (ALSO ORDERAT163620 42 INCH HEAVY DUTY BUCKET AND APPROPRIATE TOOTH KIT)

1шт.
