280 - Severe Duty Plate Lip Bucket Tooth Assembly (30 OR 36 Inch Bucket)

Запчасти John Deere 00LC 280 - Severe Duty Plate Lip Bucket Tooth Assembly (30 OR 36 Inch Bucket) 3302 BUCKET WITH TEETH

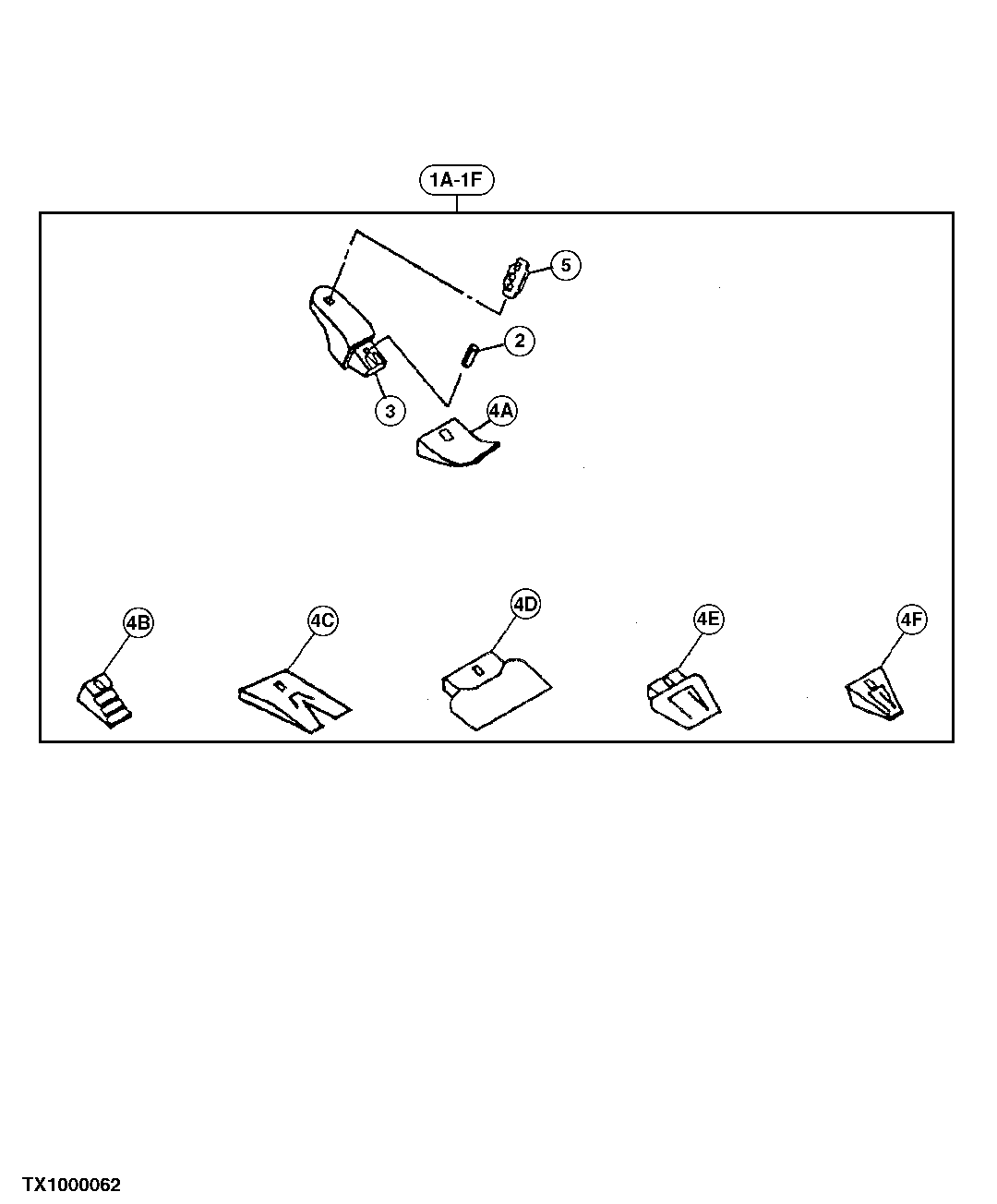

Схема запчастей John Deere 00LC - 280 - Severe Duty Plate Lip Bucket Tooth Assembly (30 OR 36 Inch Bucket) 3302 BUCKET WITH TEETH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1A

Tooth

(TOOTH) WHOLEGOODS (FANGGS) ( AT16354 8 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1B

Tooth

(TOOTH) WHOLEGOODS (STANDARD) ( AT1635 49 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1C

Tooth

(TOOTH) WHOLEGOODS (TWIN TIGER) ( AT163 553 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1D

Tooth

(TOOTH) WHOLEGOODS (FLARE) ( AT163552 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1E

Tooth

(TOOTH) WHOLEGOODS (ABRASION PANEL) ( AT1 63551 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1F

Tooth

(TOOTH) WHOLEGOODS (TIGER) ( AT163550 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1G

Tooth

(TOOTH) WHOLEGOODS (ESCO STANDARD ) (NOT ILLUSTRATED) ( AT163554 ONL Y AVAILABLE WHEN ORDERING BUCKET)

1шт.

1H

Tooth

(TOOTH) WHOLEGOODS (ESCO TWIN TIG ER) (NOT ILLUSTRATED) ( AT163557 O NLY AVAILABLE WHEN ORDERING BUCKET )

1шт.

1I

Tooth

(TOOTH) WHOLEGOODS (ESCO FLARE) (NOT ILLUSTRATED) ( AT163556 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1J

Tooth

(TOOTH) WHOLEGOODS (ESCO TIGER) (NOT ILLUSTRATED) ( AT163555 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

1K

Tooth

(TOOTH) WHOLEGOODS (CATERPILLAR REPLAC EMENT FANGGS) (NOT ILLUSTRATED) ( AT167 196 ONLY AVAILABLE WHEN ORDERING BUCKET )

1шт.

1L

Tooth

(TOOTH) WHOLEGOODS (CATERPILLAR REPLACE MENT STANDARD) (NOT ILLUSTRATED) ( AT167 197 ONLY AVAILABLE WHEN ORDERING BUCKET)

1шт.

2

TP400HD

Pin

(SUB FOR PTP400HD)

1шт.

EX37VPN

Pin

(ESCO VERTALOK) (NOT ILLUST RATED - SEE ESCO TOOTH PAGE)

1шт.

3

T802X400

Shank

(SUB FOR PT802X400)

1шт.

Bucket Tooth Adapter

( EX5856-37V NLA) (ESCO VERTALOK) (N OT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.

4A

TF400

Tooth

1шт.

4B

TX400

Tooth

1шт.

4C

TX400WT

Tooth

1шт.

4D

TX400F

Tooth

1шт.

4E

TX400AP

Tooth

1шт.

4F

TT400

Tooth

1шт.

4G

EX37SYL

Tooth

(ESCO STANDARD) (NOT ILLUSTRATED - SEE ESCO TOOTH PAGE) ( EX5824-37 NLA) (SUB FOR EX37VPL AND EX37VPN )

1шт.

4H

Tooth

EX37TVIP NLA Esco Twin Tiger Se e Esco Tooth Page Not Illustrated

1шт.

4I

Tooth

EX37S7F NLA Esco Flare See E sco Tooth Page Not Illustrated

1шт.

4J

Tooth

EX37VIP NLA Esco Tiger See E sco Tooth Page Not Illustrated

1шт.

5

EX37VPL

Plug

(NOT ILLUSTRATED - SEE ESCO TOOTH PAGE)

1шт.
