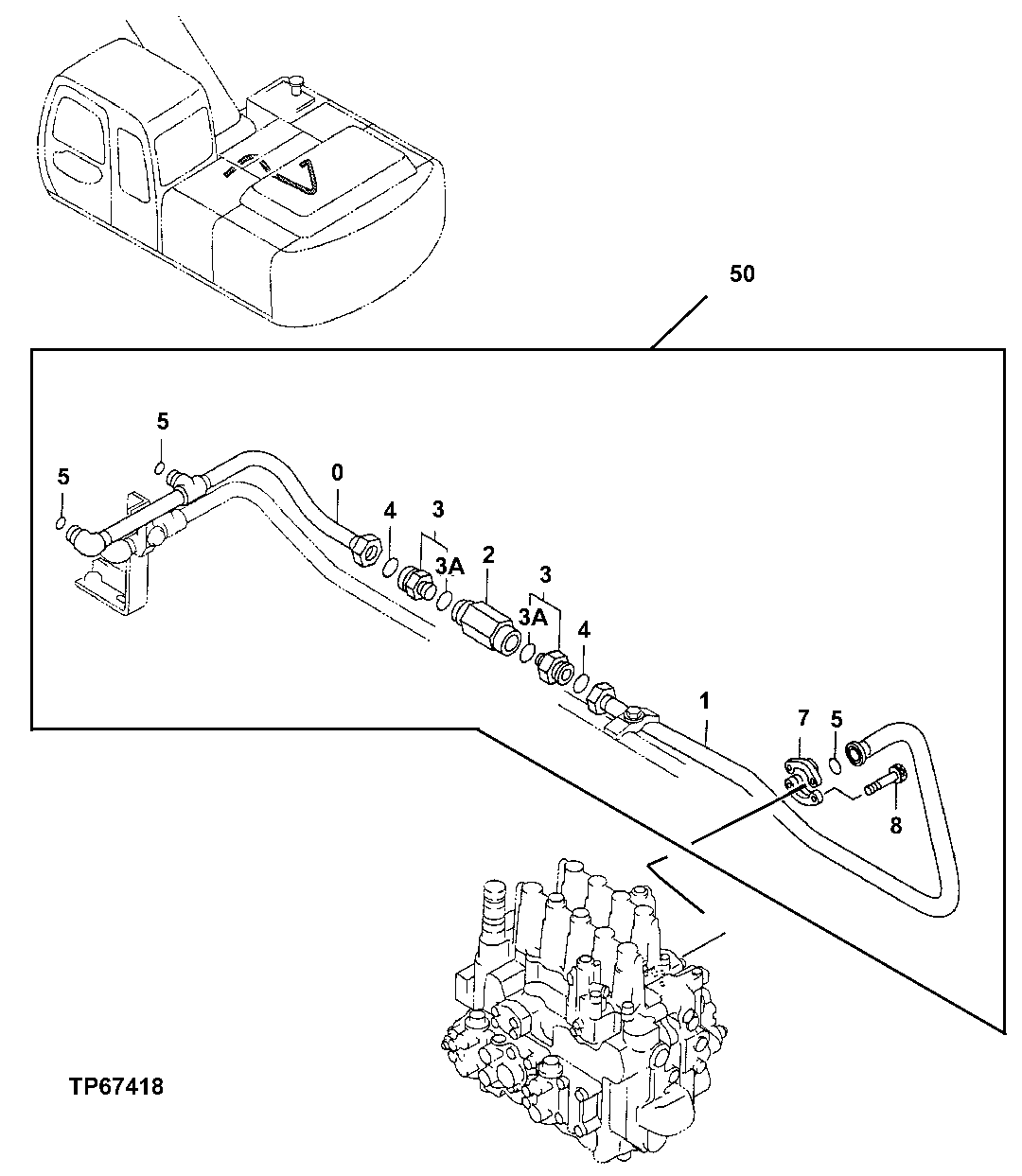

Запчасти John Deere 00LC 315 - BOOM BOTTOM PIPINGS, SUPER LONG BOOM 3360 HYDRAULIC SYSTEM

0

8066084J

Oil Line

(SUB FOR AT186483 OR 8066084)

1шт.

1

8066080

Line

(SUB FOR AT186484)

1шт.

2

9075046

Flow Control Hyd. Valve

(SUB FOR AT120774)(SLOW RETURN)

1шт.

3

4207425

Adapter Fitting

(SUB FOR TH111740)

2шт.

3A

TH101926

O-Ring

1шт.

4

T78612

O-Ring

2шт.

5

T77858

O-Ring

2шт.

6

T78313

O-Ring

1шт.

7

H61354

Flange Fitting

2шт.

8

19M7576

Screw

M10 X 30 (SUB FOR AT213614 OR J781030)

4шт.

50

Kit

WHOLEGOODS ( AT186457 NO LONGER AVAILAB LE) (LONG FRONT ASSEMBLY KIT) (ALSO ORDE R T190565, T153672, AND T153673 DECALS) (CONTAINS ALL ITEMS ON THIS PAGE - ADDI TIONAL COMPONENTS LISTED ON SEPARATE PAG ES)

1шт.
