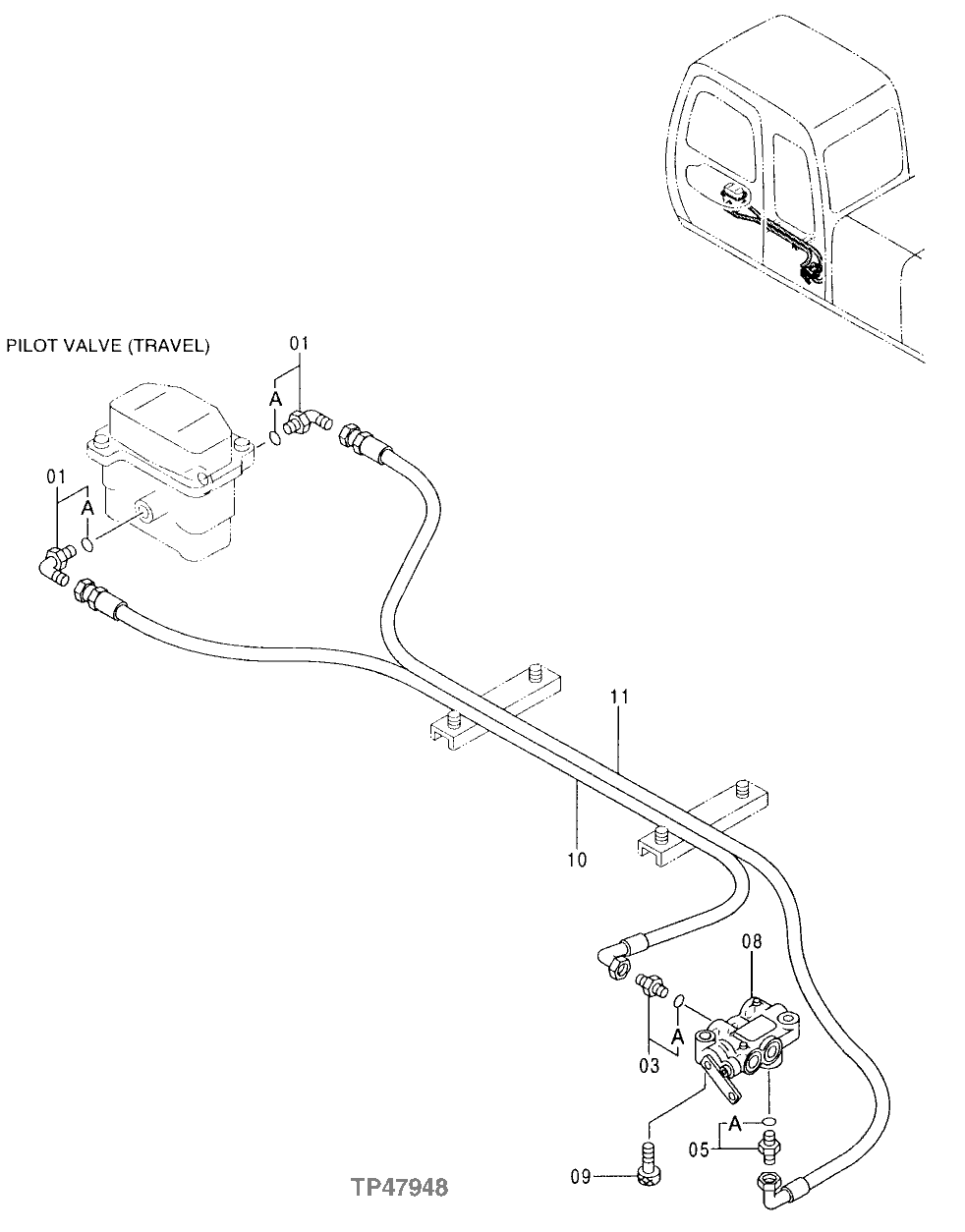

Запчасти John Deere 00LC 333 - PILOT PIPINGS ( - 050305) 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

1A

M800650

Packing

1шт.

3

4261938

Fitting

(SUB FOR AT154285)

1шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4334827

Flow Control Hyd. Valve

(SUB FOR AT213862)

1шт.

9

J781045

Screw

(SUB FOR AT213616)

2шт.

10

AT213916

Hydraulic Hose

1шт.

11

AT213929

Hydraulic Hose

1шт.
