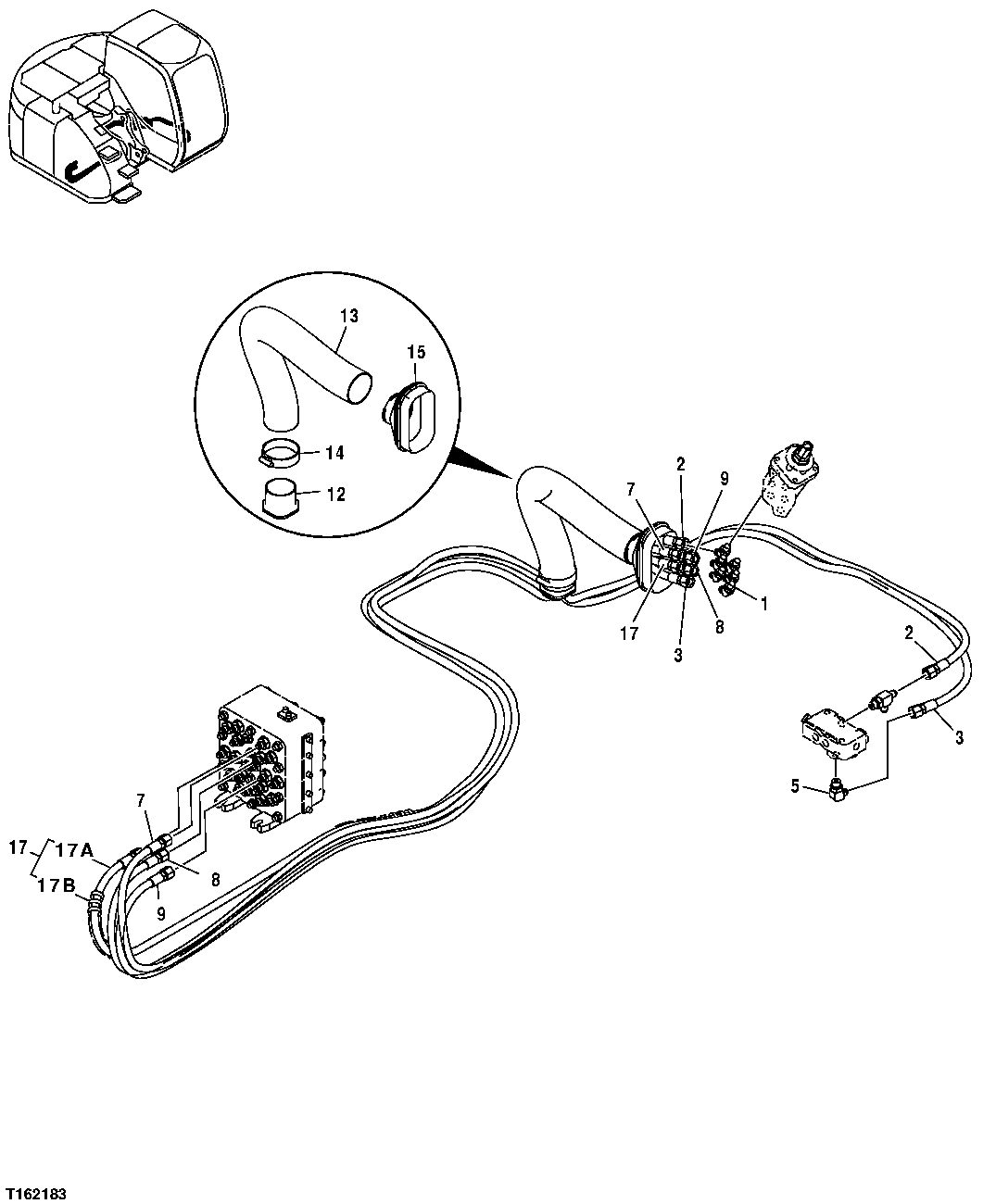

Запчасти John Deere 25CLC RTS 235 - PILOT HYDRAULIC LINES (PILOT SIGNAL MANIFOLD TO PILOT CONTROLLER) 3363 LINES, HOSES AND FITTINGS

1

A852223

Elbow Fitting

6шт.

M800650

Packing

SUB FOR 957366

1шт.

2

4437093

Hydraulic Hose

1шт.

3

4633540

Hydraulic Hose

SUB FOR 4437094

1шт.

5

A852333

Elbow Fitting

1шт.

4297380

O-Ring

SUB FOR 4622346, 4674883 OR 4509180

1шт.

7

4436316

Hydraulic Hose

1шт.

8

4436317

Hydraulic Hose

1шт.

9

4436319

Hydraulic Hose

1шт.

12

3079728

Bushing

1шт.

13

4379665

Hose

1шт.

14

4351774

Clamp

1шт.

15

2045998

Bushing

1шт.

17

Hydraulic Hose

9205129 NLA Order Individual Components

1шт.

17A

4457353

Hydraulic Hose

1шт.

17B

4327315

Hose Guard

4327293 NLA

2шт.
