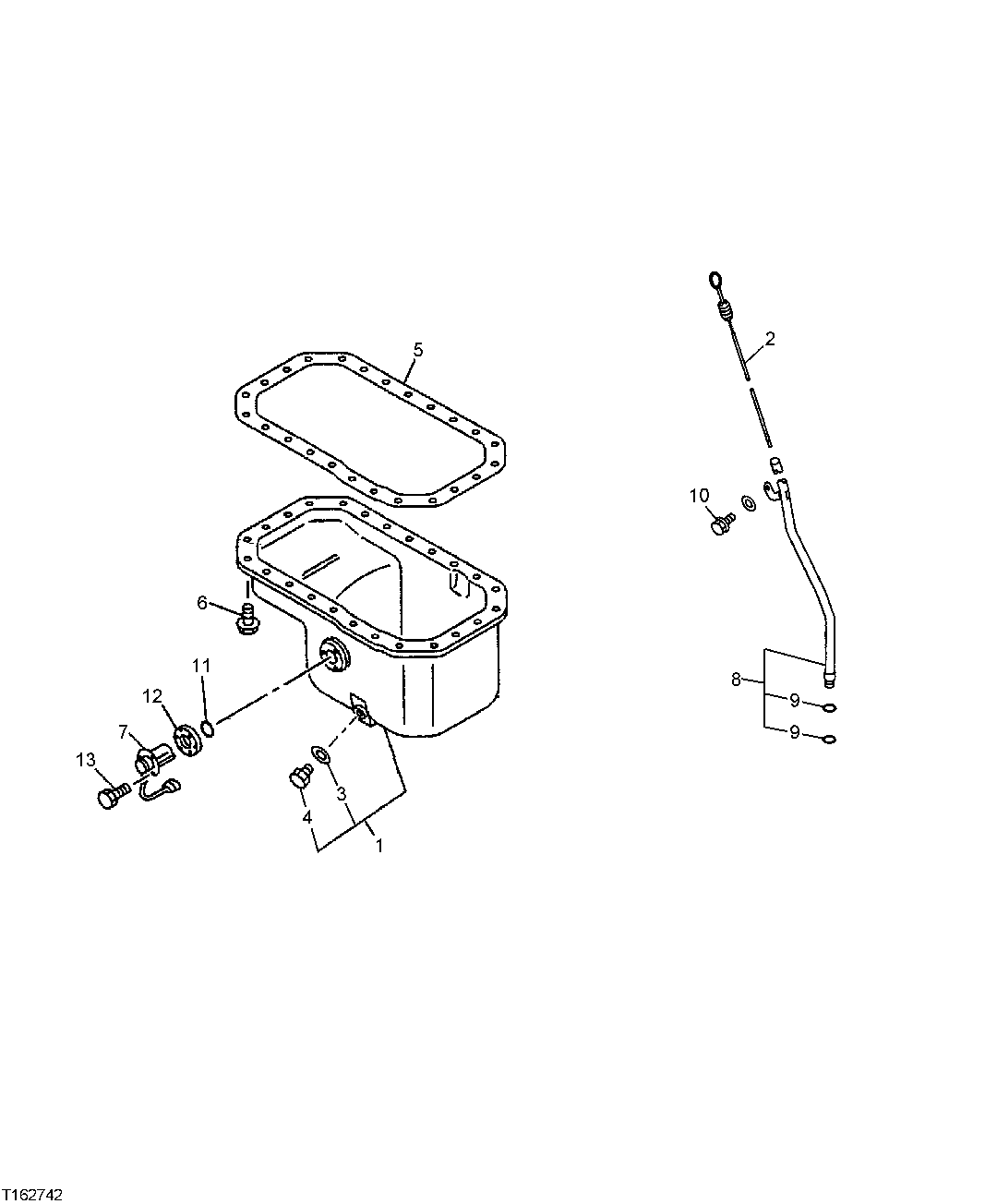

Запчасти John Deere 25CLC RTS 23 - ENGINE OIL PAN AND DIPSTICK 0407 ENGINE OILING SYSTEM

1

8973105600

Oil Pan

1шт.

2

8972321350

Dipstick

LENGTH=473MM

1шт.

3

8943993980

Gasket

SUB FOR AT254814 OR 1096231830

1шт.

4

9096620120

Pipe Plug

SUB FOR AT255027

1шт.

5

897352403X

Gasket

1шт.

6

0505408180

Bolt

(SUB FOR 0500408180)M8 X 18 S UB FOR (1) 0500408180, M8 X 18

24шт.

7

8973105620

Sensor

ENGINE OIL LEVEL

1шт.

8

8970209320

Tube

1шт.

9

5096230023

Gasket

SUB FOR 5096230020

2шт.

10

8973780750

Bolt

(SUB FOR 0280808120, 8943126990 OR 8943 126991)M8 X 12 SUB FOR (1) 0280808120, ( 1) 8943126990 OR (1) 8943126991, M8 X 12

1шт.

11

8976049160

Gasket

SUB FOR 1096233550

1шт.

12

5113690720

Spacer

1шт.

13

0280806220

Bolt

3шт.
