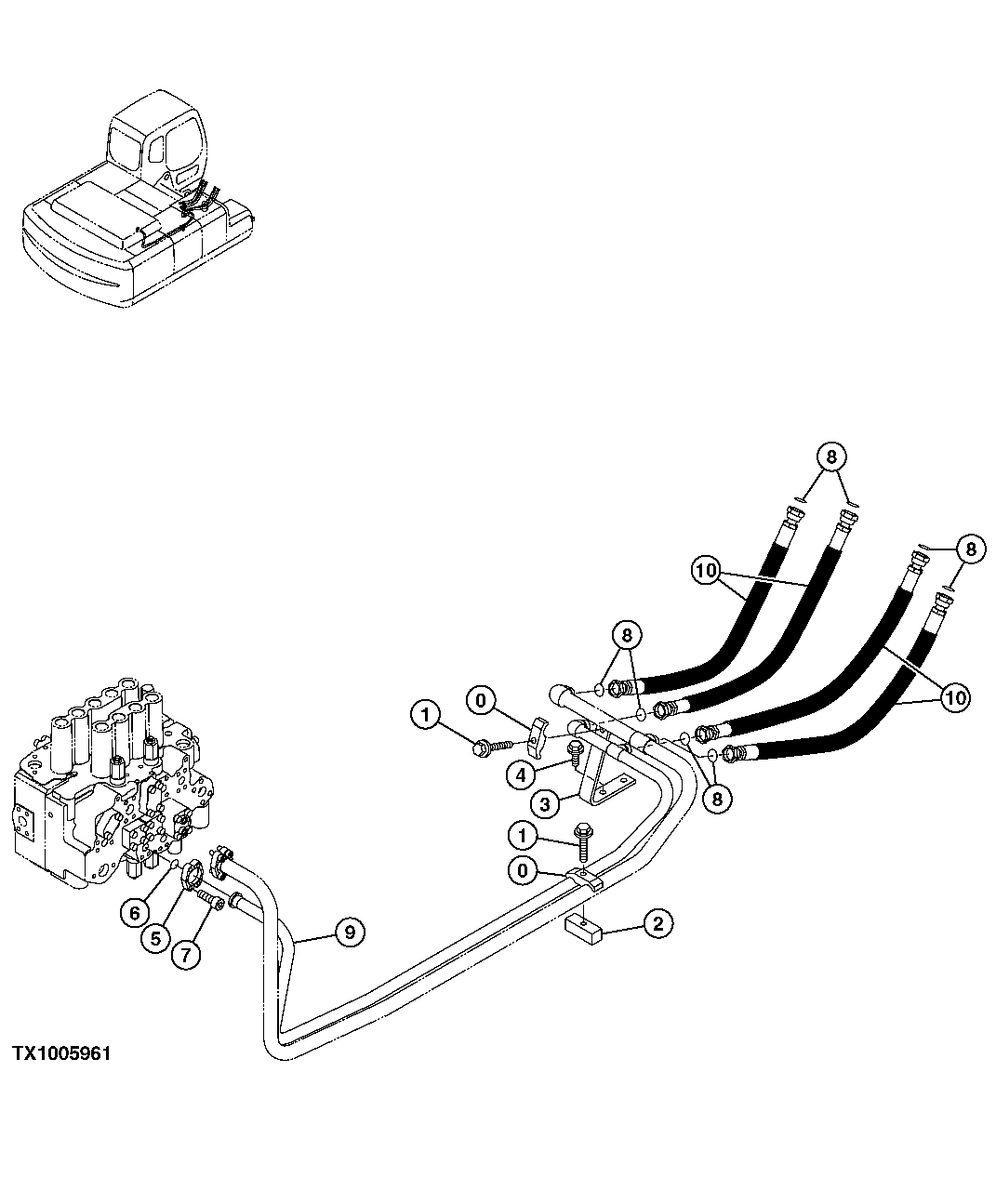

Запчасти John Deere 30CLC 277 - BOOM CYLINDER PLUMBING 3363 Lines, Hoses & Fittings

0

4153488

Clamp

(SUB FOR TH103780)

2шт.

1

19M7753

Cap Screw

M12 X 70

2шт.

2

Screw

( AT155254 NLA)

1шт.

3

9725460

Support

(SUB FOR TH109547)

1шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

5

R29424

Flange Fitting

2шт.

6

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

7

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

9

8079307

Line

(SUB FOR TH8079307)

1шт.

10

AT217836

Hydraulic Hose

4шт.
