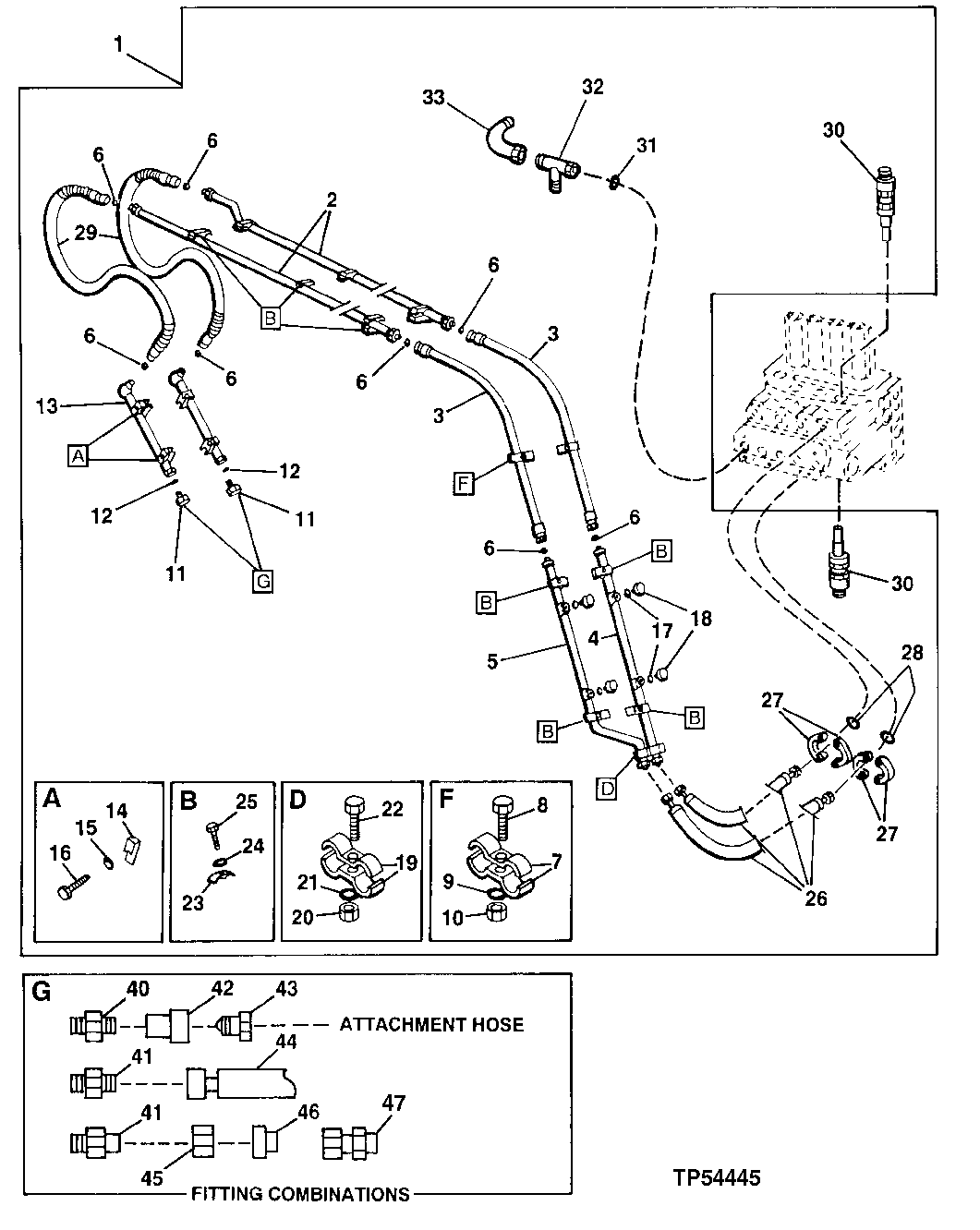

1
AT160351
Kit
(ALSO ORDER (2) AT160364 HOSES WHEN USED W ITH 2.96M STANDARD ARM) (ALSO ORDER (2) AT1 59781 HOSES WHEN USED WITH 3.61M LONG ARM)
1шт.
2
AT159786
Oil Line
2шт.
3
AT159782
Hydraulic Hose
36.5252" X 1905 mm (75") X 36.5252"
2шт.
4
AT159785
Oil Line
1шт.
5
AT159805
Oil Line
1шт.
6
T76938
O-Ring
23.520 X 1.780 mm (0.926" X 0.070")
10шт.
7
4202103
Clamp
(SUB FOR TH108302)
4шт.
8
19M7361
Cap Screw
M12 X 50
2шт.
9
12H301
Lock Washer
1/2"
2шт.
10
14M7275
Nut
M12
2шт.
11
38H1151
Fitting Plug
2шт.
12
T78612
O-Ring
2шт.
13
AT159934
Oil Line
2шт.
14
4190127
Clamp
(SUB FOR TH108313)
4шт.
15
12H301
Lock Washer
1/2"
4шт.
16
19M7753
Cap Screw
M12 X 70
4шт.
17
T77858
O-Ring
18.771 X 1.778 mm (0.739" X 0.070")
4шт.
18
38H1418
Fitting
4шт.
19
4202103
Clamp
(SUB FOR TH108302)
2шт.
20
14M7275
Nut
M12
1шт.
21
12H301
Lock Washer
1/2"
1шт.
22
19M7361
Cap Screw
M12 X 50
1шт.
23
4153488
Clamp
(SUB FOR TH103780)
10шт.
24
12H301
Lock Washer
1/2"
10шт.
25
19M7753
Cap Screw
M12 X 70
10шт.
26
AT159783
Hydraulic Hose
3/4" X 1499 mm (59") X 36.5252"
2шт.
27
R29424
Flange Fitting
4шт.
28
T59014
O-Ring
24.994 X 3.531 mm (63/64" X 0.139")
2шт.
29
AT160364
Hydraulic Hose
36.5252" X 1600 mm (63") X 36.5252" (O RDER SEPARATELY - NOT INCLUDED IN AT16 0351 KIT) (USE WITH 2.96M STANDARD ARM)
2шт.
AT159781
Hydraulic Hose
36.5252" X 2000 mm (78-3/4") X 36.5252" (ORDER SEPARATELY - NOT INCLUDED IN AT 160351 KIT) (FOR USE WITH 3.61M LONG ARM )
2шт.
30
4282718
Pressure Relief Valve
(SUB FOR AT155693)
2шт.
31
M800650
Packing
1шт.
32
4203485
Fitting
(SUB FOR TH109466)
1шт.
33
AH89069
Elbow Fitting
1шт.
34
H102543
Fitting
NLA Not Illustrated Shared Flo w Plug End When Hose is Attache d to Bucket Valve Control Valve
1шт.
40
38H1196
Adapter Fitting
(-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-RING
2шт.
4207425
Adapter Fitting
(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP
2шт.
38H1165
Adapter Fitting
(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING
2шт.
4267610
Adapter Fitting
(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP
2шт.
41
38H1282
Union Fitting
(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS
2шт.
42
AT117364
Hydr. Quick Coupler Socket
FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING
2шт.
AT120499
Coupling
FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING
2шт.
43
AT117365
Hydr. Quick Coupler Plug
MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING
2шт.
AT120498
Coupling
MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING
2шт.
44
X1JS78-20-16
Hose Fitting
HOSE END - STRAIGHT - 1 1/4 X 1 IN
2шт.
X1J978-20-16
Elbow Fitting
HOSE END - 90 DEG 1 1/4 X 1 IN
2шт.
45
X20BL-S
Tube Nut
ORFS (-20) 1 11/16
2шт.
46
38H1477
Reducer
ORFS (-20) TO (-12)
2шт.
47
38H1070
Fitting
(1 3/16 ORFS X 1 1/16 SAE O-RING)
2шт.
90
AT172037
Clamp
NLA, WHOLE GOODS Hydraulic Thumb Kit Contains All Components On This Page A dditional Components On Separate Pages
1шт.
