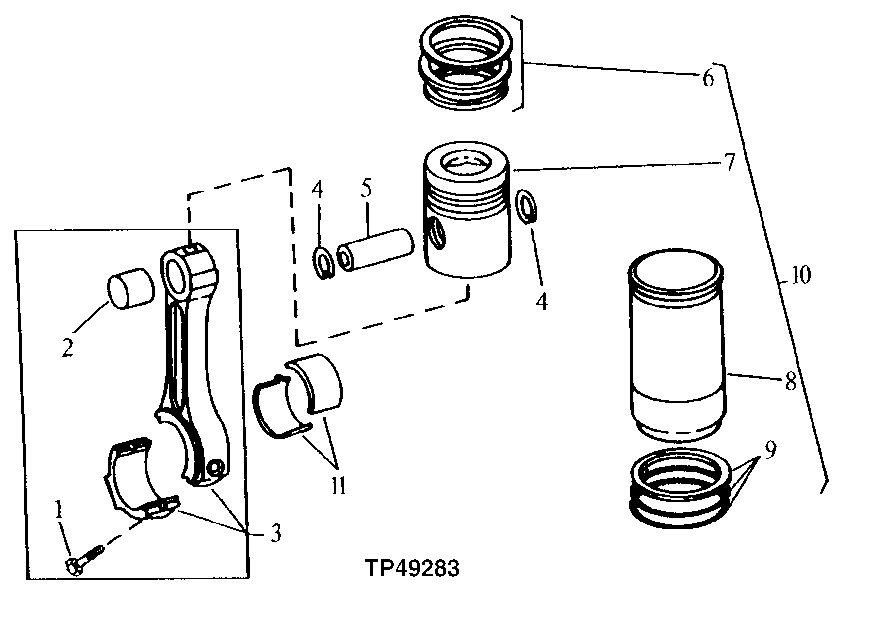

Запчасти John Deere 30LC 77 - Connecting Rod / Bearings / Piston ( - 829272) 0403B Connecting Rods And Pistons PE6068HT051 PE6068HT051

1

R501124

Screw

(SUB FOR R114083 AND R500500)

12шт.

2

R114082

Bushing

(SUB FOR R130602)

6шт.

3

RE50770

Connecting Rod

(MARKED R114081) (SUB RE500608 OR SE501093)

6шт.

SE501093

Connecting Rod Reman

(MARKED R114081) (REMAN FOR RE50770)

ARшт.

RE500608

Connecting Rod

(MARKED R500335)

6шт.

SE501094

Connecting Rod Reman

(MARKED R500335) (REMAN FOR RE500608)

ARшт.

4

R54114

Snap Ring

12шт.

5

R123177

Piston Pin

6шт.

6

RE507852

Piston Ring Kit

(SUB FOR RE66820)

6шт.

7

Piston

6шт.

8

Cylinder Liner

6шт.

9

AR65507

O-Ring Kit

Cylinder Liner

6шт.

10

RE507850

Piston-Liner Kit

PISTON WITH LINER Piston With L iner (SUB FOR RE65969 OR RE50511 2) (MARKED RE505102 OR RE55512)

6шт.

11

RE65908

Bearing

Standard

6шт.

RE65909

Bearing

010 in., Undersize

6шт.
