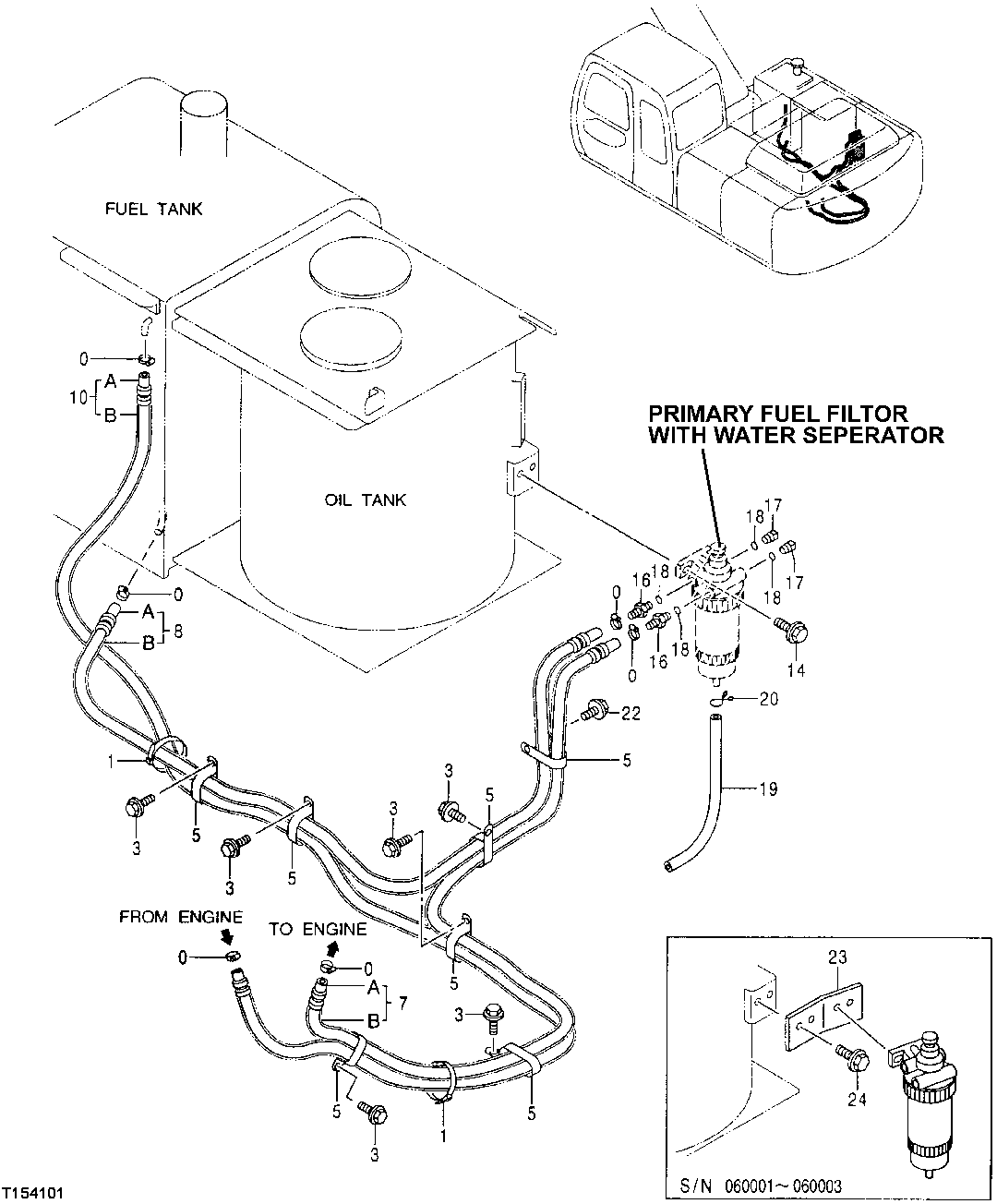

Запчасти John Deere 30LC 129 - Fuel Tank / Hoses 0560 External Fuel Supply Systems

0

TY22464

Clamp

(SUB FOR AR21836)

6шт.

1

H77698

Tie Band

2шт.

3

12M7066

Lock Washer

10 mm

6шт.

19M7938

Cap Screw

M10 X 20

6шт.

5

4190266

Clip

(SUB FOR TH108793)

7шт.

7

Hose

(NLA)

1шт.

7A

4295998

Hose

1шт.

7B

Structural Tube

(FURNISH T83427 CTL) Bulk Material

1шт.

8

Hose

(NLA)

1шт.

8A

4295998

Hose

1шт.

8B

Structural Tube

(FURNISH T83427CTL) Bulk Material

1шт.

10

Hose

(NLA)

1шт.

10A

Hose

(FURNISH TY22561 CTL) Bulk Material

1шт.

10B

Tube

(FURNISH T83427CTL) Bulk Material

1шт.

14

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

16

R65684

Fitting

2шт.

17

R82719

Fitting Plug

2шт.

18

R26286

O-Ring

10.516 X 1.829 mm (0.414" X 0.072")

4шт.

19

R126086

Hose

1шт.

20

T13254

Clamp

1шт.

22

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

23

8070179

Bracket

(SUB FOR AT218163)

1шт.

24

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.
