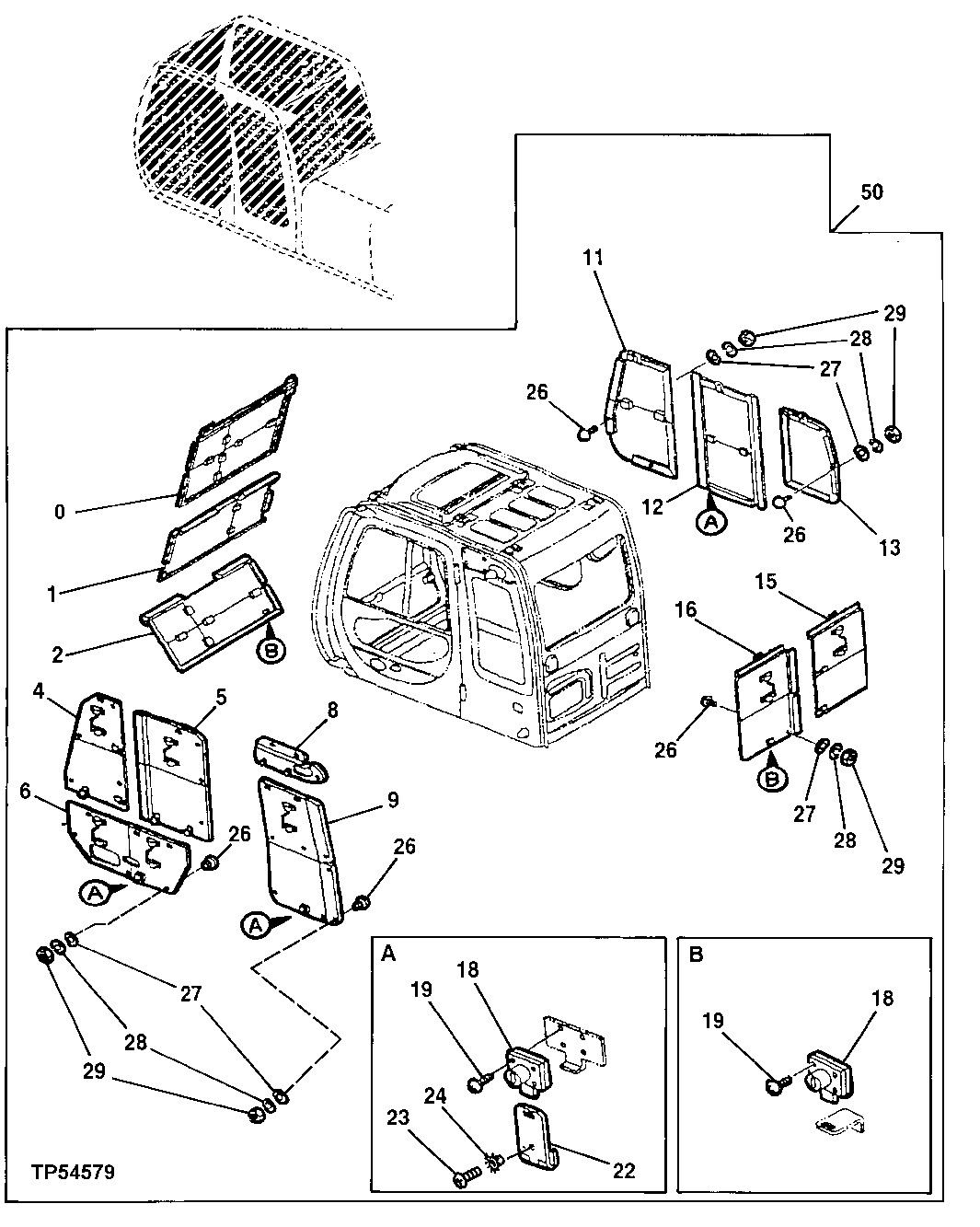

Запчасти John Deere 30LC 205 - Cab Vandal Protection 1910 Hood Or Engine Enclosure

0

AP34420

Cover

1шт.

1

AP34636

Cover

1шт.

2

AP34421

Cover

1шт.

4

7041264

Cover

(SUB FOR AP34637)

1шт.

5

7032821

Cover

(SUB FOR AP34422)

1шт.

6

AP34638

Cover

(SUB FOR 7041265)

1шт.

8

AP34423

Cover

1шт.

9

AP34639

Cover

1шт.

11

7032824

Cover

(SUB FOR AP34424)

1шт.

12

AP34640

Cover

1шт.

13

8068301

Cover

(SUB FOR AP34425)

1шт.

15

AP34652

Cover

1шт.

16

AP34426

Cover

1шт.

18

4361601

Lock

(SUB FOR AT176636)

5шт.

18A

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

19

21M7022

Screw

M5 X 20

20шт.

12M7064

Lock Washer

5 mm

20шт.

22

TH108983

Hinge

3шт.

23

21M7249

Screw

M5 X 10

6шт.

24

T205218

Washer

(SUB FOR TH111908, 4107762)

6шт.

26

9738682

Bumper

(SUB FOR AT155189)

32шт.

27

24M7027

Washer

5.300 X 10 X 1 mm

32шт.

28

12M7064

Lock Washer

5 mm

32шт.

29

14M7297

Nut

M5

32шт.

50

Field Installation Kit

( AP33356 NLA) (SUB COMPONENTS)

1шт.
