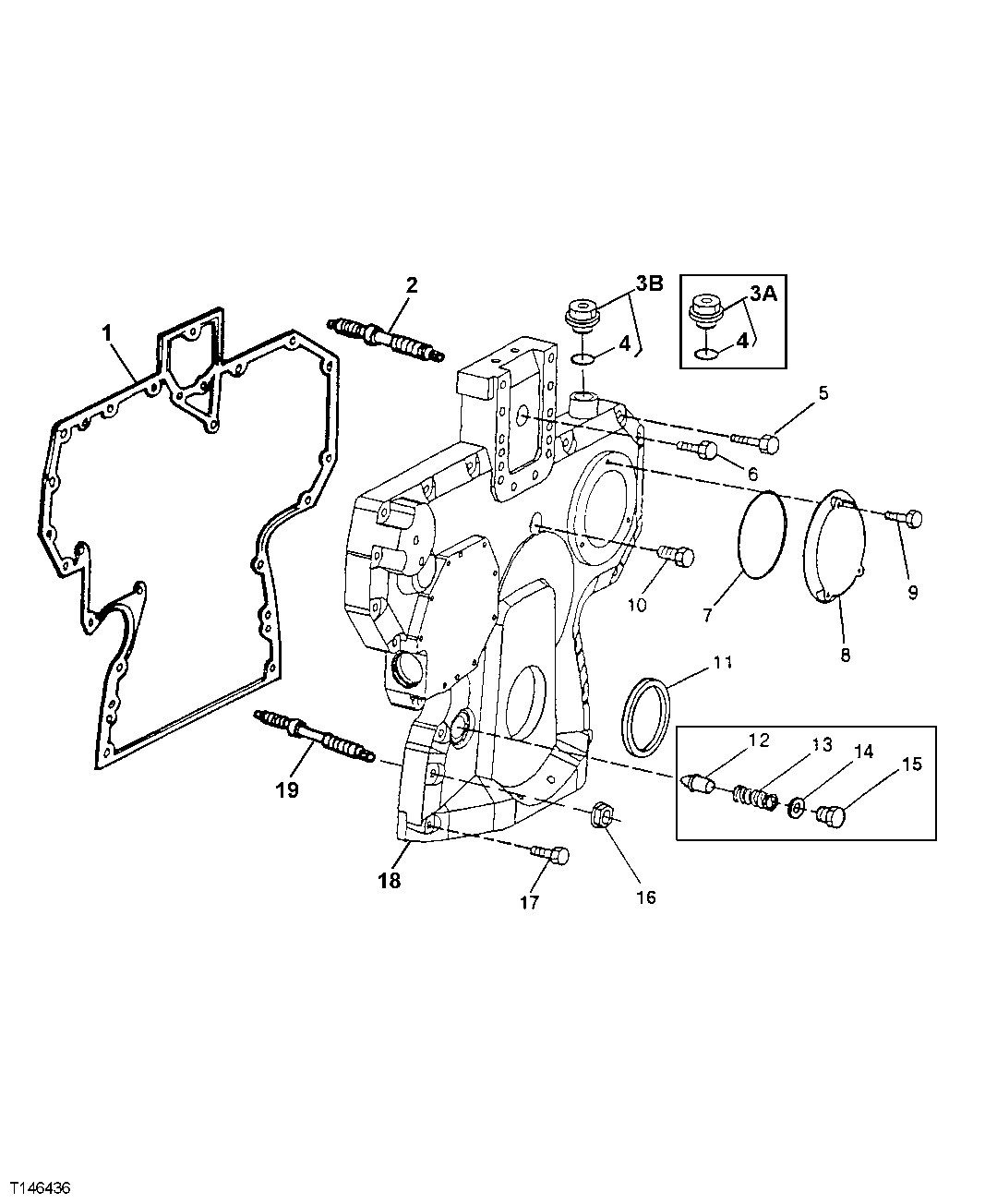

Запчасти John Deere 30LC 27 - Timing Gear Cover (046291 - 900551) 0402A Camshaft And Valve Actuating Means TO6068HT051 TO6068HT051

1

R136515

Gasket

(USE WITH R504724 OR R505461)

1шт.

R520131

Gasket

(USE WITH R520129)

1шт.

2

R134518

Stud

2шт.

3A

RE501938

Plug

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

6

19M8291

Screw

M8 X 35

1шт.

19M7801

Screw

M8 X 60

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

RE67239

Screw

1шт.

11

RE516340

Seal Kit

(MARKED RE52346 OR RE50 5515 ) (SUB FOR RE59810)

1шт.

12

R83169

Valve

1шт.

13

T27658

Spring

1шт.

14

A4827R

Washer

1шт.

15

R91692

Fitting Plug

OIL PRESSURE REGULATING

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R505461

Cover

(SUB FOR R501297, R504724 OR R5 05461 ) (SUB R520129, R520131 AN D RE515978 ) (USE WITH R136515)

1шт.

R520129

Cover

(USE WITH R520131)

1шт.

19

R123584

Stud

4шт.
