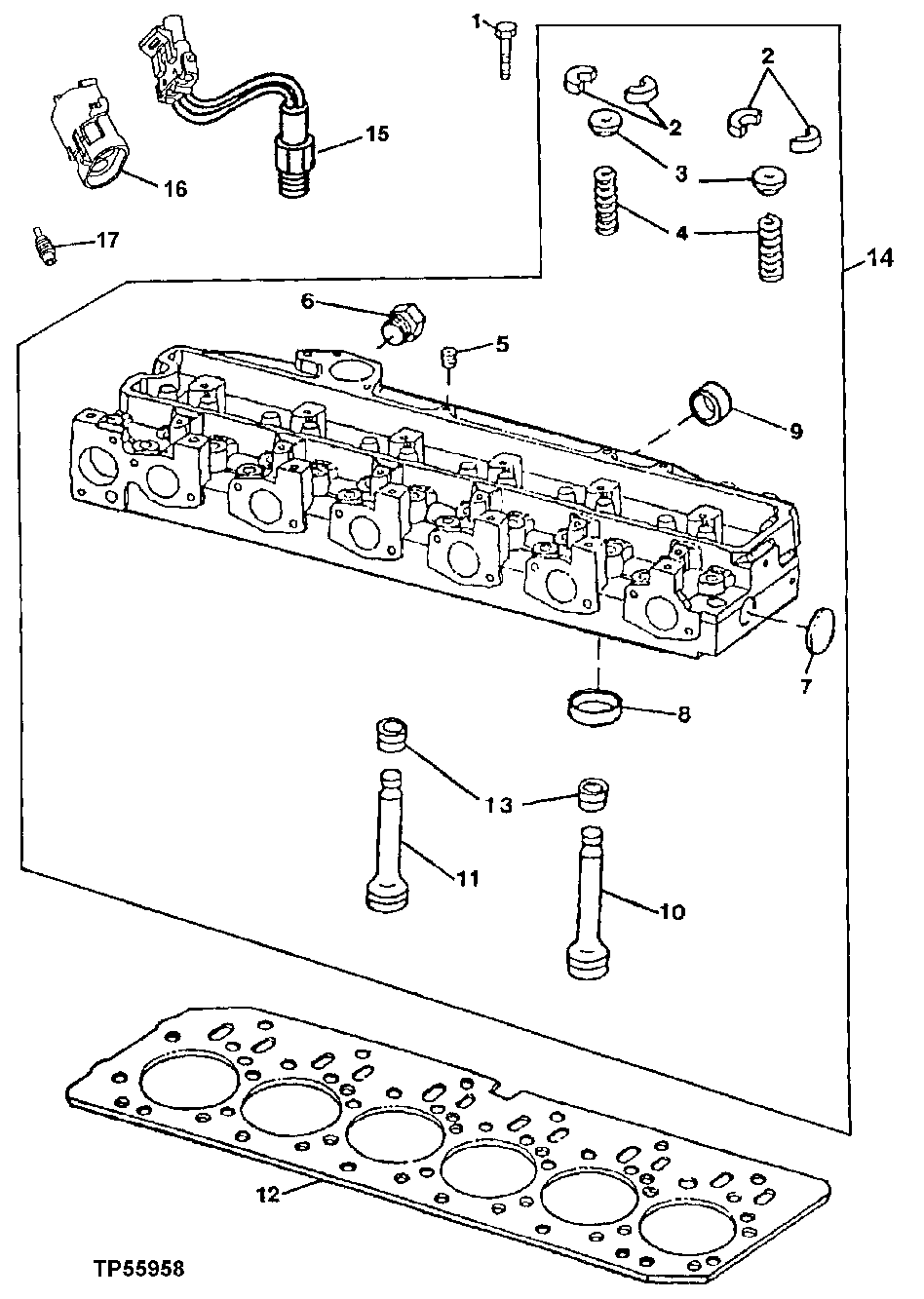

Запчасти John Deere 30LCR 81 - Cylinder Head, Head Gasket, Valves and Temperature Switch (046291 - ) 0409A Cylinder Head and Valves TO6068HT051 TO6068HT051

1

R85363

Cap Screw

26шт.

2

R91889

Retainer

24шт.

3

RE60005

Rotator

12шт.

4

R26125

Spring

12шт.

5

R104592

Pipe Plug

1шт.

6

T58477

Fitting

1шт.

R26906

O-Ring

1шт.

7

CD16284

Plug

1шт.

8

R98063

Valve Seat Insert

(STANDARD SIZE INTAKE VALVE)

6шт.

R98335

Valve Seat Insert

(OVERSIZE INTAKE VALVE)

6шт.

R85687

Valve Seat Insert

(STANDARD SIZE EXHAUST VALVE)

6шт.

R93910

Valve Seat Insert

(OVERSIZE EXHAUST VALVE)

6шт.

9

R43409

Plug

3шт.

10

R90692

Exhaust Valve

STD

6шт.

R97492

Exhaust Valve

OD +0.381MM

ARшт.

R97493

Exhaust Valve

OD +0.762MM

ARшт.

11

R98062

Intake Valve

STD

6шт.

R97490

Intake Valve

OD +0.381MM

ARшт.

R97491

Intake Valve

OD +0.762MM

ARшт.

12

R116516

Engine Cylinder Head Gasket

1шт.

13

RE31617

Seal

12шт.

14

RE57489

Cylinder Head

(MARKED R121608)

1шт.

SE501581

Cylinder Head Reman

(MARKED R121608) (REMAN FOR RE57489)

1шт.

15

AT174989

Switch

(TEMPERATURE)

1шт.

16

R78053

Electrical Connector Assy

1шт.

17

R78064

Elec. Connector Cavity Plug

1шт.
